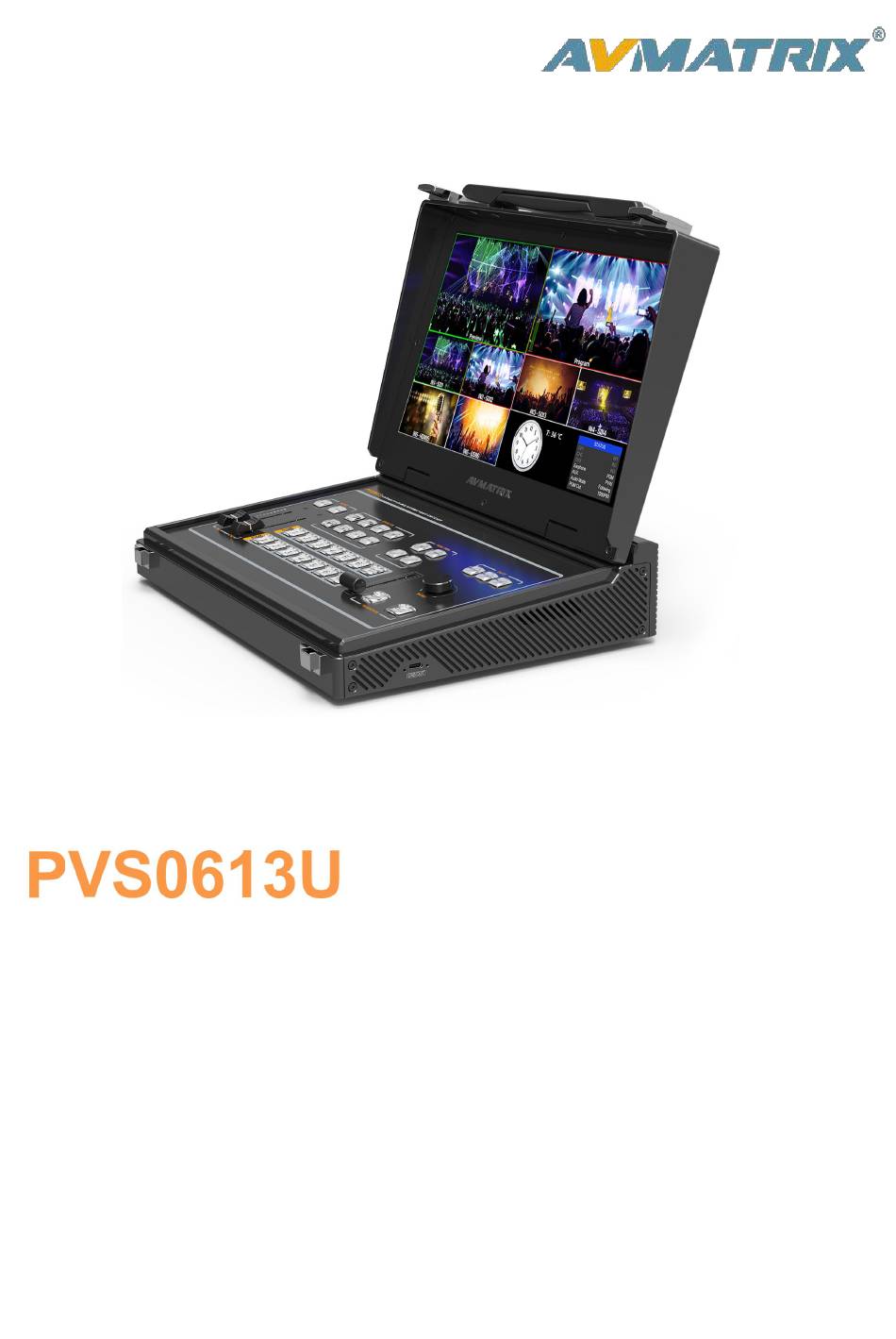

- Page 1 PORTABLE 6 CHANNEL MULTI-FORMAT STREAMING VIDEO SWITCHER...
- Page 2 USING THE UNIT SAFELY Before using this unit, please read below warning and precautions which provide important information concerning the proper operation of the unit. Besides, to assure that you have gained a good grasp of every feature of your new unit, read below manual. This manual should be saved and kept on hand for further convenient reference.
-
Page 3: Table Of Contents
CONTENTS 1. BRIEF INTRODUCTION..........................2 1.1. Overview..............................2 1.2. Main Features............................. 2 2. INTERFACES..............................2 2.1. Rear Interfaces............................3 2.2. Tally PIN Definition.............................3 3. SPECIFICATION............................4 4. FRONT CONTROL PANEL..........................5 5. OPERATION INSTRUCTION........................6 5.1. Multiview Output Layout..........................6 5.2. PGM PVW Switching..........................7 5.2.1. -
Page 4: Brief Introduction

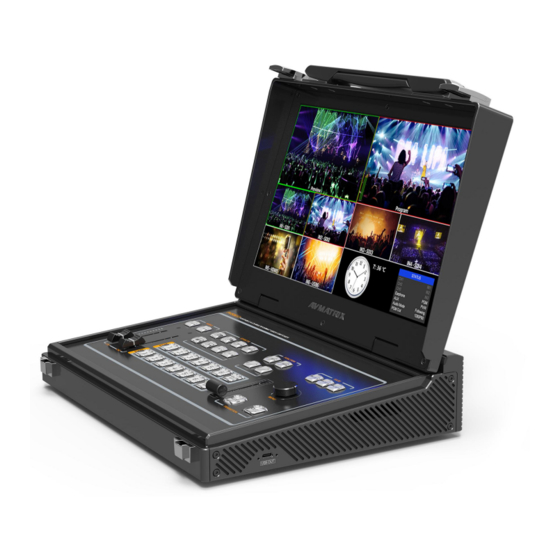

1. BRIEF INTRODUCTION 1.1. Overview PVS0613U is an all-in-one 6-channel video switcher that allows video switching, audio mixing, and different transition effects. Inputs signal is auto-detected while for PGM output can be scaled, which can be compatible with more different equipment for more flexible application. The unit also allows stream performances and presentations easily through a computer’s USB3.0 port. -
Page 5: Rear Interfaces
2.1. Rear Interfaces GPIO (for tally) HDMI PGM OUT AUDIO IN HDMI & SDI MULTIVEW OUT 3.5mm AUDIO IN/ OUT SDI PGM OUT SDI AUX OUT SDI IN Power Switch HDMI IN LAN (for update) DC 12V AUDIO OUT USB OUT (for live streaming) 2.2. -
Page 6: Specification
3. SPECIFICATION Size 13.3 inch LCD Display Resolution 1920×1080 Video Inputs 4×3G/HD/SD-SDI, 2×HDMI 1080p 60/59.94/50/30/29.97/25/24/23.98 1080psF 30/29.97/25/24/23.98 SDI Input Format 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25/24/23.98 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976 1080i 50/59.94/60 HDMI Input Format Inputs 720p 60/59.94/50/30/29.97/25/24/23.98 576i 50, 576p 50 SDI Video Rate Automatic detection, SD/HD/3G-SDI SDI Compliance SMPTE 259M/ SMPTE 292M/ SMPTE 424M... -
Page 7: Front Control Panel
RJ45 Power DC 12V, 2A Consumption ≤ 25W Operation Temperature -20℃~60℃ Storage Temperature -30℃~70℃ Operation Humidity 20%~70%RH Dimension 330×243.5×67mm Weight Warranty 2-Year Limited 1×Power Supply (DC12V 3A), Accessories Accessories 1×USB3.0 Cable Type-C to Type-A 4. FRONT CONTROL PANEL MIXER Support 2-Ch audio mixing Audio follow video mode FADE Fade transition effect... -
Page 8: Operation Instruction
Wipe transition effect Picture in Picture Fade to Black, used for emergency RATE The transition rate PVW:1-6 Selecting the signal source for Preview PGM:1-6 Selecting the signal source for Program T-BAR T-bar Manual Transition MENU Menu Setting AUTO Performs an automated switch between Program and Preview. Performs a simple immediate switch between Program and Preview. -
Page 9: Pgm Pvw Switching
The lower right corner display of the menu and status information. The CH1, CH2 are the channel selection of the 2 audio sources for audio mixer. There is a real-time Digital clock/Analog clock displayed beside the menu. 5.2. PGM PVW Switching 5.2.1. -
Page 10: Transition Control
5.3. Transition Control There are two transition control types for this video switcher: Transition without effects and Transition with effects. 1) Transition without Effects CUT performs a simple immediate switch between Preview and Program views. This is no delay seamless switching and the selected transition effect WIPE, MIX or FADE is not used. 2) Transition with Effects AUTO performs an automated switch between Preview and Program views. -
Page 11: Wipe Transition
Windows Device Manager. There will appear two new devices: • Under Imaging Devices: AVMATRIX USB Capture Video • Under Audio inputs and outputs: AVMATRIX USB Capture Audio Use a third party Video Media Player like PotPlayer, OBS, Windows Media Player to play and store the... -
Page 12: Menu Setting
6. MENU SETTING 6.1. SDI PGM/ AUX and Multiview Output Format The output format of multiview is fixed at 1080p60, and for PGM output can be set by the knob. Except PVW and PGM output, there is a AUX for choice, you can quickly select the auxiliary output between PVW and PGM via Menu knob. -
Page 13: Pip Mode
6.3. PIP Mode When press PIP, there will be a small image display on the top left corner of PVW window as following image. And the menu will enter an interface as below image. The window size, position and border of PIP can be set from menu. -
Page 14: Network Settings
Connect video switcher to a PC and download a time control software from AVMATRIX official website www.avmatrix.net/download/ Open the software and click Scan to search and connect the device, then the clock time will be changed to same time to the PC’s time.
