AVMATRIX VS0601U Quick Start Manual

Mini 6 channel multi-format streaming video switcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

MINI 6 CHANNEL MULTI-FORMAT
STREAMING VIDEO SWITCHER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS0601U and is the answer not in the manual?

Questions and answers

Related Manuals for AVMATRIX VS0601U

Summary of Contents for AVMATRIX VS0601U

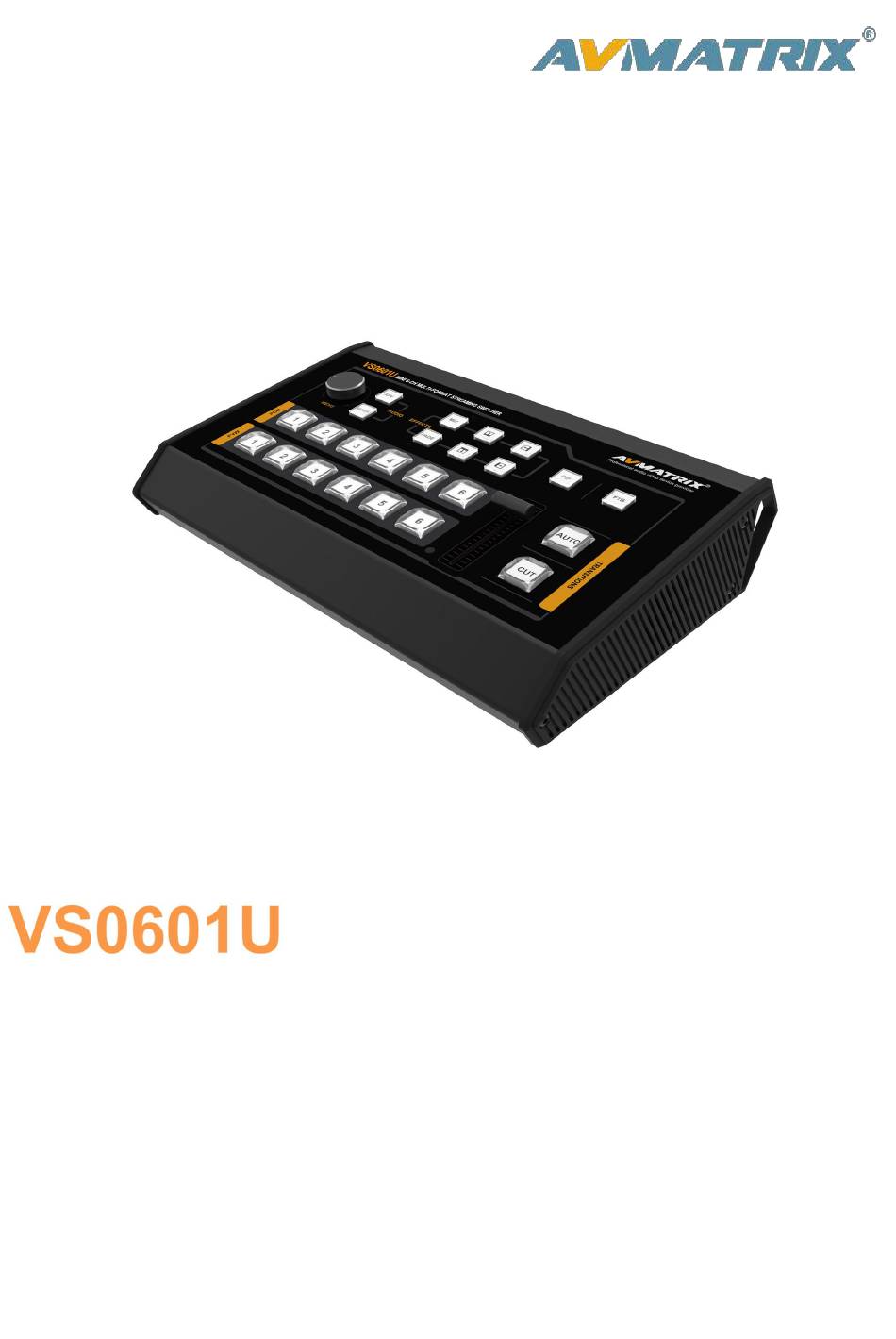

  • Page 1 MINI 6 CHANNEL MULTI-FORMAT STREAMING VIDEO SWITCHER...
  • Page 3 USING THE UNIT SAFELY Before using this unit, please read below warning and precautions which provide important information concerning the proper operation of the unit. Besides, to assure that you have gained a good grasp of every feature of your new unit, read below manual. This manual should be saved and kept on hand for further convenient reference.

  • Page 5: Table Of Contents

    CONTENTS 1. BRIEF INTRODUCTION..........................2 1.1. Overview..............................2 1.2. Main Features............................. 2 2. INTERFACES..............................3 2.1. Rear Interfaces............................3 2.2. Tally PIN Definition.............................3 3. SPECIFICATION............................4 4. FRONT CONTROL PANEL..........................5 5. OPERATION INSTRUCTION........................6 5.1. Multiview Output Layout..........................6 5.2. PGM PVW Switching..........................7 5.2.1.

  • Page 6: Brief Introduction

    1. BRIEF INTRODUCTION 1.1. Overview VS0601U is a miniature design metal housing 6-channel SDI/HDMI multi-format video switcher that allows video switching, audio mixing, and different transition effects. Inputs signal is auto-detected while for PGM output can be scaled, which can be compatible with more different equipment for more flexible application.

  • Page 7: Interfaces

    2. INTERFACES 2.1. Rear Interfaces 2.2. Tally PIN Definition LAN (for update) 3.5mm AUDIO IN/ OUT AUDIO OUT AUDIO IN HDMI PGM OUT HDMI &SDI MULTIVEW OUT SDI AUX OUT SDI PGM OUT SDI IN HDMI IN DC 12V Power Switch SDI AUX OUT(for PVW/PGM) USB OUT (for live streaming) GPIO (for tally)

  • Page 8: Specification

    3. SPECIFICATION Video Inputs 4×3G/HD/SD-SDI, 2×HDMI 1080p 60/59.94/50/30/29.97/25/24/23.98 1080psF 30/29.97/25/24/23.98 SDI Input Format 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25/24/23.98 625i 50 PAL, 525i 59.94 NTSC 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976 1080i 50/59.94/60 HDMI Input Format Inputs 720p 60/59.94/50/30/29.97/25/24/23.98 576i 50, 576p 50 SDI Video Rate Auto detection, SD/HD/3G-SDI SDI Compliance SMPTE 259M/ SMPTE 292M/ SMPTE 424M...

  • Page 9: Front Control Panel

    Power DC 12V, 1.8A Consumption ≤ 22W Operation Temperature -20℃~60℃ Storage Temperature -30℃~70℃ Operation Humidity 20%~70%RH Dimension 330×243.5×67mm Weight Warranty 2-Year Limited 1×Power Supply (DC12V 2A), Accessories Accessories 1×USB3.0 Cable Type-C to Type-A 4. FRONT CONTROL PANEL PVW:1-6 Selecting the signal source for Preview. PGM:1-6 Selecting the signal source for Program MENU...

  • Page 10: Operation Instruction

    FADE Fade transition effect Mix transition effect Wipe transition effect Picture in Picture Fade to Black, used for emergency AUTO Performs an automated switch between Program and Preview. Performs a simple immediate switch between Program and Preview. T-bar T-bar Manual Transition 5.

  • Page 11: Pgm Pvw Switching

    The lower right corner display of the menu and status information. The CH1, CH2 are the channel selection of the 2 audio sources for audio mixer. There is a real-time Digital clock/Analog clock displayed beside the menu. 5.2. PGM PVW Switching 5.2.1.

  • Page 12: Transition Control

    5.3. Transition Control There are two transition control types for this video switcher: Transition without effects and Transition with effects. 1) Transition without Effects CUT performs a simple immediate switch between Preview and Program views. This is no delay seamless switching and the selected transition effect WIPE, MIX or FADE is not used. 2) Transition with Effects AUTO performs an automated switch between Preview and Program views.

  • Page 13: Wipe Transition

    Windows Device Manager. There will appear two new devices: • Under Imaging Devices: AVMATRIX USB Capture Video • Under Audio inputs and outputs: AVMATRIX USB Capture Audio Use a third party Video Media Player like PotPlayer, OBS, Windows Media Player to play and store the...

  • Page 14: Menu Setting

    6. MENU SETTING 6.1. SDI PGM/ AUX and Multiview Output Format The output format of multiview is fixed at 1080p60, and for PGM output can be set by the knob. Except PVW and PGM output, there is a AUX for choice, you can quickly select the auxiliary output between PVW and PGM via Menu knob.

  • Page 15: Pip Mode

    6.3. PIP Mode When press PIP, there will be a small image display on the top left corner of PVW window as following image. And the menu will enter an interface as below image. The window size, position and border of PIP can be set from menu.

  • Page 16: Network Settings

    Connect video switcher to a PC and download a time control software from AVMATRIX official website www.avmatrix.net/download/ Open the software and click Scan to search and connect the device, then the clock time will be changed to same time to the PC’s time.
