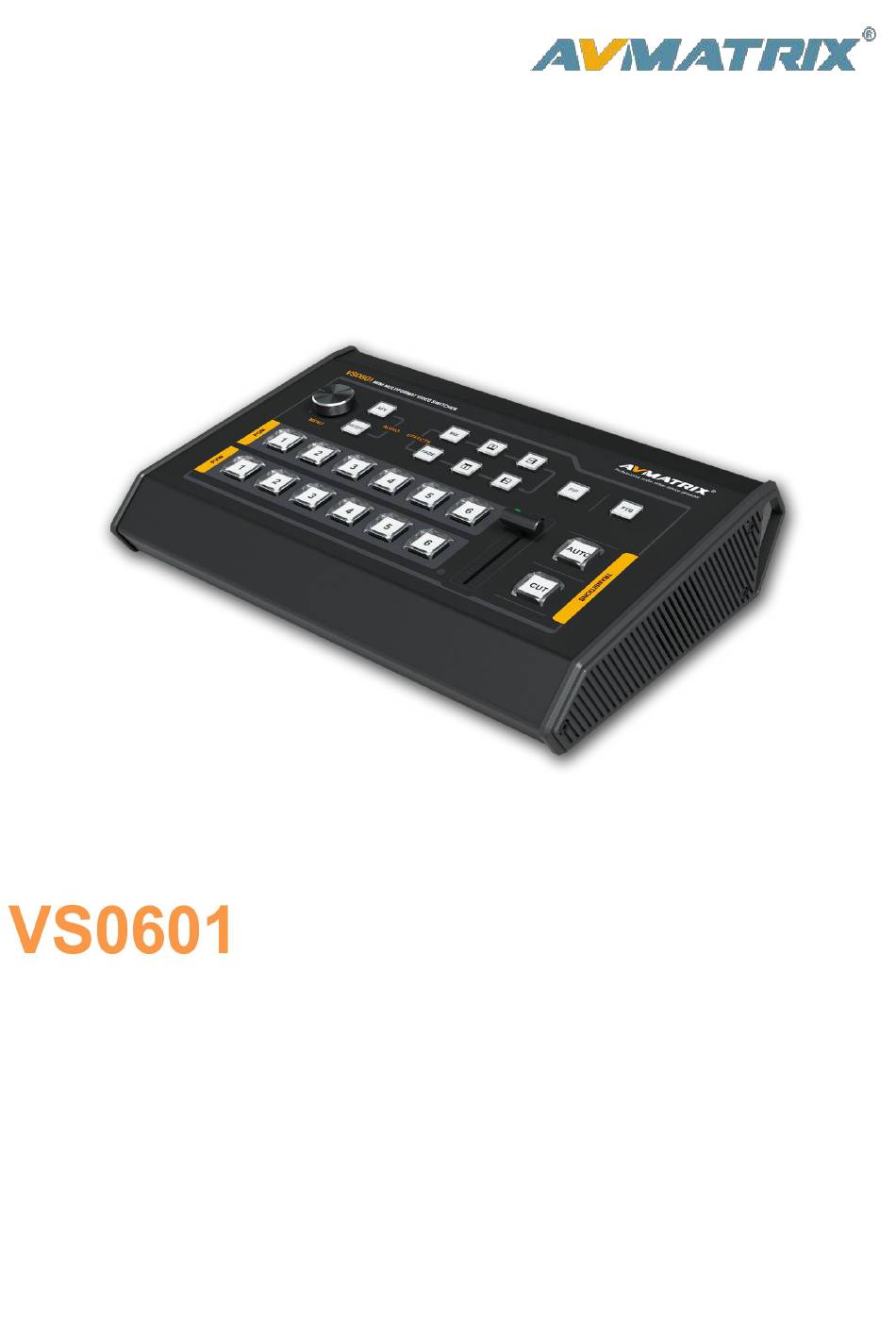

- Page 1 MINI MULTI-FORMAT VIDEO SWITCHER...
- Page 2 USING THE UNIT SAFELY Before using this unit, please read below warning and precautions which provide important information concerning the proper operation of the unit. Besides, to assure that you have gained a good grasp of every feature of your new unit, read below manual. This manual should be saved and kept on hand for further convenient reference.
-
Page 3: Table Of Contents
CONTENT 1. BRIEF INTRODUCTION..........................1 1.1. Overview..............................1 1.2. Main Features............................1 2. INTERFACES..............................2 2.1. Rear Interfaces............................2 2.2. Tally PIN Definition.............................2 3. SPECIFICATION............................3 4. FRONT CONTROL PANEL..........................4 5. MENU SETTING............................5 5.1. SDI PGM/AUX and Multiview Output Format..................5 5.2. Audio Setting............................5 5.2.1. -
Page 4: Brief Introduction

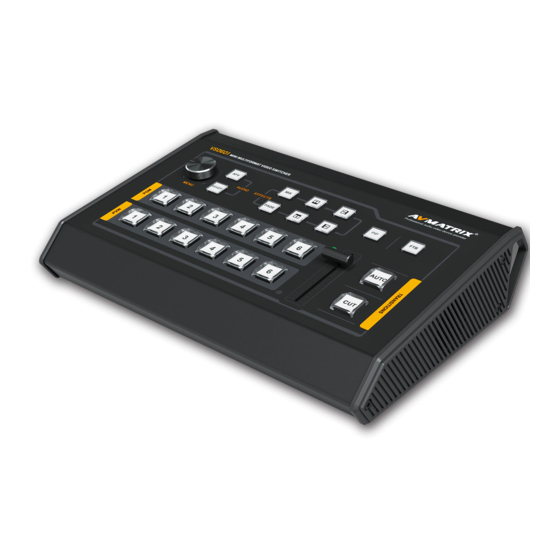

BRIEF INTRODUCTION 1.1. Overview VS0601 is a miniature design metal housing 6-channel SDI/HDMI multi-format video switcher that allows video switching, audio mixing, and different transition effects. Inputs signal is auto-detected while for PGM output can be scaled, which can be compatible with more different equipment and more flexible. With cost effective price, it will be your perfect choice for various events production applications etc. -
Page 5: Interfaces
2. INTERFACES 2.1. Rear Interfaces GPIO (for tally) LAN (for update) 3.5mm AUDIO IN/OUT AUDIO OUT AUDIO IN HDMI PGM OUT HDMI &SDI MULTIVEW OUT SDI AUX OUT SDI PGM OUT SDI IN HDMI IN DC 12V Power Switch 2.2. Tally PIN Definition Definition Definition PGM-IN1... -
Page 6: Specification
3. SPECIFICATION Video Inputs 4×3G/HD/SD-SDI, 2×HDMI 1080p 60/59.94/50/30/29.97/25/24/23.98 1080psF 30/29.97/25/24/23.98 SDI Input Format 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25/24/23.98 625i 50 PAL, 525i 59.94 NTSC 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976 1080i 50/59.94/60 Inputs HDMI Input Format 720p 60/59.94/50/30/29.97/25/24/23.98 576i 50, 576p 50 SDI Video Rate Auto detection, SD/HD/3G-SDI SDI Compliance SMPTE 259M/ SMPTE 292M/ SMPTE 424M... -
Page 7: Front Control Panel
FRONT CONTROL PANEL PVW:1-6 Selecting the signal source for Preview. PGM:1-6 Selecting the signal source for Program MENU Menu Setting MIXER Support 2-ch audio mixing Audio follow video mode FADE Fade transition effect Mix transition effect Wipe transition effect Picture in Picture Fade to Black, used for emergency situation AUTO Performs an automated switch between Program and Preview. -
Page 8: Menu Setting
5. MENU SETTING 5.1. SDI PGM/AUX and Multiview Output Format The output format of multiview is fixed at 1080p60, and for PGM output can be set by the knob. Except PVW and PGM output, there is a AUX for choice, you can quickly select the auxiliary output between PVW and PGM via Menu knob. -
Page 9: Pip
5.3. PIP Press PIP button the menu will enter into an interface as below image. The window size, position and border of PIP can be set from menu. 6. MAIN MENU SETTING When STATUS menu is not selected, press the MENU button to enter into main menu directly. In case one of the item is selected(see below), rotate the MENU button rotate anticlockwise to exit the choice, then press the MENU button to enter into main menu. -
Page 10: Clock Time Setting
6.1.3. Clock Time Setting Connect video switcher to a PC and download a time control software from AVMATRIX official website www.avmatrix.net/download/ Open the software and click Scan to search and connect the device, then the clock time will be changed to same time to the PC’s time.
