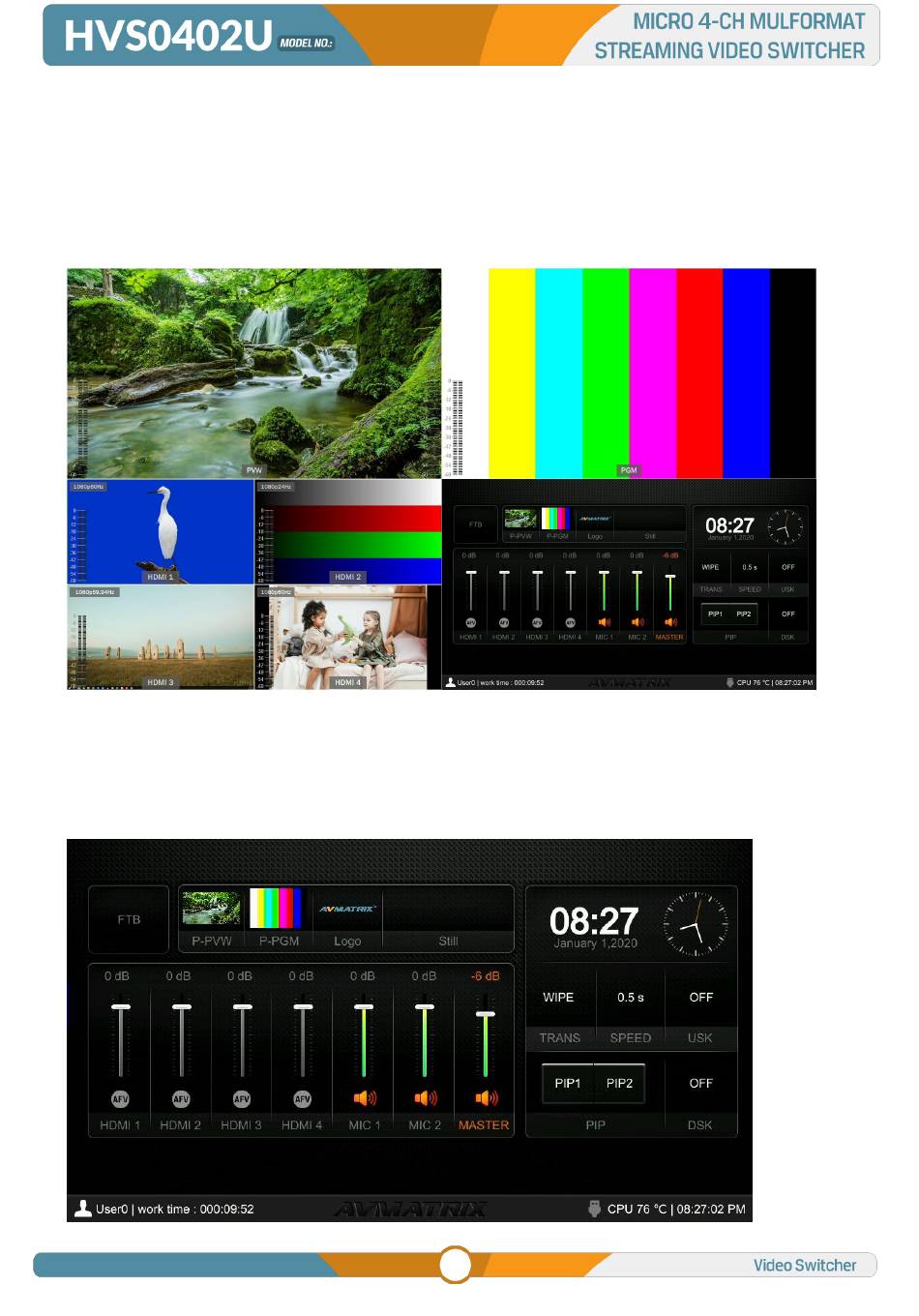

6. MULTIVIEW

The switcher has two HDMI outputs (PGM/Multiview). The two HDMI ports are both the AUX out that user
can define it as output of HDMI 1/ HDMI 2/ HDMI 3/ HDMI 4/ PGM/ Clean PGM/ PVW/ Color Bar/
Multiview (Refer to part 11). Connecting the HDMI Multiview out to an additional monitor, user will get the
multiview image. In the Multiview there are windows of PVW, PGM, HDMI 1, HDMI 2, HDMI 3, HDMI4 and
Status/Menu page. See below image.

6.1. Status Page

In the status page, there are status information of FTB (Fade to Black), P-PVW (Pattern in PVW row),
P-PGM (Pattern in PGM row), Logo, Still, Audio, Transition Effect, Transition Speed, USK (UpstreamKey),
DSK (DownstreamKey), and System Time. See below image.
