Console Left Side Panel - Integra SELECTOR Operator's Manual

Console Left
Side Panel
1 Irrigation pump
2 Aspiration Filter
connection port
3 Pinch valve
4 Footswitch socket

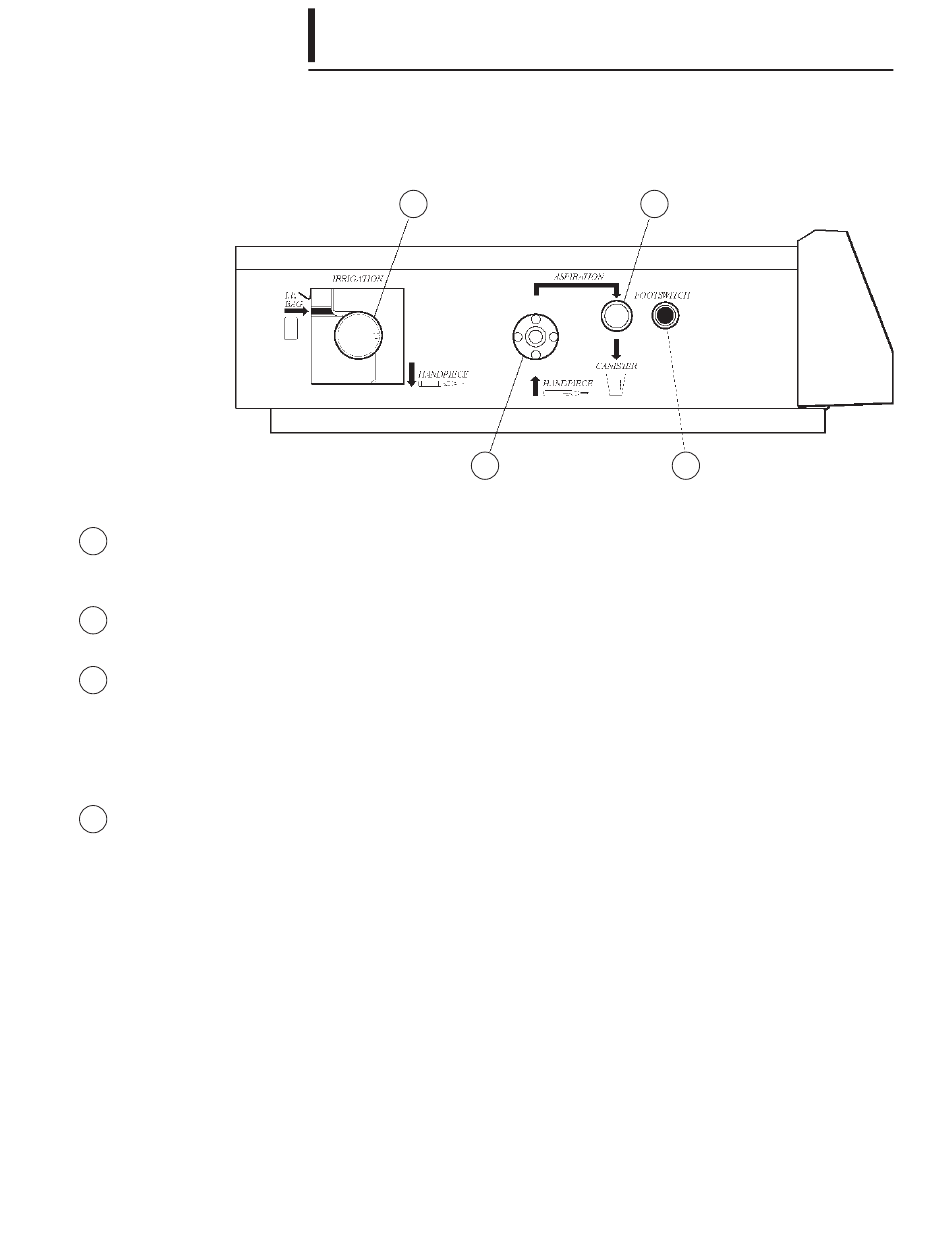

The components and connection points on the left side panel are illustrated and
described below.
1
A peristaltic pump which clamps into place across the irrigation tube of the disposable
tubing set to pump irrigant from the I.V. fluid container to the handpiece. The direction
of tubing connections to the pump are illustrated on the side panel label.
A port into which the aspiration filter is fitted to the disposable tubing. Push firmly
to connect the aspiration tube to the aspiration control system.
A normally open valve through which the aspiration tube is routed before connection
to the suction system. This valve closes momentarily when the 'POWER' pedal
on the footswitch is released to shut off the suction and facilitate the release
of tissue from the tip of the handpiece. In addition, the valve closes when the
'IRRIGATE' pedal is depressed, thus stopping aspiration. The valve reopens when
the 'IRRIGATE' pedal is released.
A keyed socket which will accept the plug attached to the footswitch cord. This
socket features a small red dot which should be aligned with the similar red dot on
the plug of the footswitch cord before pushing the plug into the socket.
