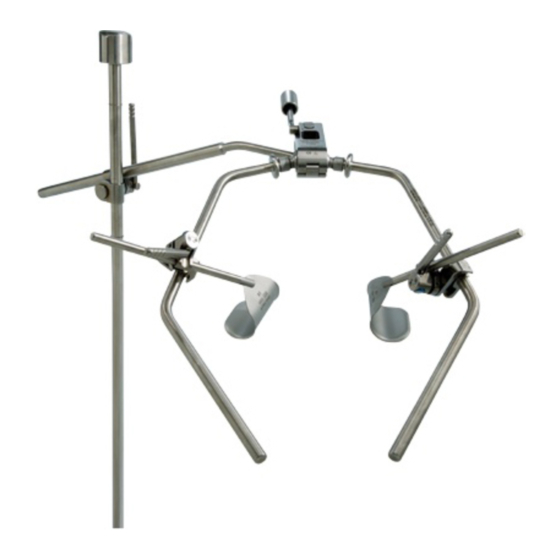

- Page 1 Integra Omni‐Tract ® ® ® ® Speed‐Tract® Segmented Ring Frame ® Instructions for use ...
- Page 2 Segmented Ring Frame 1 2 1. To connect the segments of the ring insert the 2. Segments should all be secured before attaching screws into the open end of the frame segment. the ring to the system support arm. Once in place secure the segments by tightening the screw clockwise. 3 Caution: 3. To reposition the ends of the segmented ring Do not forcibly try to remove the entire screw from loosen the screw by turning them counter clockwise. the frame segments. There is a retaining ring added Move frame end to the appropriate position and to make sure the screw stays in position and does not tighten in place by following step number 1 above. get misplaced. ...
- Page 3 Tel: +33 (0) 4 37 47 59 10 , USA ©2020 Integra, the Integra logo, Omni-Tract and Speed-Tract are registered trademarks of Integra LifeSciences Corporation or its subsidiaries in the United States and/or other countries. ©2020 Integra LifeSciences Corporation. All rights reserved. 40-9030 Rev AAA 2020-09 1512329-2...
