FOX II T/R DP 4K • Setup Guide

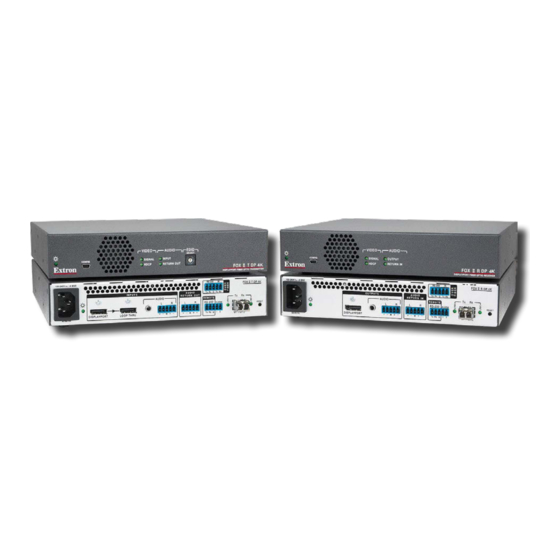

This guide provides quick start instructions for an experienced installer to set up and operate the Extron FOX II T/R DP 4K fiber optic
extenders.
WARNING:
These units output continuous invisible light, which may be harmful to the eyes; use with caution. For additional
safety, plug the attached dust caps into the optical transceivers when the fiber optic cable is unplugged.
CLASS 1 LASER PRODUCT, see the FOX II T/R DP 4K User Guide, at www.extron.com.
AVERTISSEMENT :
pour les yeux, à utiliser avec précaution. Branchez les protections contre la poussière dans l'ensemble émetteur/récepteur lorsque
le câble fibre optique est débranché.
Produit laser de classe 1

Installation

Step 1 — Mounting
Turn off or disconnect all equipment power
sources and mount the transmitter as required.
For mounting details and considerations, see the
FOX II T/R DP 4K User Guide at
Step 2 — Input and Output Connections
Connect a DisplayPort
a.
video source to the
transmitter DisplayPort input connector.
If desired, connect a DisplayPort video display
b.
to the transmitter Loop-Thru connector for a
local display.
Connect a DisplayPort video display to the receiver DisplayPort output connector.
c.
Connect an audio input device to either the Audio 3.5 mm mini jack or the Audio 5-pole captive screw connector
d.
on the transmitter. See the drawing below step 2g to make connections on the captive screw connector.
Connect an audio output device to either or both the 3.5 mm mini jack or the Audio 5-pole captive screw connector
e.
on the receiver. See the drawing below step 2g to make connections on the captive screw connector.
For optional returned audio, connect an audio output device to the Audio Return Out 5-pole captive screw
f.
connector on the transmitter. See the drawing below step 2g to make connections on the captive screw
connector.
For optional returned audio, connect an audio input device to the Audio Return In 5-pole captive screw
g.
connector on the receiver. See the drawing below to make connections on the
captive screw connector.
ATTENTION:
•
For unbalanced audio, connect the sleeves to the ground
contact. DO NOT connect the sleeves to the negative (-)
contacts.
Pour l'audio asymétrique, connectez les manchons
•
au contact au sol. NE PAS connecter les manchons
aux contacts négatifs (–).
NOTE:
For returned audio, above, you must also do the following:
•
Connect an audio input device to the Audio Return In 5-pole captive screw connector on the receiver.
•
Install the optional Receiver-Tx-to-transmitter-Rx cable in
Le FOX II T/R DP 4K émet une lumière invisible en continu (conforme à la classe 1) qui peut être dangereux
, voir le FOX II T/R DP 4K User Guide sur
www.extron.com
.

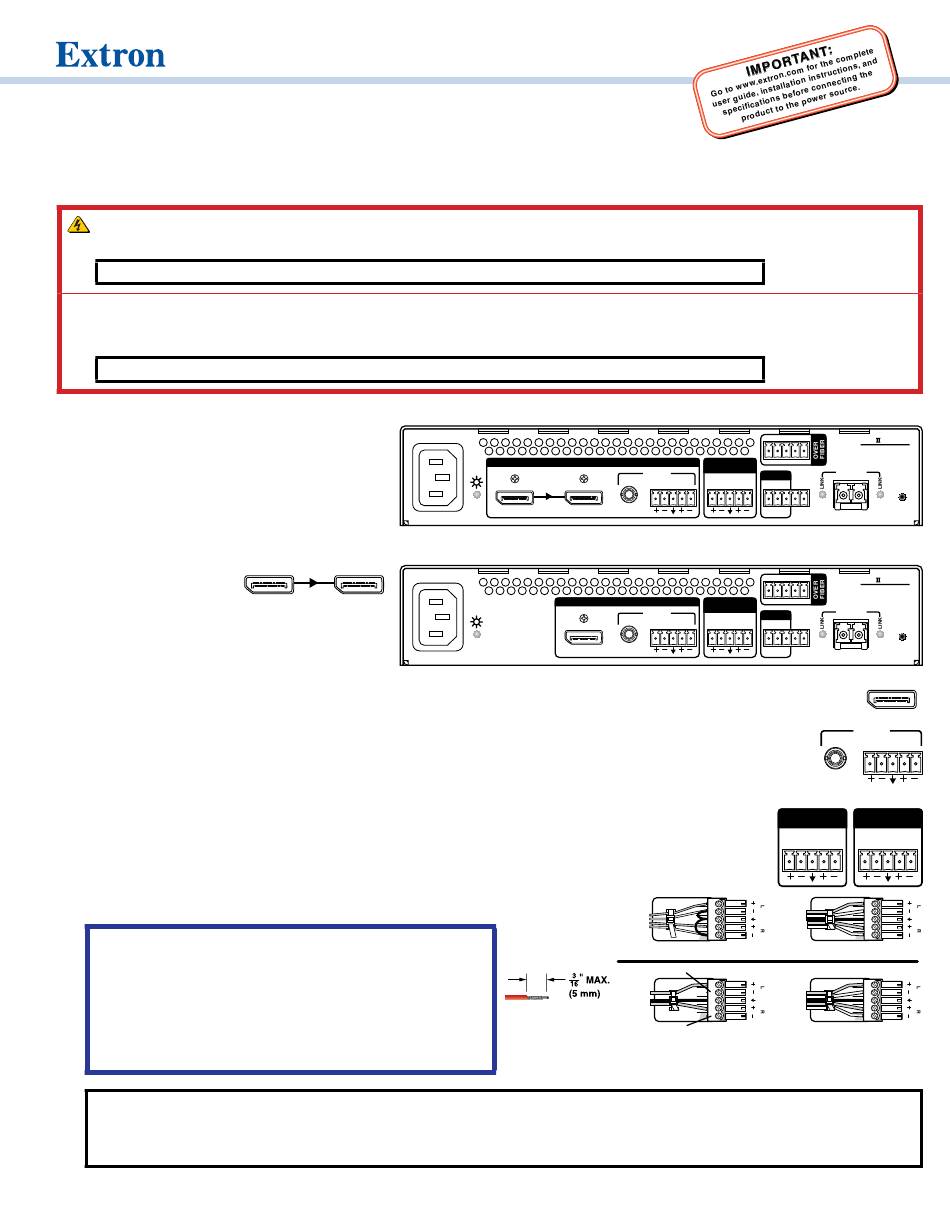

FOX II DP 4K Transmitter Rear Panel
DISPLAYPORT LOOP THRU
FOX II DP 4K Receiver Rear Panel
www.extron.com
100-240V ~ -.-A MAX
INPUTS
DISPLAYPORT LOOP THRU
50-60 Hz
100-240V ~ -.-A MAX
DISPLAYPORT
50-60 Hz
Do not tin the wires!
step 3b
.
(en anglais).
RS-232
AUDIO
Tx Rx G
RETURN OUT
AUDIO
REMOTE
L R L R
RS-232
Tx Rx G 1
RS-232
OUTPUTS AUDIO
Tx Rx G
RETURN IN
AUDIO
REMOTE
L R L R
RS-232
Tx Rx G 1
RETURN OUT
Ring
Tip
Sleeve Sleeves
Tip
Sleeve
Ring
Unbalanced Stereo Input
No Ground Here
Tip Ring
Sleeves Sleeves
Tip
Ring
No Ground Here
Unbalanced Stereo Output Balanced Stereo Output
IR
FOX T DP 4K
Tx Rx
Tx Rx
ALARM
RESET
2
OPTICAL
IR
FOX R DP 4K
Tx Rx
Tx Rx
ALARM
RESET
2
OPTICAL
DISPLAYPORT
AUDIO
L R
AUDIO AUDIO
RETURN IN
L R L R
Tip
Tip
Balanced Stereo Input
Tip
Tip
