ekwb EK-Annihilator Pro ILM Series Installation Manual

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
Before you start using this product please follow these basic guidelines:
1. Please carefully read the manual before through before beginning with the installation process!
2. Please remove your motherboard from the computer to assure safest mounting process in order to prevent any possible damages to your CPU and/or motherboard's circuit board (PCB).
3. The EK-HFB, EK-HDC and EK-ACF type fittings require only a small amount of force to screw them firmly in place as the liquid seal is ensured by the rubber o-ring gaskets.
4. The use of corrosion inhibiting coolants is always recommended for any liquid cooling system.
STEP 1: GENERAL INFORMATION ON PRODUCT COMPATIBILITY

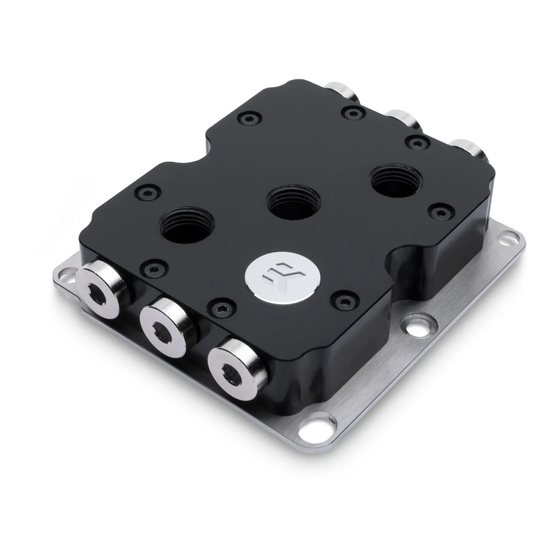

Congratulations on your purchase of EK-Annihilator Pro ILM water
block. This water block is pre-assembled for use with modern Intel
Processors with LGA 3647 socket for server and workstation type
motherboards.
This water block supports the LGA 3647 socket.

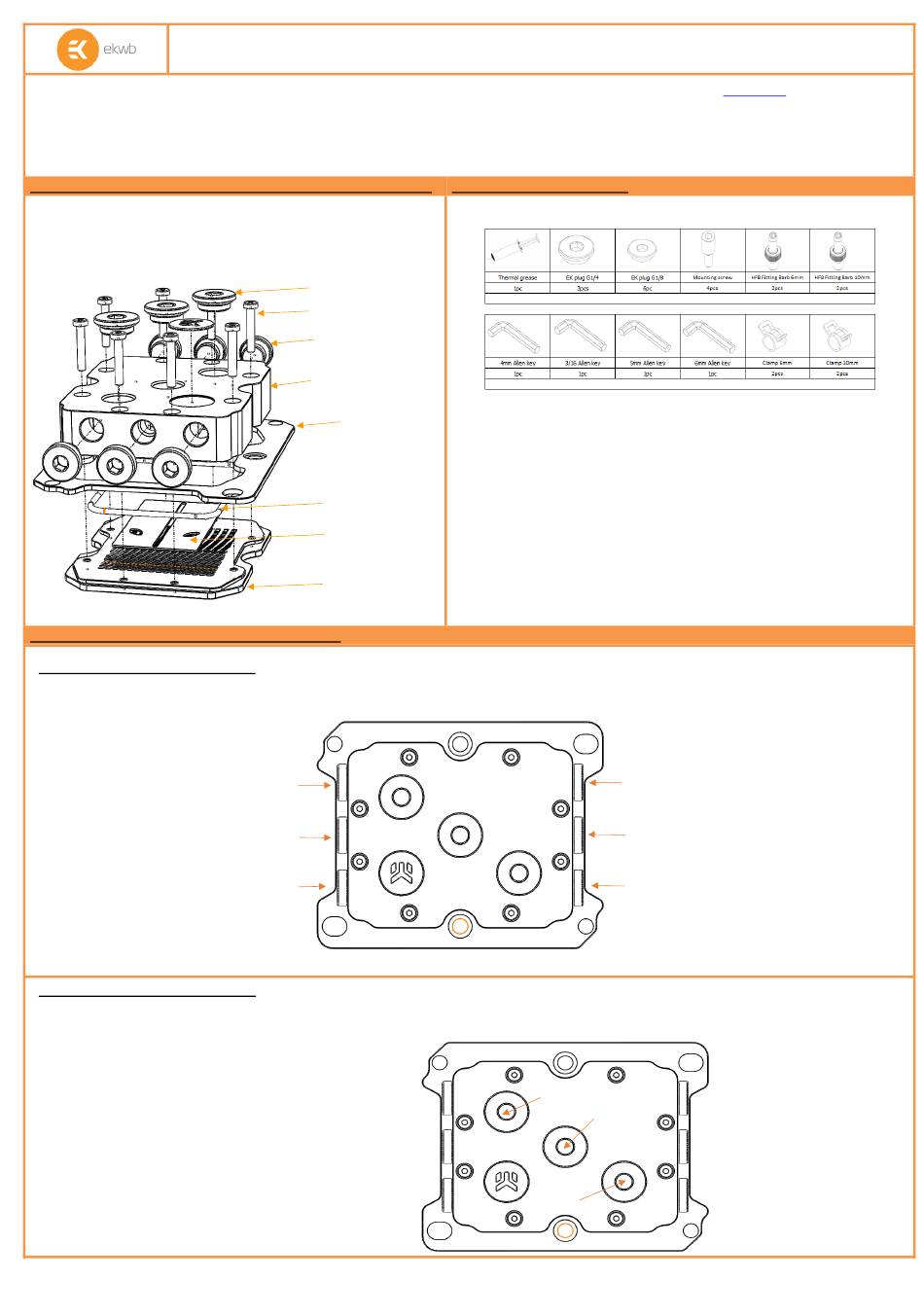

STEP 3: ANNIHILATOR INLET AND OUTLET PORTS
STEP 3a: G1/8 ports configuration:
6 ports G1/8 are available for low profile server cooling solution. Center ports are INLET ports, any of other four can be used as OUTLET port. Make sure, that
other non used ports G1/4 and G1/8 plugs are in place, tightened firmly.
STEP 3b: G1/4 ports configuration:
3 ports G1/4 are available for normal use of water block for workstations. Center port is INLET other two can be used as OUTLETS. Make sure that all other
non used port plugs G1/8 and G 1/4 are in place, tightened firmly.
All disclosures, notices and warranty conditions are being written on EKWB website.
EK-Annihilator Pro ILM
®
Plug G1/4
M3x18
Plug G1/8
Top
Mounting plate
O-Ring
Jet Plate
Copper Base
outlet
Inlet
outlet
series CPU water block installation manual
STEP 2: TABLE OF CONTENT
outlet
Inlet
outlet
www.ekwb.com for updates. Before installation
outlet
Inlet
outlet
th
Revision 1. Released on 5 of Merch 2019
