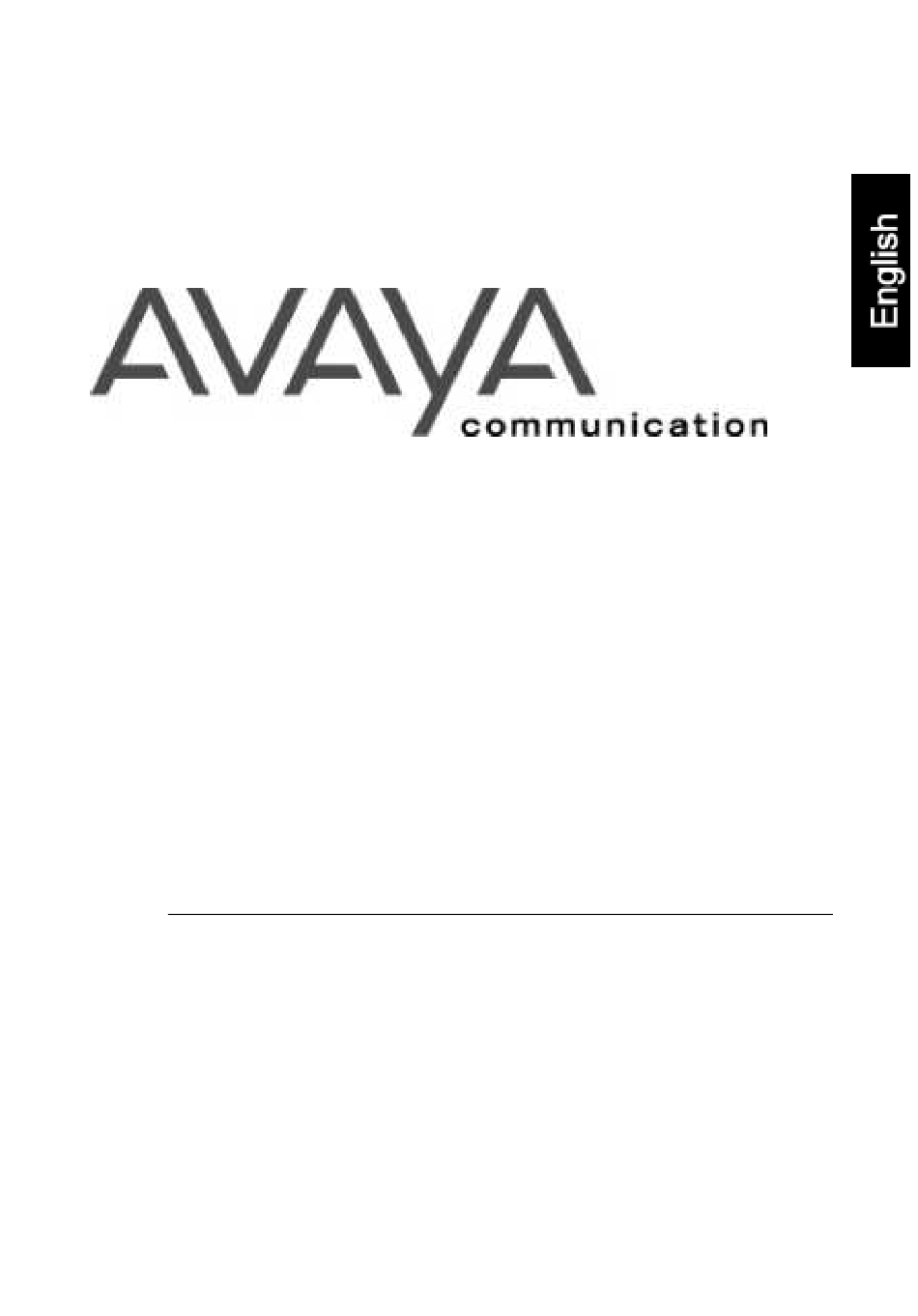

- Page 1 Argent Office Hardware Reference Manual (Revision 5)
- Page 2 Copyright 2001 Avaya Inc. All rights reserved. Published by Avaya Inc., who reserve the right to make improvements to the products described in this manual and to revise this publication at any time without notice to any person of such changes.
-
Page 3: Table Of Contents
ArgentOffice 8 .....................9 ArgentOffice 30 ..................10 Current Country Variants................10 Port Labelling........................11 ArgentOffice - Front View .................11 ArgentOffice 4 - Rear View ...............11 ArgentOffice 8 - Rear View ...............11 ArgentOffice 30 - Rear View ..............12 Port Connections ........................13 DTE Port....................13 DC Power Input Connector................13 Connection to Basic Rate ISDN (BRI)............14... - Page 4 ArgentOffice Hardware Reference Manual External Control Port (3.5mm Stereo Jack Socket) ........22 Cables...........................24 PRI/BRI ISDN Cable.................24 DCE Cable....................25 LAN Interconnect Cable ................26 LAN Crossover Cable................27 LAN Cable....................28 Expansion Interconnect Cable..............29 V.24/V.28 WAN Cable................30 X.21 WAN Cable..................31 V.35 WAN Cable..................32 Port Safety Classification .....................34 Rack Mount Assembly Instructions..................36...
-
Page 5: Section 1: Introduction To Argentoffice
Section 1: Introduction to ArgentOffice This section contains … About ArgentOffice, page 6 Safety and Homologation Statements, page 7 Further Information and Product Updates, page 8 Product Variants, page 9 Port Labelling, page 11 Port Connections, page 13... -
Page 6: About Argentoffice
Features provided by standard Caller Display telephones or Caller Display units. All of these can be used with the ArgentOffice range of products to provide a fully integrated voice and data system with features otherwise only available on expensive call centre systems. -
Page 7: Safety And Homologation Statements
All ISDN and WAN cables used with this product must not be longer than 3m. Refer to Cables, page 24 for details. For all territories except Australia, the 1A 12V Plug Top PSU supplied with the ArgentOffice must only be connected to 50Hz AC power sources in the range 220 – 240V. -
Page 8: Further Information And Product Updates
ArgentOffice Hardware Reference Manual FURTHER INFORMATION AND PRODUCT UPDATES Further information, including Product and Reference Manual updates, can be obtained from Avaya Inc. Alchemy Dealers and Distributors, or from Avaya Inc. Alchemy web site: http://www.avaya.co.uk/products/#alchemy Revision 5... -
Page 9: Product Variants
Section 1: Introduction to ArgentOffice PRODUCT VARIANTS As a standalone product the ArgentOffice can be used as an IP Router with integral Firewall. When used in conjunction with an ArgentPhone module the ArgentOffice acts as a fully featured PBX. The ArgentOffice product range consists of three models, the ArgentOffice 4, the ArgentOffice 8 and the ArgentOffice 30. -
Page 10: Argentoffice 30
All models are supplied both with a UK and an EU Plug Top Power Supply. The UK variant uses an integral UK plug whereas the European variant uses an integral European plug. The power supply used for the ArgentOffice is rated at 12V, 1A and has integral mains and DC power leads. -
Page 11: Port Labelling
Section 1: Introduction to ArgentOffice PORT LABELLING This section illustrates the ports on the ArgentOffice products. RGENT FFICE RONT The following diagram shows the port labelling on the front of the Alchemy Series ArgentOffice range of products: LAN Ports Activity LED Unit ‘Daisy Chain’... -
Page 12: Argentoffice 30 - Rear View
ArgentOffice Hardware Reference Manual 30 - R RGENT FFICE The following diagram shows the port labelling on the rear of Alchemy Series ArgentOffice 30: Revision 5... -
Page 13: Port Connections
Section 1: Introduction to ArgentOffice PORT CONNECTIONS This section provides information on the use of the ArgentOffice ports. It covers: DTE Port. DC Power Input Connector. Connection to Basic Rate ISDN (BRI). Connection to Primary Rate ISDN (PRI). Connection to a LAN. -
Page 14: Connection To Basic Rate Isdn (Bri)
The ArgentOffice 4 and the ArgentOffice 8 connect to Basic Rate ISDN. The ArgentOffice 4 has two BRI ports, whereas the ArgentOffice 8 has four BRI ports. Each ArgentOffice comes supplied with suitable cables for connection to the ISDN Network. -
Page 15: Connection To An X.21, V.35 Or V.24/V.28 Leased Line
ONNECTION TO AN EASED The Leased Line port on the rear of the ArgentOffice is labelled as follows: This port supports a single synchronous data connection, and can support an X.21, V.35 or V.24/V.28 interface. The selection of the required interface is automatically determined from the pin-out of the cable plugged into the ‘WAN’... -
Page 16: Argent Expansion Ports
ArgentOffice Hardware Reference Manual RGENT XPANSION ORTS The ArgentOffice provides six Expansion ports. These are located on the rear of the unit and are labelled as follows: EXPANSION The Expansion ports are used to interconnect to other Alchemy Series products. These products, combined with the ArgentOffice, provide the user with additional functionality (such as Telephony services when any ArgentPhone module is connected). -
Page 17: Section 2: Technical Data
Section 2: Technical Data This section contains … Port Pinouts, page 18 Cables, page 24 Port Safety Classification, page 34 Rack Mount Assembly Instructions, page 36 ISDN Module Upgrade Instructions, page 37 Modem Module Upgrade Instructions, page 38 Technical Specifications, page 39... -
Page 18: Port Pinouts
ArgentOffice Hardware Reference Manual PORT PINOUTS This section provides the technical specifications for the ArgentOffice ports. DTE P OCKET Pin 1 Pin 25 Pin No. Description Signal Direction Transmit Data (TxD) Receive Data (RxD) Request to Send (RTS) Clear to Send (CTS) -
Page 19: Isdn Port - Pri (Rj45 Socket)
Section 2: Technical Data ISDN P (RJ45 S OCKET Pin 1 Pin 8 Pin No. Description Signal Direction Receive Data (Rx-A) Receive Data (Rx-B) Transmit Data (Tx-B) Transmit Data (Tx-A) LAN P - 10 T (RJ45 S BASE OCKET The information below refers to LAN ports 1 - 7, port 8 is switchable: Pin 8 Pin 1 Pin No. -
Page 20: Aui Port (15 Way D-Type Socket With Slide Lock)
ArgentOffice Hardware Reference Manual AUI P OCKET WITH LIDE Pin 1 Pin 15 Pin No. Description Signal Direction Collision (CI-A) Transmit Data (DO-A) Receive Data (DI-A) Ground (VC) Collision (CI-B) Transmit Data (DO-B) Receive Data (DI-B) +12V (VP) WAN P... -
Page 21: Audio Port (3.5Mm Stereo Jack Socket)
Section 2: Technical Data Pin No. Description Signal Dir. Pin No. Description Signal Dir. WAN ID 1 V24 Tx V24 DTR V24 RTS V24 Rx V24 RxClk V24 TxClk V24 RI V24 DCD V24 DSR V24 CTS V35 Tx-A V35 Tx-B V35 SCTE-A V35 SCTE-B V35 Gnd... -
Page 22: Expansion Port (Rj45 Socket)
ArgentOffice Hardware Reference Manual (RJ45 S XPANSION OCKET Pin 1 Pin 8 Pin No. Description Signal Direction Receive Data (Rx-B) Receive Data (Rx-A) Sync-B Clock (Clk-B) Clock (Clk-A) Sync-A Transmit Data (Tx-B) Transmit Data (Tx-A) (3.5 XTERNAL ONTROL TEREO OCKET Pin No. - Page 23 Section 2: Technical Data Control Circuit Information Control Circuit 1 Pin 2 and Pin 3, ensure that Pin 2 is at a positive voltage with respect to Pin 3. Control Circuit 2 Pin 1 and Pin 3, ensure that Pin 1 is at a positive voltage with respect to Pin 3.
-
Page 24: Cables
ArgentOffice Hardware Reference Manual CABLES This section provides information about the cables that are used with ArgentOffice. PRI/BRI ISDN C ABLE Part No.: CABBRINN03M0PP00 Sales Feature: ARG-ISDNC RJ45 Plug. RJ45 Plug. Cat 5 UTP cable - RED. 3 metres. Pin Connections... -
Page 25: Dce Cable
Section 2: Technical Data DCE C ABLE Part No: CABMANSN02M0PS00 Sales Feature: ARG-TAC 25 Way D-Type Plug with UNC 4-40 locking screws. 9 Way D-Type Socket with UNC 4-40 locking screws. 12 core screened cable - each core is 7/0.203mm (24 a.w.g.) tinned copper stranded wire, nominal capacitance of 95pF/m, resistance of 92 Ω/km, screened with tinned copper braid, maximum working voltage of 440V r.m.s. -
Page 26: Lan Interconnect Cable
Twisted pair Green/White Blue/White Twisted pair White/Blue White/Brown Twisted pair Brown/White This cable is used when connecting the ArgentWAN3 to the ArgentOffice. Pins 4,5,7 and 8 are through connected for ease of construction. They are not actually used. Revision 5... -
Page 27: Lan Crossover Cable
Section 2: Technical Data LAN C ROSSOVER ABLE Part No: CABETHNX03M0PP00 Sales Feature: ARG-EX10C RJ45 Plug. RJ45 Plug. Cat 5 UTP cable - BLACK. 3 metres. Pin Connections End A Colour Cable Notes End B White/Orange Twisted pair Orange/White White/Green Twisted pair Green/White This cable is used when connecting Hub Ports 1 - 7 directly to another Hub. -
Page 28: Lan Cable
ArgentOffice Hardware Reference Manual LAN C ABLE Part No: CABETHNN03M0PP00 Sales Feature: ARG-LAN3C RJ45 Plug. RJ45 Plug. Cat 5 UTP cable - GREY. 3 metres. Pin Connections End A Colour Cable Notes End B White/Orange Twisted pair Orange/White White/Green Twisted pair... -
Page 29: Expansion Interconnect Cable
Section 2: Technical Data XPANSION NTERCONNECT ABLE Part No: CABTDMSN01M0PP00 Sales Feature: ARG-VIC Shielded RJ45 Plug. Shielded RJ45 Plug. STP (Shielded Twisted Pair) cable - BLUE. 1 metre. Pin Connections End A Name Colour Cable Notes End B Rx-A White/Orange Twisted pair Rx-B Orange/White... -
Page 30: V.24/V.28 Wan Cable
ArgentOffice Hardware Reference Manual V.24/V.28 WAN C ABLE Part No: CABV28SN03M0PP00 Sales Feature: ARG-WANV24C 37 Way D-Type Plug with UNC 4-40 locking screws. 25 Way D-Type Plug with UNC 4-40 locking screws. Labelled with ‘CABV28SN03M0PP00 /1’. 12 core screened cable - each core is 7/0.203mm (24 a.w.g.) tinned copper stranded wire, nominal capacitance of 95pF/m, resistance of 92 Ω/km, screened with tinned... -
Page 31: Wan Cable
Section 2: Technical Data X.21 WAN C ABLE Part No: CABX21SN03M0PP00 Sales Feature: ARG-WANX21C 37 Way D-Type Plug with UNC 4-40 locking screws. 15 Way D-Type Plug with M3 locking screws. Labelled with CABX21SN03M0PP00. 6 twisted pair screened cable - each core is 7/0.203mm (24 a.w.g.) tinned copper stranded wire, nominal capacitance of 98pF/m, impedance of 77 Ω... -
Page 32: Wan Cable
ArgentOffice Hardware Reference Manual V.35 WAN C ABLE Part No: CABV35SN03M0PP00 Sales Feature: ARG-WANV35C 37 Way D-Type Plug with UNC 4-40 locking screws. 34 Way MRAC Plug. Labelled with CABV35SN03M0PP00. 10 twisted pair screened cable - each core is 7/0.203mm (24 a.w.g.) tinned copper stranded wire, nominal capacitance of 98pF/m, impedance of 80 Ω... - Page 33 Section 2: Technical Data End A Name Cable Notes End B Receive Data - A Twisted pair Receive Data - B Transmit Clock - A Twisted pair Transmit Clock - B Receive Clock - A Twisted pair Receive Clock - B External Clock - A Twisted pair External Clock - B...
-
Page 34: Port Safety Classification
External Control port Connector for Controlling Ancillary circuits. SELV DC Input port Connector for DC input power. SELV Additionally the Alchemy Series ArgentOffice 4, has 2 x BRI ISDN ports, and the Alchemy Series ArgentOffice 8, has 4 x BRI ISDN ports. Revision 5... - Page 35 Port Classification BRI ports BRI ISDN connection (NET) TNV (Operating within the limits of SELV) The Alchemy Series ArgentOffice 30, has 1 x PRI ISDN port. This port is classified as follows: Port Name Port Description Port Classification PRI port...
-
Page 36: Rack Mount Assembly Instructions
ArgentOffice Hardware Reference Manual RACK MOUNT ASSEMBLY INSTRUCTIONS Revision 5... -
Page 37: Isdn Module Upgrade Instructions
Section 2: Technical Data ISDN MODULE UPGRADE INSTRUCTIONS Revision 5... -
Page 38: Modem Module Upgrade Instructions
ArgentOffice Hardware Reference Manual MODEM MODULE UPGRADE INSTRUCTIONS Revision 5... -
Page 39: Technical Specifications
Section 2: Technical Data TECHNICAL SPECIFICATIONS NTERFACES Interface Information 25 way D-Type female connector, V.24/V.28. (Used for Production Test purposes only). ISDN BRI S/T: 2 or 4 x RJ45 sockets, depending on model. ETSI S/T Interface to CTR3 for Pan European Connection. - Page 40 ArgentOffice Hardware Reference Manual Interface Information External Control 1 x 3.5mm Stereo Jack socket. Switching Capacity - 0.7A. Maximum Voltage - 55V d.c. On state resistance - 0.7Ω. Short circuit current - 1A. Reverse circuit current capacity - 1.4A. Dimensions Width: 445mm.
-
Page 41: Protocols
Section 2: Technical Data ROTOCOLS Protocol Information V.120 - - - A standard Rate Adaption mechanism. V.110 - - - A standard Rate Adaption mechanism. RFC 1661 Point to Point Protocol. RFC 1570 Link Control Protocol. RFC 1990 Multi-Link (Point to Point) Protocol. RFC 1334 Password Authentication Protocol.
