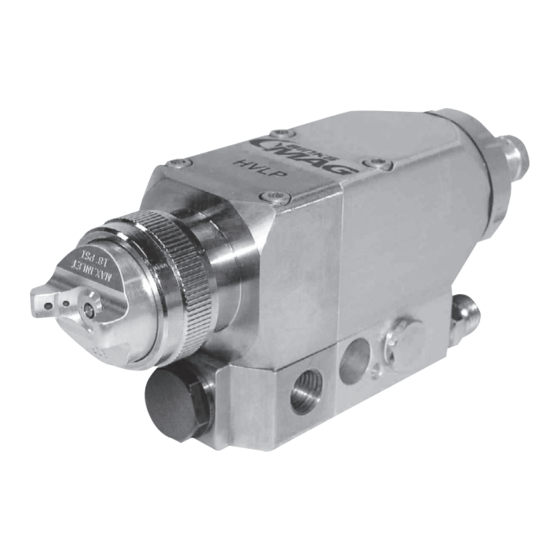

Automatic airspray gun

Advertisement

Quick Links

The following instructions provide the necessary
information for the proper operation and preventive
maintenance of the Binks MAG HVLP Manifold
Mounted Airspray Gun. Please read and understand
all information in this document in order to get the
maximum performance from your new MAG HVLP
airspray gun.
The automatic MAG HVLP gun is a conventional
style airspray gun with special nozzle and
modifications that allow it to operate at high transfer
efficiencies in compliance with the "California South
Coast Air Quality Management District" regulations
as a "high volume, low pressure" airspray gun.
High pressure, low volume airflow is converted to
high volume, low pressure within the gun body.
Special air and fluid nozzle enable the gun to
atomize fluid at low air pressure and velocities,
creating the "soft spray" effect for high transfer
efficiencies.
caution
!
Before removing any components from spray gun,
shut off air and material pressure.
notE
iMPoRtant ReGULatoRY note regarding the use of
this product appears on page 6.
If you have any questions or do not understand the
information presented, call your nearest service
representative.

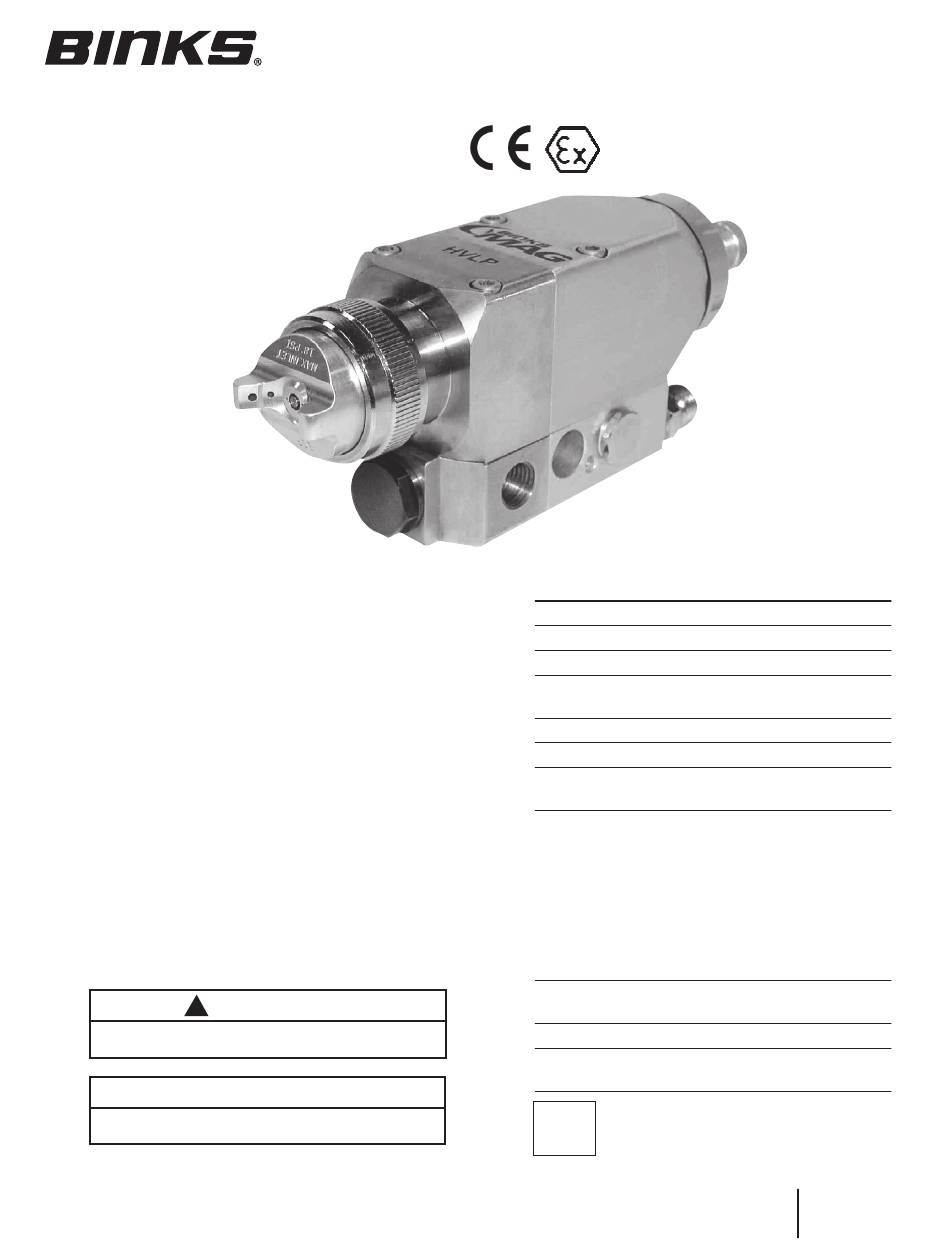

Mag HVLP autoMatic
aiRSPRay gun

SPecificationS:

Max. Air Pressure:
For HVLP compliance: See page 5
Max. Fluid Pressure: 120 psi/8.3 bar
Min./Max. Cylinder
Actuating Pressure:
Gun Body:
Fluid Path:
Fluid Inlet and
Outlet Size:
Air Inlet Size:
Gun Weight
with Manifold:
Gun Mounting Hole: 1/2" Dia.
The MAG HVLP is approved to ATEX level II 2 G X
and is suitable for use in Zones 1 and 2.
ca PRoP
65
ii 2 G X
100 psi/6.8 bar
50 psi/3.4 bar (min.),
100 psi/6.8 bar (max.)
Stainless Steel, Aluminum
Stainless Steel
1/4" NPT(F) thread
Atomizing Air: 1/4" NPT(F)
manifold body, 1/4" NPT x
1/4" NPS(M) fitting (loose)
Fan Air: 1/4" NPT(F)
manifold body, 1/4" soc head
plug (M) fitting (loose)
Cylinder Air: 1/8" NPT(F)
manifold body, 1/8" NPT x
1/4" O.D. tube fitting (loose)
2.8 lbs. (1.27 kg)
PRoP 65 WaRninG
WARNING: This product contains chemicals known
to the State of California to cause cancer and birth
defects or other reproductive harm.
Replaces
Part Sheet
77-2803R-10
Part
Sheet
77-2803R-11
