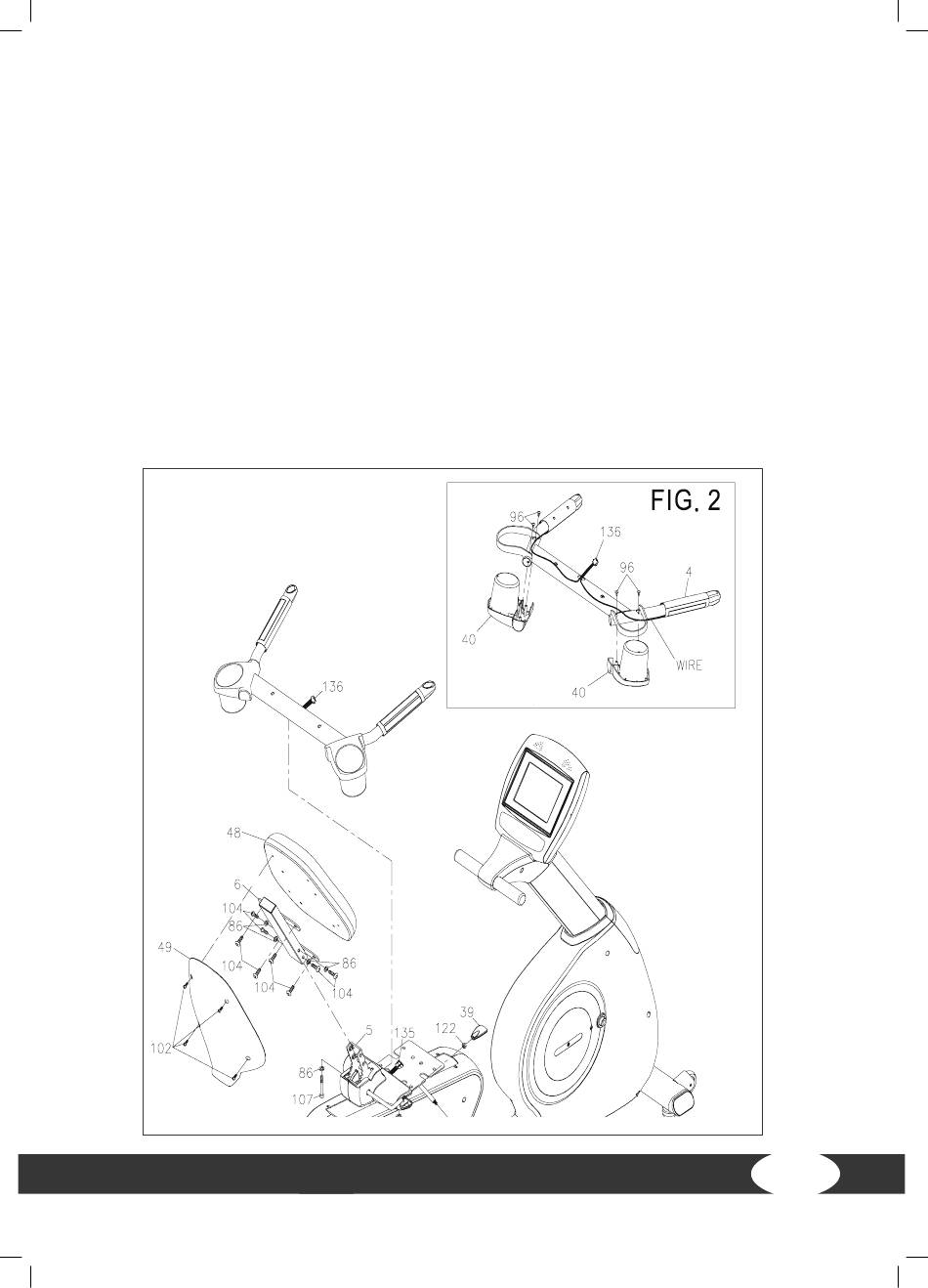

Step 11:
Assemble bottle holder
Turn the seat handle (4) so that the hand pulse sensor handle points down. Mount the
accessory holder (40) on the seat handle (4) with four screws (M4x10mm)(96).
NOTE: Do not damage the pulse sensor cable 4 (136).
Step 12:
Assemble seat handle
Place the seat handle (4) on the frame (1) and mount this with two spring washers (M8)(86)
and two screws (M8xp1.25x55mm)(107).
Step 13:
Cable connection pulse sensors
Connect the pulse sensor cable 4 (136) with the pulse sensor cable 3 (135).
19
