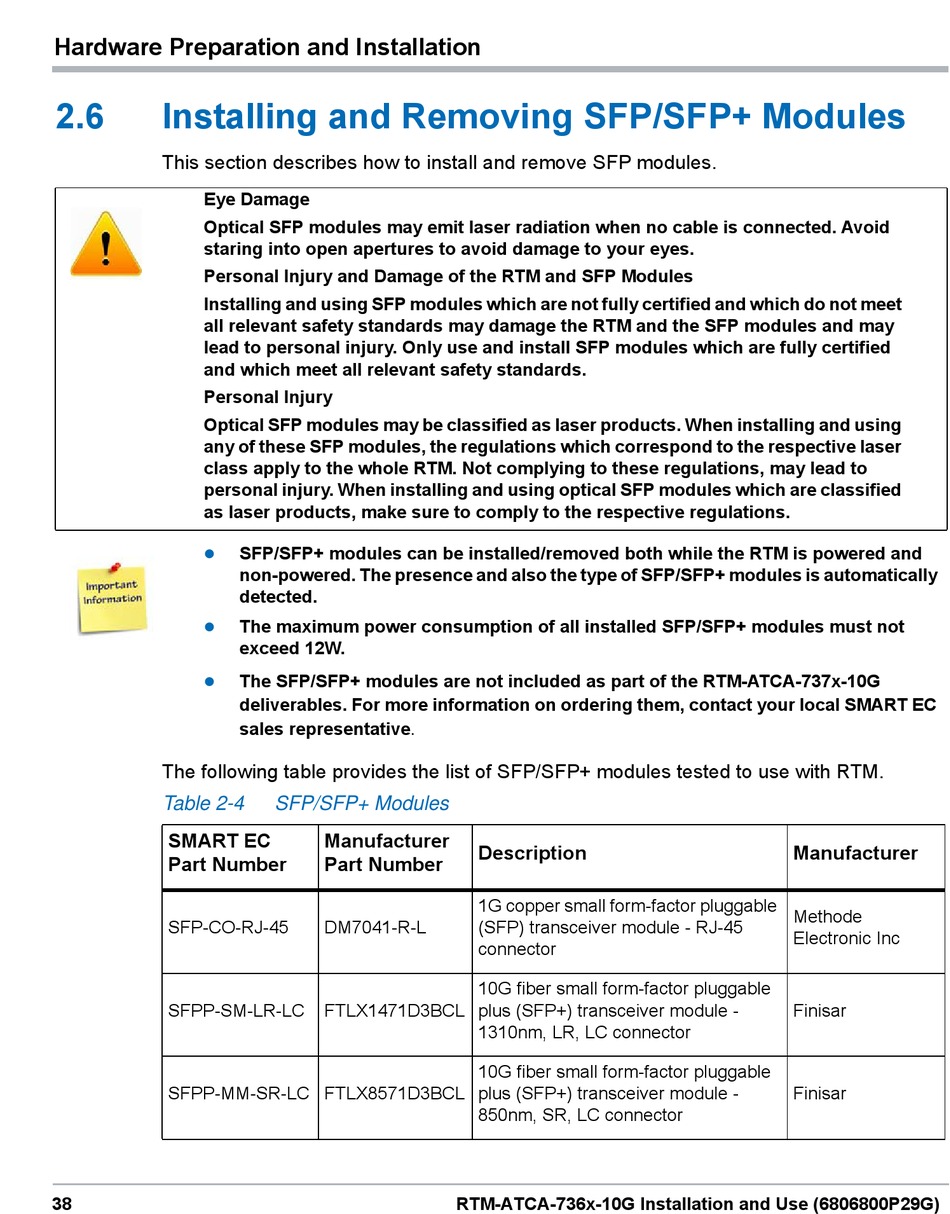

Hardware Preparation and Installation
2.6

Installing and Removing SFP/SFP+ Modules

This section describes how to install and remove SFP modules.
Eye Damage
Optical SFP modules may emit laser radiation when no cable is connected. Avoid
staring into open apertures to avoid damage to your eyes.
Personal Injury and Damage of the RTM and SFP Modules
Installing and using SFP modules which are not fully certified and which do not meet
all relevant safety standards may damage the RTM and the SFP modules and may
lead to personal injury. Only use and install SFP modules which are fully certified
and which meet all relevant safety standards.
Personal Injury
Optical SFP modules may be classified as laser products. When installing and using
any of these SFP modules, the regulations which correspond to the respective laser
class apply to the whole RTM. Not complying to these regulations, may lead to
personal injury. When installing and using optical SFP modules which are classified
as laser products, make sure to comply to the respective regulations.
SFP/SFP+ modules can be installed/removed both while the RTM is powered and

non-powered. The presence and also the type of SFP/SFP+ modules is automatically
detected.
The maximum power consumption of all installed SFP/SFP+ modules must not

exceed 12W.
The SFP/SFP+ modules are not included as part of the RTM-ATCA-737x-10G

deliverables. For more information on ordering them, contact your local SMART EC
sales representative
The following table provides the list of SFP/SFP+ modules tested to use with RTM.
Table 2-4
SMART EC
Part Number
SFP-CO-RJ-45
SFPP-SM-LR-LC
SFPP-MM-SR-LC FTLX8571D3BCL
38
.
SFP/SFP+ Modules
Manufacturer
Part Number
DM7041-R-L
FTLX1471D3BCL
RTM-ATCA-736x-10G Installation and Use (6806800P29G)
Hardware Preparation and Installation
Description
1G copper small form-factor pluggable
(SFP) transceiver module - RJ-45
connector
10G fiber small form-factor pluggable
plus (SFP+) transceiver module -
1310nm, LR, LC connector
10G fiber small form-factor pluggable
plus (SFP+) transceiver module -
850nm, SR, LC connector
Manufacturer
Methode
Electronic Inc
Finisar
Finisar
