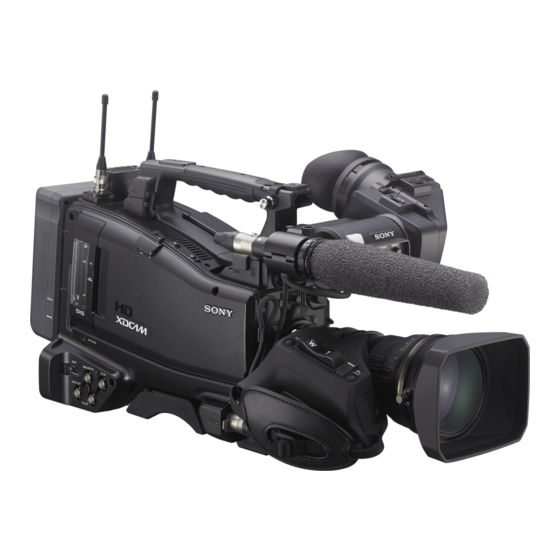

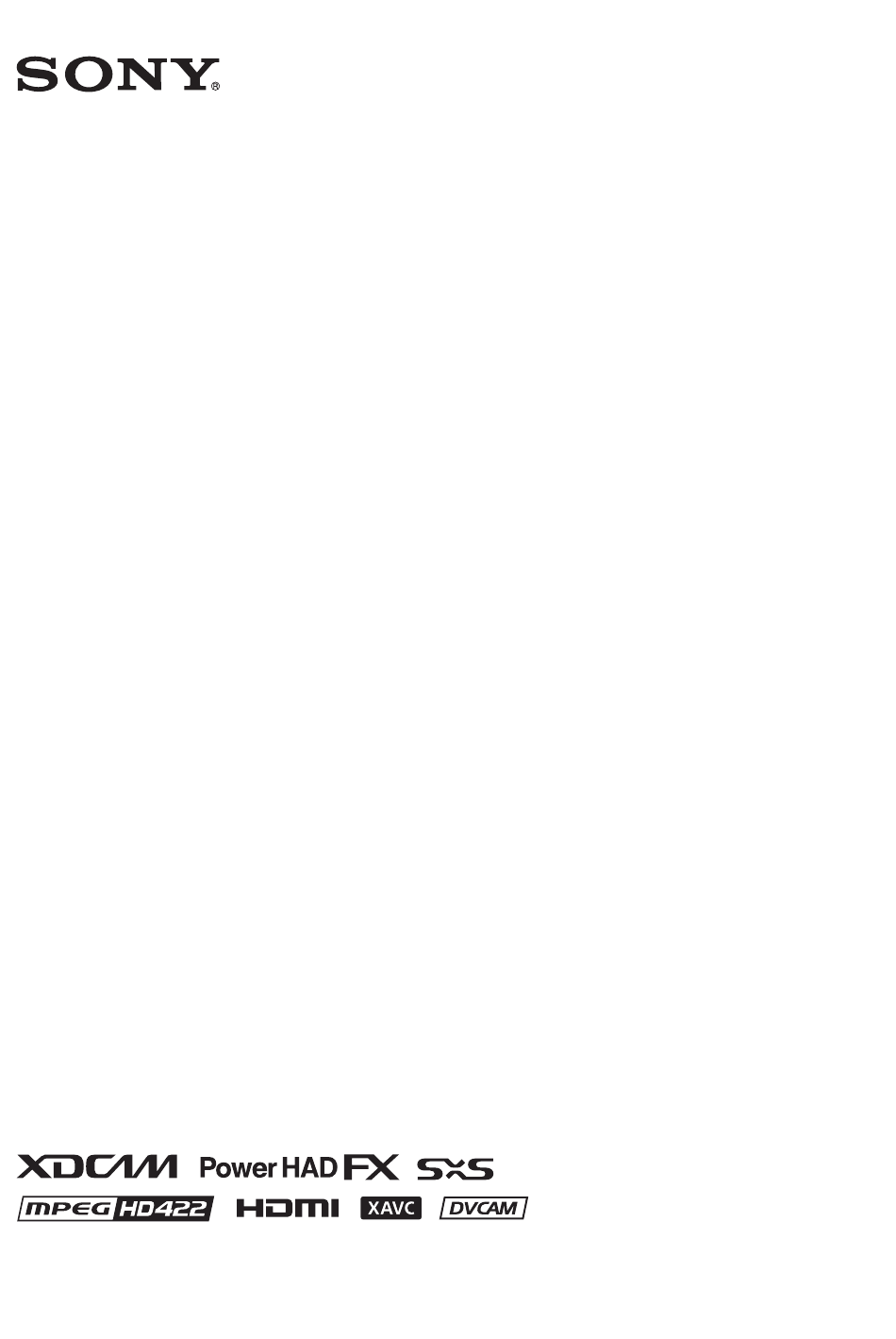

SOLID-STATE MEMORY CAMCORDER
PXW-X500
SERVICE MANUAL
1st Edition

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PXW-X500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sony PXW-X500

Summary of Contents for Sony PXW-X500

  • Page 1 SOLID-STATE MEMORY CAMCORDER PXW-X500 SERVICE MANUAL 1st Edition...
  • Page 2 Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres. Pour toute réparation faire appel à une personne compétente uniquement. PXW-X500...
  • Page 3 Batterien nur durch den vom Hersteller empfohlenen Kasser batteriet i henhold til gjeldende avfallsregler. oder einen gleichwertigen Typ ersetzen. Wenn Sie die Batterie entsorgen, müssen Sie die Gesetze der jeweiligen Region und des jeweiligen Landes befolgen. PXW-X500...

  • Page 5: Table Of Contents

    Installation of the Guard.....................1-43 PXW-X500...
  • Page 6 Basic Menu Operation....................4-4 PXW-X500...
  • Page 7 Frame Wiring......................... . .6-2 PXW-X500...

  • Page 9: Manual Structure

    Related manuals The following manuals are available in this model. If this manual is required, please contact your local Sony Sales Office/Service Center. • Operation Guide (Supplied with the unit) This manual is necessary for application and operation of the unit.

  • Page 11: Service Overview

    DET-50 DPR-362 RM-246 CN-3723 KY-736 IF-1209 SW-1652 DCP-67 HN-415 CN-3736 PA-422 PA-423 SW-1653 AXM-52 PA-424 HP-171 MB-1210 FP-208 SW-1651 SW-1650 ENC-162 SD-58 CI-50 Mother board (WM) CN-3722 RE-326 RX-136 DIF-232 SW-1632 SE-1155 DET-60 CN-3738 RM-246 CN-3737 IO-275 AU-360 TG-287 PXW-X500...

  • Page 12: Circuit Description

    The baseband signals processed by the video signal processor ROSETTA (IC0100) are sent to the video signal distributor IC and the CN-3558 board, and are then distributed to input/output circuits. The video signal processor ROSETTA (IC0100) has the following input/output signals. PXW-X500...
  • Page 13 The digital video signal (LVDS) is output to the connector (CN1) which is a dedicated connector for the separately available viewfinder. The analog video signal is output to the connector (CN2) that relays the signal to the CN-3736 board. PXW-X500...

  • Page 14: Media Recording And Playback Block

    USB2.0 host controller (IC3300) The USB2.0 host controller provided with a 5-channel USB2.0 port is controlled by the media processor DIABLO (IC2900) through the PCI bus. Two channels out of five channels are connected to the SxS memory card slot on the PXW-X500...
  • Page 15 The USB host signals that are input to and output from the USB3.0 host controller (IC3602/DPR-362 board) are connected to the connector (CN001) on the LED-529 board from the connector (CN5202) on the DPR-362 board with the fine-wire coaxial harness, and are then connected to the USB3.0 connector (A) (CN002). PXW-X500...

  • Page 16: System Control Block

    The EMMA (IC4200) is connected to the WM through the fine-wire coaxial connector (CN2303) to control communication. When media data is transferred, IC4500 is controlled to disconnect the maintenance USB and connect it to the media processor DIABLO (IC2900) through the USB host controller (IC3300) for Diablo. PXW-X500...

  • Page 17: Audio Block

    The RX-136 board mounts an analog/digital wireless D-sub 15-pin connector (CN1), a circuit to support two communication formats: WRR-855 communication and asynchronous communication, and an analog audio signal amplifier. This board also controls digital audio signals. The FPGA (IC801) on the AU-360 board performs wireless control. PXW-X500...
  • Page 18 Furthermore, the MIC input level (-30 to -60 dBu/10 dB step, 70 dBu and -60 dBu are same setting) and supply of the microphone power +48 V are switched by switches (Q300 to Q303). Input signal selector Audio signals are selected by the analog switch (IC400 to IC404) based on the side panel switch information, etc. PXW-X500...
  • Page 19 The rear external LINE/MIC input signal is sent from the AXM-52 board through the MB-1210 board to the analog switch (IC401 to IC404) of the input signal selector. Analog wireless signals are sent from the RX-136 board through the MB-1210 board to the analog switch (IC400 to IC404) of the input signal selector. PXW-X500...
  • Page 20 • The HIF interface is connected to the FPGA. HIF interface control signals are converted to GPI signals to control analog circuits. The DSP (IC1000) functions control set by the menu is processed by writing necessary coefficients to the DSP (IC1000) through the FPGA (IC801). 1-10 PXW-X500...
  • Page 21 HP OUTPUT -4dB LINE (-30dBu) HP/SP amp (HEADROOM) AK4213 (-40dBu) -40dBFS -40dBu HR-12dB -40dBu (WLMIC REF LEVEL) HR-16dB (-50dBu) HR-18dB : LINK (-60dBu) HR-20dB -60dBFS -60dBu -60dBu HEADROOM (-70dBu) -80dBFS -80dBu -80dBu -100dBFS -100dBu -100dBu -120dBFS -120dBu -120dBu 1-11 PXW-X500...

  • Page 22: Power Supply Block

    IC107 detects the input current. When the input current exceeds approx. 12 A, the overcurrent protection circuit is activated to shut down the camera unit. • Incorrect-power connection protection When a reverse voltage is input, Q104 on the RE-326 board is not turned on and the protection function is activated to block the current path. 1-12 PXW-X500...

  • Page 23: Wireless Block

    • SD-58 board (Proxy SD card slot) The SD memory in the SD card slot (CN002) is controlled by the WIFI MODULE (WM board) through the connector (CN001). Proxy data filed by the WIFI MODULE (WM board) is recorded. 1-13 PXW-X500...

  • Page 24: Camera Adapter (Ca) Connection Block

    CA through the 50-pin interface connector (CN4) and the connector (CN2) to the FPGA ETCx (IC100/HPR-53 board). Synchronization signals, asynchronous communication data, and 700 protocol communication data other than video signals are individually output to the HPR-53 board through the connector (CN3). 1-14 PXW-X500...

  • Page 25: Connectors/Cables

    Note Do not connect with a connector/cable other than above. HDMI HDMI cable (commercially available on market) LENS (12P FEMALE) Connector 12P, Male or HIROSE 1-564-360-11 HR10-10PA-12P equivalent EXT (50P FEMALE) Rectangular, 50P, Male (commercially available on market) 1-15 PXW-X500...

  • Page 26: Connector Input/Output Signals

    MIC/LINE (Y) High impedance, Balanced 5. DC IN XLR 4-pin, Male - External View - Signal Specifications — GND for DC (+) — — No connection — — No connection DC IN (+) +11 to 17 V dc input 1-16 PXW-X500...
  • Page 27 11. DC OUT 12 V DIN, 4-pin, Female - External View - Signal Specification UNREG GND — GND for power — — No connection — — No connection UNREG +12 V +11 to 17 V dc output（Max 1.8 A） 1-17 PXW-X500...
  • Page 28 USB VBUS DATA (-) DATA (+) — 14. USB2.0 Device (PC) USB (Series B), 4-pin Signal standard : USB standard Ver. 2.0 - External View - Signal USB DEV VBUS DATA (-) DATA (+) — 15. EXT 50-pin (Female) 1-18 PXW-X500...
  • Page 29 +11 V to 17 V SENSE_UNREG_OUT +11 V to 17 V Reserve (disuse is low) Hi : 2.5 V, Low : GND 700 Protocol (RX) CMD1 Skin Gate Level3 CMD3 Reserve (disuse is low) Hi : 2.5 V, Low : GND Continued 1-19 PXW-X500...
  • Page 30 Signal standard: USB standard Ver. 3.0 - External View - Signal VBUS +5V OUT STDA_SSRX- STDA_SSRX+ GND_DRAIN STDA_SSTX- STDA_SSTX+ 17. BATT IN 5-pin, Male - External View - Signal Specifications BATT IN (+) +11 to 17 V dc input Continued 1-20 PXW-X500...
  • Page 31 + 3.4 V (F16) to + 6.2 V (F2.8) UNREG + 12 V + 11 V to + 17 V IRIS PSTN + 3.4 V (F16) to + 6.2 V (F2.8) REMOTE/LOCAL REMOTE (MANUAL) IRIS: +5 V LOCAL (AUTO) IRIS: 0 V Continued 1-21 PXW-X500...
  • Page 32 +7 V — SCLK 64 FS WRR855 DET — WRR CLK WRR SERIAL CLOCK WRR SELECT WRR DI WRR SERIAL IN WRR DO WRR SERIAL OUT LRCK DATA 1/2 AUDIO DATA 1/2 IN DATA 3/4 AUDIO DATA 3/4 IN 1-22 PXW-X500...
  • Page 33 Round, 20-pin (External View) Signal Specifications SDA VF TTL level No connection No connection TTL level No connection No connection No connection G TALLY ON : 5 V, OFF : GND No connection No connection No connection Continued 1-23 PXW-X500...
  • Page 34 UNREG (+11 V to 17 V) — — — LVDS 1+ LVDS 2+ LVDS 3+ LVDS CLK+ LVDS 4+ LVDS 5+ SCLK UNREG (+11 V to 17 V) UNREG (+11 V to 17 V) — SHIELD GND — 1-24 PXW-X500...

  • Page 35: Functions Of Onboard Switches And Leds

    Blinks (at 1 Hz intervals) when a shutdown signal is generated Unlit due to abnormal load, then the camera unit is shut down. S107 PLD forced ON switch When this switch is turned on, power is supplied to the PLD to forcibly operate it (for reprogramming, debug, etc.) 1-25 PXW-X500...

  • Page 36: Note For Replacement Of Ic Or Board

    • Service of PA-422/423/424 boards The PA-422/423/424 boards cannot be replaced on the board-level service or part-level service. If parts become defective, replace the entire CCD block. The adjusted values for the CCD block are stored in the TG-287 board. 1-26 PXW-X500...

  • Page 37: Description Of Ccd Block Number

    All of the CCD units have their unique ID numbers. This number is called the CCD block number indicating the type of the CCD block and serial number. The label indicating the CCD block number is attached inside of each CCD unit. Example) OOB xxxxx Serial number of the CCD unit Type of the CCD block (PXW-X500) 1-27 PXW-X500...

  • Page 38: Replacing Lithium Battery

    Screws with stopper Screws with stopper Turn over the FP shield cover and replace the lithium battery (CR2032) on the FP-208 board. Lithium battery (CR2032) FP shield cover Attach the inside panel assembly by reversing the steps of removal. 1-28 PXW-X500...
  • Page 39 Set the date and time of the internal clock. (Refer to the operating instructions) 1-29 PXW-X500...

  • Page 40: Fixtures/Measuring Equipment List

    TEKTRONIX TDS3054 or equivalent (150 MHz or more) HD waveform monitor TEKTRONIX WFM8300 or equivalent Frequency counter Advantest TR5821AK or equivalent Digital voltmeter Advantest TR6845 or equivalent Color monitor SONY LMD-A240/A220/A170 or equivalent Luminance meter Konica Minolta LS-110 or equivalent 1-30 PXW-X500...

  • Page 41: Circuit Protection Parts

    The fuse is critical parts to safe operation. Replace the components with Sony parts whose part number appear in the manual published by Sony. If the components are replaced by any parts other than the specified ones, this may cause a fire or electric shock.

  • Page 42: Lead-Free Solder

    • The ordinary soldering iron can be used but the iron tip has to be applied to the solder joint for a slightly longer time. The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful. 1-32 PXW-X500...

  • Page 43: Firmware Upgrade

    The aim of the time required of the upgrade is approximately 40 minutes. Note For how to obtain the upgrading data in the package file, contact your local Sony Sales Office/Service Center. Equipment required • SD memory card - For the type of SD memory card are available for this unit, refer to the operating instructions.
  • Page 44 The message [Version Upgrade Error] is displayed. Confirm the upgrade procedures and perform the procedures from step 1 again. After this steps, if the upgrading is not completed correctly. Contact your local Sony Sales Office/Service Center. Package file for upgrade is not detected The message [Version Upgrade No File] is displayed on the viewfinder or LCD monitor.

  • Page 45: Upgrade Of Proxy Recording/Wireless Lan Connection Function

    • Upgrade for proxy recording/wireless LAN connection function is performed with using SD memory card which is installed the package file for upgrade. Note How to obtain the package file for upgrade, Contact your local Sony Sales Office/Service Center. Equipment required • SD memory card - Refer to the operating instructions for available SD memory card.
  • Page 46 Upgrading has failed The message [Version Upgrade Error] is displayed. Confirm the upgrade procedures and perform the procedures from step 1 again. After this steps, if the upgrading is not completed correctly. Contact your local Sony Sales Office/Service Center. 1-36 PXW-X500...

  • Page 47: Electrical Adjustment

    1-13. Electrical Adjustment When making electrical adjustment, contact your local Sony Sales Office/Service Center. 1-37 PXW-X500...

  • Page 48: Flexible Card Wire And Fine-Wire Coaxial Cable

    • When disconnecting the fine-wire coaxial cable, be sure to hold the connector. Do not attempt to pull the cable. • Check that the contact surface of the fine-wire coaxial cable connector is free from dirt or dust. 1-38 PXW-X500...
  • Page 49 Do not attempt to disconnect by pulling the cable. Disconnecting Hold the connector and disconnect the fine-wire coaxial cable horizontally or vertically. Connecting Hold the connector and connect the fine-wire coaxial cable horizontally or vertically while matching the polarity marks. 1-39 PXW-X500...

  • Page 50: Periodic Maintenance And Inspection

    • If the Hanging Bracket itself is deformed or becomes loose; →Replace the Handle Sub Assembly (A-2061-149-A). Suspension Collar Handle Sub Assembly State when the Suspension Collar Suspension Collar is lost 1-15-4. Recommended Replacement Parts This section describes the recommended replacement parts and recommended replacement time. 1-40 PXW-X500...
  • Page 51 Headphone Jack Cover 4-168-991-01 Drop Protection Cover (XLR) 4-545-527-01 Rubber Foot 3-723-097-01 Shoulder Pad Assembly A-1752-736-B Cap (Light Connector) 4-168-996-01 Lens Mount Holder 3-796-982-03 Connector Cap 4-169-085-02 Cover (NON DONGLE) 4-545-572-01 Suspension Collar 3-654-615-02 Grip 4-168-997-02 Battery Connector A-1968-119-A Continued 1-41 PXW-X500...
  • Page 52 3-790-043-11 Replace every 5 years. When the part is replaced, apply the instant adhesive (Loctite 408 or equivalent) to the whole area of the flange from the back side with care not to ooze out to cosmetic surface. 1-42 PXW-X500...

  • Page 53: Installation Of The Guard

    Remove the two screws and the two washers from the main body. +B3 x 8 Cover (NO DONGLE) +B3 x 8 W3, Small W3, Small Install the guard. Install the two washers, and tighten the two screws. +B3 x 8 +B3 x 8 W3, Small W3, Small Guard 1-43 PXW-X500...

  • Page 55: Replacement Of Main Parts

    Flexible card wire When connecting flexible card wires, connect them firmly referring to“1-14-1. Disconnecting/Connecting Flexible Card Wire Type A to D Disconnecting”. Fine-wire coaxial cable When connecting fine-wire coaxial cables, connect them firmly referring to“1-14-2. Disconnecting/Connecting Fine- Wire Coaxial Cable”. PXW-X500...

  • Page 56: Tightening Torque

    • Since small screws are used in the unit, they may fall into the unit when they are removed and installed. To prevent screws from falling, it is recommended that the bit of each torque driver be magnetized to a degree that prevents screws from falling. PXW-X500...

  • Page 57: Outside Panel Assembly

    Disconnect the fine-wire coaxial cable from the connector (CN001) on the CN-3722 board, and then remove the outside panel assembly. CN-3722 board CN001 Fine-wire coaxial cable Fine-wire coaxial cable Outside panel assembly Install the removed parts by reversing the steps of removal. PXW-X500...

  • Page 58: Inside Panel Section

    Release the FP insulating sheet from the hook on the main frame, and remove the inside panel assembly. CN21 CN20 (MB-1210 board) (MB-1210 board) FP insulating sheet CN0300 Hook (DPR-362 board) CN22 (MB-1210 board) Flexible flat cable Inside panel assembly Fine-wire coaxial cable Flexible flat cables Install the removed parts by reversing the steps of removal. PXW-X500...

  • Page 59: Fp-208 Board

    Remove the inside panel assembly.(Refer to “2-3-1. Inside Panel Assembly”) Procedure Disconnect the three flexible flat cables from the three connectors (CN601, CN602, CN603) on the FP-208 board. Flexible flat cables (25 core) CN603 (FP-208 board) CN601 (FP-208 board) CN602 (FP-208 board) PXW-X500...
  • Page 60 Release the fine-wire coaxial cable from the five notches of the FP insulating sheet. Remove the tape AS. Fine-wire coaxial cable FP insulating sheet Notch Notch Notch Notch Tape AS Notch Remove the three screws to detach the FP insulating sheet. PSW2 x 5 FP insulating sheet PXW-X500...
  • Page 61 HP-171 board Remove the knobs. Remove the two VR knobs. Open the switch door (R) assembly. Remove the two VR knobs (2). Remove the two VR knobs (S). VR knobs (2) VR knobs (S) VR knobs Switch door (R) assembly PXW-X500...
  • Page 62 FP-208 board assembly PSW2 x 5 SW cover (arrow) holder PSW2 x 5 LED lens sub clip SW cover (arrow) SW cover (assign) holder LED lens (assign) SW cover (assign) SW cover (filter) holder LED lens (filter) SW cover (filter)) PXW-X500...
  • Page 63 (SW) SW knob (B) SW knobs (A) Lithium battery Insulated stick Lithium battery Note When installing the lithium battery, not to mistake the orientation of the lithium battery. Install the removed parts by reversing the steps of removal. PXW-X500...

  • Page 64: Lcd Assembly

    Release the fixing of the fine-wire coaxial cable and the harness. Release the fine-wire coaxial cable from the five notches of the FP insulating sheet. Remove the tape AS. Fine-wire coaxial cable FP insulating sheet Notch Harness Notch Notch Fine-wire coaxial cable Notch Tape AS Notch 2-10 PXW-X500...
  • Page 65 Release the fine-wire coaxial cable and the harness from the hole of the LCD harness cover. Remove the hinge blind plate and helical torsion spring. LCD harness clamp Claw P2 x 4 LCD harness cover P2 x 4 LCD harness cover Harness Hinge blind plate Fine-wire coaxial cable Helical torsion spring 2-11 PXW-X500...
  • Page 66 Remove the two screws to detach the LCD lock assembly, LCD panel POPUP, and spring. Spring LCD panel POPUP LCD lock assembly P2 x 4 LCD assembly Remove the four screws, and remove the inside pad (L). P 3 x 8 Inside pad (L) 2-12 PXW-X500...
  • Page 67 Turn the LCD assembly as shown in the figure. Remove the two screws (PSW2 x 5) and the two screws (P3 x 8), and remove the inside (R) pad. P3 x 8 LCD assembly Inside (R) pad PSW2 x 5 2-13 PXW-X500...
  • Page 68 Remove the three screws to detach the LCD assembly. LCD assembly PSW2 x 5 Install the removed parts by reversing the steps of removal. 2-14 PXW-X500...

  • Page 69: 3.5 Inch Lcd Assembly

    Remove the four screws to detach the LCD cover. LCD cover P2 x 4 P2 x 4 Remove the two screws (P2 x 4) and the two screws (P1.7 x 2.5), and remove the shield LCD. P1.7 x 2.5 P2 x 4 Shield LCD 2-15 PXW-X500...
  • Page 70 3.5 inch LCD assembly Locking compound Hinge assembly Note When installing the two screws [A], apply locking compound (about rice grain quantity) to them. Turn the hinge assembly, and remove the two screws. Hinge assembly P1.7 x 2.5 2-16 PXW-X500...
  • Page 71 When installing the hinge harness protection sheet, install it to inside between the switch (DET-50 board) and LCD hinge harness protector. Rotating shaft of the hinge assembly Switch (DET-50 board) LCD hinge harness protector Hinge harness protection sheet Rotating part of the hinge assembly 2-17 PXW-X500...
  • Page 72 Release the fine-wire coaxial cable from the hinge assembly, remove the 3.5 inch LCD assembly. 3.5 inch LCD assembly Fine-wire coaxial cable Hinge assembly Install the removed parts by reversing the steps of removal. 2-18 PXW-X500...

  • Page 73: Det-50 Board

    DET-50 Board Preparation Remove the inside panel assembly. (Refer to “2-3-1. Inside Panel Assembly”) Remove the LCD assembly. (Refer to “2-3-3. LCD Assembly”) Procedure Turn the hinge assembly, and remove the two screws. Hinge assembly P1.7 x 2.5 2-19 PXW-X500...
  • Page 74 When installing the hinge harness protection sheet, install it to inside between the switch (DET-50 board) and LCD hinge harness protector. Rotating shaft of the hinge assembly Switch (DET-50 board) LCD hinge harness protector Hinge harness protection sheet Rotating part of the hinge assembly 2-20 PXW-X500...
  • Page 75 Release the three claws, and remove the DET-50 board from the LCD hinge SW holder. LCD hinge SW holder Claw DET-50 board P1.7 x 2.5 Claws A part of the hinge assembly Install the removed parts by reversing the steps of removal. 2-21 PXW-X500...

  • Page 76: Front Section

    Remove the seven screws to detach the front separator. Front separator PSW2 x 5 PSW2 x 5 PSW2 x 5 PSW2 x 5 Note When installing the front separator, tighten the screws in order of (a), (b) and others. 2-22 PXW-X500...
  • Page 77 Disconnect the harness from the connector (CN002) on the TG-287 board. Fine-wire coaxial cable TG-287 board CN011 CN002 Tape AS Harness Harness Tape AS Note When installing the tape AS, fixing the harness as shown in the figure. Remove the four screws. B3 x 8 B3 x 8 2-23 PXW-X500...
  • Page 78 Release the two harnesses from the clamper. Disconnect the two harnesses from the two connectors (CN6, CN9) on the MB-1210 board, and remove the front assembly. (MB-1210 board) (MB-1210 board) Front assembly Harness Clamper Install the removed parts by reversing the steps of removal. 2-24 PXW-X500...

  • Page 79: Ccd Block Assembly

    Note Do not directly touch shield finger (LM). Be careful not to get hurt with the edges when handling them. Knob shaft CCD block assembly HEXAGON M3 x 8 Set screw Shield finger (LM) Mount lever Filter knob 2-25 PXW-X500...
  • Page 80 Do not directly touch shield finger (LM). Be careful not to get hurt with the edges when handling them. Screw holes Back view Shield finger (LM) Screw holes Projection Shield finger (LM) Projection Screw holes Front panel Front panel Screw holes Hole 2-26 PXW-X500...
  • Page 81 Mount lever Locking compound HEXAGON M3 x 8 Turn the knob shaft and set the filter ID plate on the SE-1155 board to the orientation as shown in the figure. Back view Filter ID plate SE-1155 board 2-27 PXW-X500...
  • Page 82 Set the filter knob at a position where a number “2” faces up and secure it with a set screw. Top view Set screw Filter knob 2-28 PXW-X500...

  • Page 83: Dc Fan (30 Square)

    Remove the FM shield (MF). FM shield (MF) Fan holder (CCD) Main frame FM shield (MF) Note When installing the FM shield (MF), press the lower edge of the FM shield (MF) against the main frame in the direction of the arrow. 2-29 PXW-X500...
  • Page 84 Release the two claws, and remove the DC fan (30 square). (MB-1210 board) Claw Claw PSW2 x 5 DC fan (30 square) assembly Note When installing the harness, arrange the harnesses as shown in the figure. Harness Harness (MB-1210 board) 2-30 PXW-X500...
  • Page 85 • Align the notch of the fan holder (CCD) with the harness of the DC fan (30 square). • Fold the harness by the FM shield (CCD FAN). Install the removed parts by reversing the steps of removal. 2-31 PXW-X500...

  • Page 86: Wi-Fi Module/Sd-58 Board

    Remove the tape AS, and release the fine-wire coaxial cable and the harness. Tape AS Fine-wire coaxial cable Harness CN301 (RE-326 board) Remove the heat sink (WA). Remove the three screws. Remove the heat sink (WA), while releasing the boss from the hole. Heat sink (WA) PSW2 x 5 Boss 2-32 PXW-X500...
  • Page 87 Remove the tape AS. Tape AS 2-33 PXW-X500...
  • Page 88 Fine-wire coaxial cable Fine-wire coaxial cable Harness CN11 PSW2 x 5 CN14 CN12 WiFi module Radiation sheet C Radiation sheet D Note When connecting the fine-wire coaxial cable, connect the fine-wire coaxial cable which is marked to the connector (CN14). 2-34 PXW-X500...
  • Page 89 Release the fine-wire coaxial cable from the clamper, and remove the bracket (WA) assembly. WRR case Harness Fine-wire coaxial cable Clamper Bracket (WA) assembly SD-58 board Tape AS CN003 PSW2 x 5 Tape AS Harness WRR case Note When installing the tape AS, arrange the harness as shown in the figure. 2-35 PXW-X500...
  • Page 90 • Connect the connector portion which is not marked of one of the two to the connector (CN001) on the SD-58 board. • When the fine-wire coaxial cable is replaced, mark at the connector portion of one of the two. Install the removed parts by reversing the steps of removal. 2-36 PXW-X500...

  • Page 91: Board

    PSW2 x 5 PSW2 x 5 (MB-1210 board) CN300 PSW2 x 5 Note When installing the RE-326 board, tighten the screws in the order of (a) to (d). Install the removed parts by reversing the steps of removal. 2-37 PXW-X500...

  • Page 92: Board

    PSW2 x 5 (MB-1210 board) PSW2 x 5 CN101 PSW2 x 5 Note When installing the AU-360 board, tighten the screws in the order of (a) to (d). Install the removed parts by reversing the steps of removal. 2-38 PXW-X500...

  • Page 93: Board

    Remove the seven screws to detach the front separator. Front separator PSW2 x 5 PSW2 x 5 PSW2 x 5 PSW2 x 5 Note When installing the front separator, tighten the screws in the order of (a), (b) and others. 2-39 PXW-X500...
  • Page 94 Remove the DCP-67 board. Disconnect the DCP-67 board from the connector (CN100) on the DPR-362 board. Remove the radiation sheet. DCP-67 board CN0100 (DPR-362 board) CN700 Radiation sheet Install the removed parts by reversing the steps of removal. 2-40 PXW-X500...
  • Page 95 Radiation sheet B PSW2 x 5 Note In the case of dropping of the radiation sheet G, the radiation sheet B and the radiation sheet 490615, attach their parts to the heat sink (HPR-A) as shown in the figure. 2-41 PXW-X500...
  • Page 96 Coaxial cable (Black) Tape AS Coaxial cables (Gray, Yellow) Coaxial cable (Red) Note When connecting the coaxial cables, connect the coaxial cables to correct connectors. Note When installing the tape AS, fix the coaxial cables as shown in the figure. 2-42 PXW-X500...
  • Page 97 Remove the four screws, and disconnect the HPR-53 board from the connector (CN6800) on the DPR-362 board. HPR-53 board PSW2 x 5 CN100 CN6800 (DPR-362 board) 2-43 PXW-X500...
  • Page 98 In the case of dropping the two radiation sheets (E), attach their sheets at the location as shown in the following figure. Two radiation sheets (L) DPR-362 board Install the removed parts by reversing the steps of removal. 2-44 PXW-X500...
  • Page 99 Fine-wire coaxial cable DPR-362 board CN5202 CN5201 CN5400 Clamper CN2302 CN SDI3 CN SDI2 Coaxial cable (White) CN SDI1 Coaxial cable (Gray) Coaxial cable (Yellow) Note When connecting the coaxial cables, connect the coaxial cables to correct connectors. 2-45 PXW-X500...
  • Page 100 Release the fine-wire coaxial cable from the clamper. Outside side Fine-wire coaxial cable Clamper Fine-wire coaxial cable RE-326 board RE-326 board Note When fixing the fine-wire coaxial cable to the clamper, pass the fine-wire coaxial cable into the clamper and draw out it to outside. 2-46 PXW-X500...
  • Page 101 Remove the two screws and the two hexagonal supports, and disconnect the DPR-362 board assembly from the connector (CN3) on the MB-1210 board. DPR-362 board assembly Hexagonal supports MB-1210 board CN5200 PSW2 x 5 2-47 PXW-X500...
  • Page 102 (L), attach their sheets at the location as shown in the following figure. DPR-362 board Radiation sheets C Radiation sheets (L) (Stacked in pairs) Radiation sheet (L) Radiation sheet (0707t3) Radiation sheet 081015 Radiation sheet (L) Install the removed parts by reversing the steps of removal. 2-48 PXW-X500...
  • Page 103 “2-3-1. Inside Panel Assembly”) Remove the heat sink (HPR-A). (Refer to “2-10. HPR-53 Board”) Procedure Remove the two screws, and disconnect the harness from the connector (CN200) on the EC-82 board. PSW2 x 5 Harness CN200 (EC-82 board) 2-49 PXW-X500...
  • Page 104 Remove the EC-82 board assembly. Remove the screw, and draw the EC-82 board assembly. Disconnect the fine-wire coaxial cable from the connector (CN100) on the EC-82 board. Boss Fine-wire coaxial cable CN100 (EC-82 board) Hole PSW2 x 5 EC-82 board assembly 2-50 PXW-X500...
  • Page 105 • In the case of dropping the two radiation sheets (4535t1), attach their sheets at the location as shown in the following figure. EC-82 board Radiation sheet (4535t1) Install the removed parts by reversing the steps of removal. 2-51 PXW-X500...

  • Page 106: Dc Fan (40 Square)

    Disconnect the harness from the connector (CN13) on the MB-1210 board. Clamper Fine-wire coaxial cable Harness Tape AS Duct box Harness CN13 (MB-1210 board) Note When connecting the harness, arrange the harness under the duct box as shown in the figure. 2-52 PXW-X500...
  • Page 107 Remove the two screws, and draw the duct box assembly. Duct box assembly PSW2 x 5 PSW2 x 5 2-53 PXW-X500...
  • Page 108 • Confirm the direction of the label of DC fan (40 square) and the position of the arrow molding. Confirm the position of the arrow molding on the fan cushion (JMC). Fan cushion (JMC) Fan cushion (JMC) Duct A Hole Hole 2-54 PXW-X500...
  • Page 109 Install the removed parts by reversing the steps of removal. 2-55 PXW-X500...

  • Page 110: Io-275 Board, Dif-232 Board

    Procedure Remove the screw to detach the connector cap. Connector cap Special screw Remove the four screws, and draw the connector box assembly in the direction of the arrow. B3 x 8 B3 x 8 Connector box assembly 2-56 PXW-X500...
  • Page 111 (DIF-232 board) Fine-wire coaxial cable Harness Remove the harness guard (CN BOX). Harness guard (CN BOX) DIF-232 board Harness guard (CN BOX) IO-275 board Note When installing the harness guard (CN BOX), install it as shown in the figure. 2-57 PXW-X500...
  • Page 112 DIF-232 board P1.7 x 4 Cushion (HDMI) Adhesive bond Note When installing the shield form (10x5), apply the adhesive bond at the locations as shown in the figure. Install the removed parts by reversing the steps of removal. 2-58 PXW-X500...

  • Page 113: Connector Box Section

    When installing the tape 50, install it at the location as shown in the following figure. Note When connecting the harnesses, arrange the harnesses as shown in the following figure. Battery harness Tape 50 DC-IN harness About 25mm Battery harness About 30mm 2-59 PXW-X500...
  • Page 114 MB-1210 board Fine-wire coaxial cable the DC-OUT Note When connecting the harnesses and flexible flat cable, arrange the fine-wire coaxial cable as shown in the figure. Remove the screw to detach the connector cap. Connector cap Special screw 2-60 PXW-X500...
  • Page 115 Disconnect the harness from the connector (CN23) on the MB-1210 board, and remove the connector box assembly. CN23 (MB-1210 board) B3 x 8 Harness B3 x 8 Connector box assembly Install the removed parts by reversing the steps of removal. 2-61 PXW-X500...

  • Page 116: Sw-1632 Board, Axm-52 Board

    Remove the connector box assembly . (Refer to “2-15-1. Connector Box Assembly”) Procedure Remove the tape 50 and the three tapes AS, and release the DC-IN harness and the three coaxial cables. Tape 50 Tapes AS DC-IN harness Coaxial cables Tape AS About 10mm 2-62 PXW-X500...
  • Page 117 Disconnect the harness from the connector (CN302) on the SW-1632 board. Remove the two drop protection toggle cushions. Remove the two screws to detach the bracket (SW). Harness PSW2 × 5 Drop protection toggle cushions CN302 SW-1632 board Bracket (SW) 2-63 PXW-X500...
  • Page 118 Strongly pull the lever in the direction of arrow B while pushing the it in the direction of arrow A, to remove the lever. Cross-section view of the connector Lever Connectors Levers Remove the six screws to detach the AXM-52 board assembly. AXM-52 board assembly P2.6 x 5 2-64 PXW-X500...
  • Page 119 Remove the two drop protection cushions and the two slide SW knobs from the two switches on the AXM-52 board. Drop protection cushion Drop protection cushion Slide SW knob Slide SW knob CN106 CN107 AXM-52 board Harness Switches Protection sheet (AXM) Flexible flat cable Install the removed parts by reversing the steps of removal. 2-65 PXW-X500...

  • Page 120: Mb-1210 Board

    Disconnect the five harnesses from the five connectors (CN5, CN10, CN12, CN14, CN19) on the MB-1210 board. Disconnect the flexible flat cable from the connector (CN4) on the MB-1210 board. Harnesses Harnesses Flexible flat cable CN14 CN12 MB-1210 board CN19 CN10 Harness 2-66 PXW-X500...
  • Page 121 Loosen the two screws (with drop-safe) and remove the shoulder pad assembly. Remove the screw to detach the bottom cover. PSW2 x 5 Bottom cover Screws (with drop-safe) Shoulder pad assembly Remove the seven screws. Bottom view PSW2 x 5 PSW2 x 5 MB-1210 board 2-67 PXW-X500...
  • Page 122 Remove the two screws to detach the MB bracket (A). MB bracket (A) PSW2 x 5 MB-1210 board PSW2 x 5 Harness CN18 PSW2 x 5 MB bracket (front) Install the removed parts by reversing the steps of removal. 2-68 PXW-X500...

  • Page 123: Gp-1019 Board, Cn-3723 Board

    Disconnect the flexible board the connector (CN001) on the CN-3723 board. Remove the screw to detach the CN-3723 board. PSW2 x 5 PSW2 x 5 Flexible board GP-1019 board CN001 CN-3723 board CN005 Harness Install the removed parts by reversing the steps of removal. 2-69 PXW-X500...

  • Page 124: Sw-1652 Board

    Handle top cover assembly B2 x 5 Remove the handle sealing (B), and disconnect the harness. Remove the handle sealing (B). Disconnect the harness from the connector (CN005) on the CN-3723 board. CN005 CN-3723 board Handle sealing (B) Harness 2-70 PXW-X500...
  • Page 125 Remove the SE-1652 board. Disconnect the harness from the connector (CN1) on the SE-1652 board. Remove the two screws to detach the SE-1652 board. PSW2 x 5 SW-1652 board Harness Install the removed parts by reversing the steps of removal. 2-71 PXW-X500...

  • Page 126: Board

    2-19. LED-529 Board Procedure Remove the ornamental plate (USB). Open the cap (USB2). Remove the two screws to detach the ornamental plate (USB). Cap (USB2) B2 x 5 Ornamental plate (USB) 2-72 PXW-X500...
  • Page 127 Remove the shoe cover assembly and tally cover. Loosen the screw (with drop-safe) and remove the shoe cover assembly. Remove the screw. Remove the tally cover, while avoiding the switch. Screws (with drop-safe) Shoe cover assembly Hole B2 x 5 Tally cover Switch 2-73 PXW-X500...
  • Page 128 Release the boss, and pull up the LED-529 board assembly. Disconnect the fine-wire coaxial cable from the connector (CN001) on the LED-529 board, and remove the LED-529 board assembly. B2 x 5 LED-529 board assembly CN001 Fine-wire coaxial cable Boss 2-74 PXW-X500...
  • Page 129 Install the drop protection cushion to the toggle switch as shown in the figure. Note Install the shield form (10X10X20) to the shield (USB) as shown in the figure. Install the removed parts by reversing the steps of removal. 2-75 PXW-X500...

  • Page 130: Handle Assembly

    Fine-wire coaxial cable Disconnect the harness A. Disconnect the harness A from the connector (CN800) on the RE-326 board. Release the harness A from the notch of the cushion (Light). Notch of the cushion (Light) Harness A CN800 (RE-326 board) 2-76 PXW-X500...
  • Page 131 Draw out the harness A from space between the HN-415 board and the main frame, and remove the handle assembly. B3 x 8 B3 x 8 Handle assembly B3 x 8 B3 x 8 Harness A Harnesses HN-415 board Main frame CN51 Install the removed parts by reversing the steps of removal. 2-77 PXW-X500...

  • Page 132: Board

    Disconnect the harnesses and the fine-wire coaxial cable. Disconnect the three harnesses from the three connectors (CN2, CN3, CN7) on the HN-415 board. Disconnect the fine-wire coaxial cable from the connector (CN4) on the HN-415 board. CN-3736 board Harnesses Fine-wire coaxial cable Harness HN-415 board 2-78 PXW-X500...
  • Page 133 Remove the VF GND plate and the VFGN_B cushion from the HN-415 board. PSW2 x 5 HN-415 board VF GND plate VFGN_B cushion Connector cap Attached screws Install the removed parts by reversing the steps of removal. 2-79 PXW-X500...

  • Page 134: Board

    Pull up the KY-736 board from the two bosses. Disconnect the harness from the connector (CN1) on the KY-736 board, and remove the KY-736 board. KY-736 board Harness Bosses Install the removed parts by reversing the steps of removal. 2-80 PXW-X500...
  • Page 135 Draw out the two coaxial cables and the fine-wire coaxial cable, and remove the 50P CN assembly. Screws (with drop-safe) 50P cover assembly Fine-wire coaxial cable 50P CN assembly Coaxial cables B2 x 5 CN SDI3 Coaxial cable (White) DPR-362 board 2-81 PXW-X500...
  • Page 136 Protection packing Coaxial cable (Black) Fine-wire coaxial cable CI-50 board Coaxial cable (White) Shield forms (5X1) Note When connecting the coaxial cables, connect the coaxial cables to correct connectors. Install the removed parts by reversing the steps of removal. 2-82 PXW-X500...

  • Page 137: Error Code

    DIABLO: Media processor IC2900 (DPR-362 board) ROSETTA: Video signal processor IC0100 (DPR-362 board) DARWIN: Power controller IC5002 (DPR-362 board) GMON: Monitor FPGA IC2301 (DPR-362 board) ETC: Interface FPGA IC100 (HPR-53 board) Audio block VF VINE: IC4903 (DPR-362 board) KEY VINE: IC302 (FP-208 board) Continued PXW-X500...
  • Page 138 Communication between CPU and peripheral devices is not completed in the specified time period. Failure of flash memory configuration Communication error of flash memory (or eMMC) Communication error of EEPROM Communication error of SDRAM Communication error of recording media Error of temperature sensor Communication error of RTC PXW-X500...

  • Page 139: Main Code 95

    Communication error of RTC (Real Time Clock) IC4600 (DPR-362 board) Communication error of reference clock generator IC2002 (DPR-362 board) Interrupt signal “VFSYNC_A to C” does not come. Interrupt signal “VFSYNC_A to C” does not come. Interrupt signal “VFSYNC_A to C” does not come. PXW-X500...
  • Page 140 SHEDAX to Flash Memory Boot error (IC503/DCP-67 board) SHEDAX to Flash Memory Verify error (IC503/DCP-67 board) TGX to Flash Memory Verify error (IC104/TG-287 board) Communication error (ROSETTA to wireless audio receiver) Wireless DSP to SD Card Memory Verify error (U11/WM board) PXW-X500...

  • Page 141: Main Code A0

    3-4. Main Code A0 When errors of the system of the software originating are detected, the following error codes are displayed. A0-000 PXW-X500...

  • Page 142: Main Code 01

    3-5. Main Code 01 When Diablo and Curie (IC1000/HPR-53 board) interface is abnormal, the following error codes are displayed. E01-035 PXW-X500...

  • Page 143: Service Menu

    Black shading H Para correction amount adjustment Black V Saw -99 to +99 ±0 Black shading V Saw correction amount adjustment Black V Para -99 to +99 ±0 Black shading V Para correction amount adjustment Black Saw/Para On/Off Black shading correction On/Off Continued PXW-X500...
  • Page 144 (Display only) (Display only) Displays the temperature of the image sensor Main Board Tem- xx℃ (Display only) (Display only) Displays the internal temperature perature (around main board) Net-Func Log Dump Execute/Cancel Cancel Save the log of the Wireless Module Continued PXW-X500...
  • Page 145 (Display only) (Display only) Displays the device (KYVine) version. SHDX xx.xx (Display only) (Display only) Displays the device (SHDX) version. xx.xx (Display only) (Display only) Displays the device (TGX) version. xx.xx (Display only) (Display only) Displays the device (WM) version. PXW-X500...

  • Page 146: Description Of Menu

    Once the service menu is displayed, it is displayed only by pressing the MENU button unless power is turned off. Note When the service menu is displayed by only pressing the MENU button, do not perform the operation of file menu. (The items in save and load may not be able correctly.) PXW-X500...

  • Page 147: Description Of Service Menu

    • Grayscale chart (16:9) Preparation Connect a waveform monitor to the unit. OUTPUT/DCC switch (inside panel) → CAM WHITE BAL switch (inside panel) → PRST Shoot the grayscale chart so that the chart frame is aligned with the underscanned monitor frame. PXW-X500...
  • Page 148 • Make the following settings with the menu. MENU： PAINT PAGE： Switch Status ITEM： Gamma → On ITEM： Detail → On White Shading Adjustment The white Shading menu enables the adjustment of the horizontal and vertical Saw correction level and parabola correction level. PXW-X500...
  • Page 149 Shoot an all white pattern over the entire frame of monitor screen. Adjustment Procedure Adjust lens iris until white level becomes approximately 80％. If the lens iris value is larger than F5.6, adjust the incoming light intensity by using electronic shutter for the lens iris setting of smaller than F5.6. PXW-X500...
  • Page 150 Master Black Master black level is set. Master Gain (TMP) Master gain value is selected. Black Shading Adjustment Method Preparation Connect an HD waveform monitor to the SDI OUT terminal. HD waveform monitor setting: RGB mode PXW-X500...
  • Page 151 When Master Gain (TMP) is selected, gain can be increased temporarily so that the auto-white shading and auto-black shading execution results can be monitored in this menu. The gain value set here is negated by pressing the GAIN switch or executing AWB, ABB, or AGC. PXW-X500...
  • Page 152 Execution of APR (Auto Pixel Registration) • In APR, white point auto detection and register about RPN (Residual Point Noise) correction by concealment can be executed. • When APR is selected, "Execute" and "Cancel" appear. When "Execute" is selected, APR is executed. 4-10 PXW-X500...
  • Page 153 When the Cursor menu is turned On, the crosshair cursor indicating the RPN correction position is displayed superimposed on the video signal. Signal of the pixel located at the center of the crosshair cursor is replaced by black. The Cursor setting is always turned Off when the power is turned On. 4-11 PXW-X500...
  • Page 154 The RPN data that is registered at the factory and the RPN data is manually registered cannot be deleted by the Reset. When the Reset menu is selected, the Execute and Cancel appear. In addition, selecting Execute starts reset of RPN. 4-12 PXW-X500...
  • Page 155 Set the Clock Out Select to ON, master clock signal can be output to VIDEO OUT connector. Clock Frequency The Clock Frequency setting allows adjustment of the 27 MHz master clock frequency. Adjusting VCO Preparation Connect a frequency counter to the VIDEO OUT connector. 4-13 PXW-X500...
  • Page 156 Executing Log Dump acquires the error log information and saves it to the active, writable media. Select Log Dump under the INFORMATION menu, and execute it with Execute. The process is complete when “Dump OK” is displayed as a result. Do not remove the media until this message appears. 4-14 PXW-X500...
  • Page 157 • SHDX: IC503 (DCP-67 board) version • TGX: IC103 (TG-287 board) version • WM: U11 (WM board) version Note Version (Ver up 2.0 before) may be displayed by mistake. Check the proxy recording/wireless LAN connection function (WM) by Maintenance→Version →Net-Func Version. 4-15 PXW-X500...

  • Page 159: Spare Parts

    Therefore, specified parts should be used in the case 指定の部品を使ってください。 of replacement. 2. Standardization of Parts 2.  部品の共通化 Some repair parts supplied by Sony differ from those ソニーから供給する補修用部品は，セットに使われ used for the unit. These are because of parts common- ているものと異なることがあります。 ality and improvement.

  • Page 160: Exploded Views

    3-742-074-13 s SCREW (+B 3X8) 3-855-938-01 s SCREW [+PSW 2x5] 3-965-077-02 s SCREW, SPECIAL (M2) [M2x2.4] 4-265-547-01 s GASKET UA 4-545-523-01 s SEPARATOR, FRONT 4-545-572-01 s COVER (NO DONGLE) 4-549-570-01 s SHEET (70X40), MG09 4-446-014-01 s TAPE AS (2040) PXW-X500...
  • Page 161 3-855-938-01 s SCREW [+PSW 2x5] 3-870-153-11 s SHEET (4.5X30), ADHESIVE 3-965-077-02 s SCREW, SPECIAL (M2) [M2x2.4] 4-168-993-01 s CAP, BNC 4-281-496-01 s GASKET , PRISM BLOCK 4-545-569-01 s PLATE, SLOT SHIELD 4-549-831-01 s SPACER (ESCUTCHEON) 4-558-874-01 s STOPPER (OPEN) 2 PXW-X500...
  • Page 162 A-2061-160-A s LID ASSY, SLOT 3-080-206-21 s SCREW, TAPPING, P2 3-223-464-01 s SPACER (SLIDER) 3-603-680-02 s STAINLESS SCREW +B3X12 3-657-841-31 s SPACER (2X2.5) 3-855-938-01 s SCREW [+PSW 2x5] 4-545-566-01 s SHEET (USB), WP 4-562-622-01 s SHEET (S), WP 4-562-623-01 s SHEET (L), WP PXW-X500...
  • Page 163 3-870-138-11 s SHEET,HARNESS DROP PROTECTION 3-870-139-01 s SPRING, HELICAL TORSION 4-264-413-01 s PLATE BLIND, HING 4-264-414-11 s PAD, INSIDE(R) 4-264-430-01 s PAD(L), INSIDE 4-446-014-01 s TAPE AS (2040) 4-545-555-01 s INSULATING SHEET, FP 7-685-146-11 s SCREW +P 3X8 TYPE2 NON-SLIT PXW-X500...
  • Page 164 3-969-387-01 s FOOT, RUBBER 4-264-412-01 s LCD PANEL POPUP 4-264-416-01 s SPRING, COMPRESSION 4-467-510-01 s HINGE, MENU DOOR 4-468-152-01 s LABEL, FILTER INDICATION 4-472-861-01 s VR KNOB (S) 4-472-862-01 s VR KNOB (2) 4-562-472-01 s PLATE, SW ORNAMENTAL 4-644-879-11 s FOOT (B-2) PXW-X500...
  • Page 165 A-2058-611-A s MOUNTED CIRCUIT BOARD, FP-208 1-528-174-72 s BATTERY, LITHIUM (CR2032 TYPE) 3-796-995-01 s DROP PROTECTION(SW) 3-796-996-03 s KNOB(A),SW 3-797-016-11 s CUSHION VOLUME AUDIO 3-855-938-01 s SCREW [+PSW 2x5] 4-472-863-01 s KNOB (B), SWITCH 4-472-864-01 s KNOB (C), SWITCH PXW-X500...
  • Page 166 3-629-446-04 s SLEEVE(ENC2) 3-629-447-03 o SLEEVE(ENC1) 3-647-917-02 s PLATE,EARTH 3-692-111-02 s KNOB,RE 3-724-758-02 s RUBBER (PUSH), DROP PROTECTION 3-797-073-01 s RES,SW PUSE 3-797-084-01 s HOLDER SPEAKER 3-855-938-01 s SCREW [+PSW 2x5] 3-868-597-11 s SHEET(SP),DROP PROTECTION 3-870-098-11 s CUSHION, POWER SWITCH PXW-X500...
  • Page 167 [P2x2.5] 3-989-735-11 s SCREW (M1.7), LOCK ACE, P2 [P 1.7x2.5] 4-264-420-01 s COVER, LCD 4-264-422-01 s (FRONT)COVER HINGE 4-300-095-11 s SHEET,HINGE HARNESS PROTECTION 4-540-345-01 s LCD SEALING 4-540-346-01 s LCD WINDOW 4-549-568-01 s GASKET (T3X5X15) 4-558-188-01 s BEZEL, LCD PXW-X500...
  • Page 168 3-796-982-03 s HOLDER, LENS MOUNT 3-797-080-01 s DROP PROTECTION(MIC VR) 3-854-361-01 s GUARD VOLUME FRONT 3-854-362-01 s HOLDER GUARD 3-854-363-01 s SLIDER 3-855-938-01 s SCREW [+PSW 2x5] 3-879-494-02 s FINGER (LM), SHIELD 3-965-077-02 s SCREW, SPECIAL (M2) [M2x2.4] 3-986-632-02 s BUTTON,VTR START 5-10 PXW-X500...
  • Page 169 3-729-076-11 s SCREW (+B) (2X4) 3-776-897-02 s GUIDE PLATE 3-854-378-01 s PLATE,FILTER ID 3-855-938-01 s SCREW [+PSW 2x5] 4-119-228-01 s GASKET (VF) 4-264-432-01 s CHB CASE 4-549-569-01 s SHEET (70X60), MG10 4-478-477-01 s MG SHEET (30X30) 7-627-452-18 s SCREW,PRECISION +K 2X3 5-11 PXW-X500...
  • Page 170 3-742-074-13 s SCREW (+B 3X8) 1015 3-805-990-01 s HANDLE TOP COVER LID 7-621-775-50 s SCREW +B 2.6X10 1016 3-855-938-01 s SCREW [+PSW 2x5] 1017 3-868-631-01 s CUSHION,DROP PROTECTION 1018 3-870-241-02 s COVER, LAMP 1019 3-870-243-02 s SEAL, LAMP COVER 5-12 PXW-X500...
  • Page 171 3-895-622-01 s RING (DIA. 5), O 1113 4-168-997-02 s GRIP 1114 4-446-005-12 s GASKET MAIN L 1115 4-549-633-01 s KNOB, LOCK 1116 4-558-057-01 s SHOE,SLIDE 1117 4-558-058-01 s LEVER, LOCK 1118 4-558-190-01 s LOCK,SCREW 1119 4-559-455-01 s PIN, STOPPER 5-13 PXW-X500...
  • Page 172 4-427-952-02 s RADIATION SHEET D 1213 4-446-014-01 s TAPE AS (2040) 1214 4-458-849-01 s FAN HOLDER 1215 4-545-524-01 s HEAT SINK (WA) 1216 4-545-534-01 s BRACKET (WA) 1217 4-547-233-01 s FM SHIELD (CCD FAN) 1218 4-547-234-01 s FM SHIELD (MF) 5-14 PXW-X500...
  • Page 173 3-257-200-01 s CLAMP, CORD 1307 3-855-938-01 s SCREW [+PSW 2x5] 1308 4-165-223-01 o SHEET (4535T1), RADIATION 1310 4-468-131-01 s CUSHION, JOINT 1311 4-468-147-01 s SHEET (EC) 1312 4-545-551-01 s SHEET (SXS-MF), RADIATION 1313 4-545-552-01 s SHEET (SXS-MF), SLIDE 5-15 PXW-X500...
  • Page 174 4-427-952-02 s RADIATION SHEET D 1411 4-427-955-02 s RADIATION_SHEET_G 1412 4-446-014-01 s TAPE AS (2040) 1413 4-545-521-01 s HEAT SINK (HPR-B) 1414 4-545-526-01 s SPACER (BSB-2005_5E) 1415 4-545-529-01 s SHEET (HPR-B), SLIDE 1416 4-545-533-01 s HEAT SINK (DPR-B) 5-16 PXW-X500...
  • Page 175 1508 3-616-721-02 o MOUNT (2),V 1509 3-671-893-01 s CLAMP (LOW TYPE) 1510 3-679-687-02 s LOCK,SLIDE 7-621-772-50 s SCREW +B 2X10 7-627-553-38 s SCREW,PRECISION +P 2X3 1511 3-679-688-03 s LEVER,RELEASE 1512 3-680-952-02 o KNOB,RELEASE LEVER 1513 3-697-119-03 s RETAINER 5-17 PXW-X500...
  • Page 176 2-635-562-31 s SCREW(M1.7) [P 1.7x4] 1608 3-694-181-03 s TYPE1,AROCK PRECISION +P2.6X5 1609 3-742-074-13 s SCREW (+B 3X8) 1610 3-855-938-01 s SCREW [+PSW 2x5] 1611 3-965-077-02 s SCREW, SPECIAL (M2) [M2x2.4] 1612 4-545-527-01 s CAP, CN, REAR 1613 4-674-315-01 s SCREW (M2.6X6) 5-18 PXW-X500...
  • Page 177 4-654-273-02 s ACE (M2), LOCK [B 2x5] 1712 1-970-499-11 s SUBHARNESS (DC-IN) 1730 4-674-315-01 s SCREW (M2.6X6) 1713 3-364-941-01 s SCREW (+B) (2.6X5), NYLOK 1714 3-626-781-03 s STOPPER 1715 3-723-097-01 o FOOT, RUBBER 7-688-003-12 s W 3, MIDDLE 5-19 PXW-X500...
  • Page 178 1-837-297-11 s CABLE, FLEXIBLE FLAT (30 CORE) 1807 1-967-683-11 s HARNESS (HDMI) 1808 1-970-446-11 s SUB HARNESS (MB-HN) 1809 3-234-710-01 o SPRING (OPEN),COMPRESSION COIL 1810 3-855-938-01 s SCREW [+PSW 2x5] 1811 4-169-111-01 s KEYSW COVER 1812 4-488-383-01 s TAPE (13X50) //C 5-20 PXW-X500...
  • Page 179 4-000-497-02 s FOAM (ILI), SHIELD 1922 4-468-138-02 s FOAM(7X2), SHIELD 1909 4-138-678-01 s CLAMP, CABLE 1910 4-168-987-02 s COVER BOTTOM 1911 4-169-108-21 s TUBE,DRAIN 1912 4-169-108-31 s TUBE,DRAIN 1913 4-169-114-03 s MESH,BOTTOM 1915 4-446-014-01 s TAPE AS (2040) 5-21 PXW-X500...

  • Page 180: Supplied Accessories

    1-845-063-11 s LAN MODULE, WIRELESS(IFU-WLM3) 3-080-203-31 s SCREW(M2),LOCK ACE,P2 3-688-754-11 s SPRING 3-688-755-13 s SHOE, ACCESSORY 3-704-295-01 o BAG, PROTECTION (550X500) 2pcs 4-279-469-01 s CAP (USB), WATERPROOF 4-545-573-01 s GUIDE, OPERATION 4-545-574-01 s CD-ROM (OPERATION MANUAL) 4-559-711-01 s WIFI GUARD 5-22 PXW-X500...

  • Page 181: Diagrams

    (1/2) RX-136 (BONU)2(ROSE)_DEC_0-3P, IC3602 (XHCI)_(USB3)_DM1/DP1, HP/SP IC9,10 (BONU)2(ROSE)_DEC_0-3N SW,LED (USB3)2(XHCI)_RXDP/N1, EARPHONE WRR_AU1/2 EXT2AU_CH01/23 HPR-53 PCE_P/N CN002 (ROSE)_AU_RECPB_A (XHCI)2(USB3)_TXDP/N1 USB3.0 WIRELESS IC100 BEAUNE WL_DT12/34 MIC I/F (ROSE)_AU_RECPB_B HOST X3600 WRR_DI/DO/CLK/CS/DET USB CONNECTOR (3/6) (ROSE)_AU_PB_A/B 24MHz CN003 SPEAKER AUDIO_BEEP DIABLO_USB_DEVICE_D+/- EARPHONE_L/R,SP+/- PXW-X500...

  • Page 182: Frame Wiring

    COLOR TEMP F-RUN/SET/R-RUN (30 SQUARE) SPEAKER ASSIGN.1-3 PRESET/REGEN/CLOCK ENC-162 ALARM LEVEL/AUDIO IN HP-171 MONITOR WARNING/ACCESS HARNESS DISP SEL HARNESS (RE) HARNESS HOLD (REAREAR) (POWER SW) EARPHONE POWER RESET DISPLAY CN501 CN401 CN403 CN405 BRIGHT ROTALY SW EPR2 UART UART PXW-X500...
  • Page 184 PXW-X500 (SY) Printed in Japan Sony Corporation PXW-X500 (CN) J, E 2014. 11 08 9-878-582-01 © 2014...

Table of Contents

Save PDF
