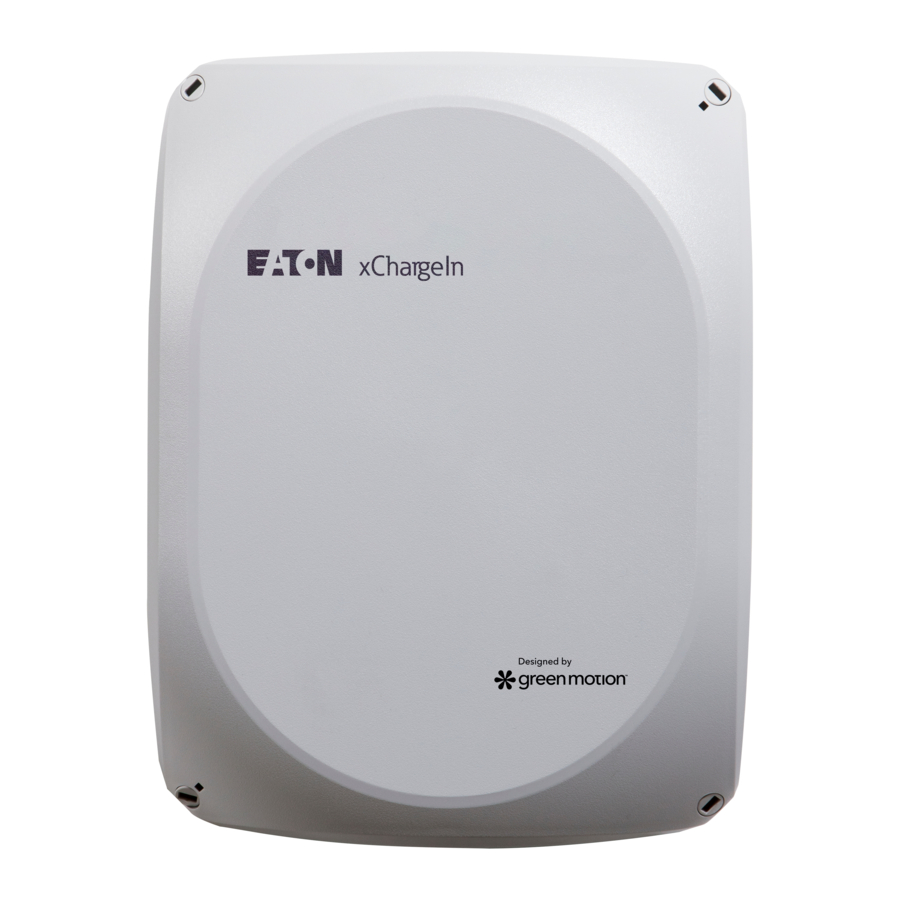

xChargeIn
Frequently Asked Questions
for commissioning and service technicians

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the xChargeIn and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaton xChargeIn

Summary of Contents for Eaton xChargeIn

  • Page 1 Frequently Asked Questions for commissioning and service technicians...

  • Page 2: Table Of Contents

    EATON xChargeIn FAQs commissioning and service technicians Table of contents ASSEMBLY EATON T WHAT LOCATIONS SITES MAY BE HARGE N BE INSTALLED RE SPECIAL TOOLS REQUIRED FOR THE ASSEMBLY INSTALLATION AND INSPECTION HAT ADDITIONAL MATERIAL IS REQUIRED FOR THE INSTALLATION...

  • Page 3: Assembly

    "General criteria for the site selection" chapter. Are special tools required for the assembly, installation, and inspection? Assembly For installing the EATON xChargeIn, you will require a drill and an open-end wrench (13mm/M8). Electrical installation: •...

  • Page 4: Connection And Installation

    (400 V)? A conversion in this case only makes sense with a EATON xChargeIn with Type 2 socket/cable. Can a vehicle be charged with a EATON xChargeIn with Type 1 cable in only single-phase anyway. EATON xChargeIn, FAQs commissioning v2.20...

  • Page 5: How Is The Connection Cable Inserted Into The 2.8 What Is The Purpose Of The Enable Input

    "Commissioning" chapter. Where can I find the technical data for the EATON xChargeIn? You can find the technical data for the EATON xChargeIn in the installation manual in the "Technical data" chapter. How do I test the EATON xChargeIn after installation? The charging station can be placed into a commissioning mode for supporting the initial system test.

  • Page 6: Can Iupdate The Firmware Of The 3.5 Examples For Eaton

    The latest firmware releases including an update manual can be retrieved from the download section at www.eaton.com/evc. Examples for EATON xChargeIn IP addressing using the DIP-switches The EATON xChargeIn uses the binary number for IP addressing. Please see the following examples: Example for address “22”...

  • Page 7: Possible Faults

    The EATON xChargeIn remains black after switching on If the EATON xChargeIn does not display anything after switching on, please check the glass tube fuse on the left hand side of the connection area. For replacing the fuse please see the instructions in the installation manual in the “Replacing the fuse”...
  • Page 8 EATON xChargeIn FAQs commissioning and service technicians Fault 2 - External fault The status LED displays 0010 "white white red white" Check whether a standard-compliant plug is being used Plug Undefined - The plug was not recognized Error Log Entry „2“...

  • Page 9: Fault In The Power Unit

    EATON xChargeIn FAQs commissioning and service technicians Fault 8 - Internal or external fault The status LED displays "red white white white" Check cable and plug for damage and replace the defective components. Start the charging procedure again. If the problem persists, please...
  • Page 10 EATON xChargeIn FAQs commissioning and service technicians Power unit fault 1 – Hardware fault The status LED displays 0001 "blue blue blue red" Please contact your dealer or service partner Hardware fault - Protective contacts in the device are stuck. Switch-on test failed Error Log Entry „8001“...
  • Page 11 EATON xChargeIn FAQs commissioning and service technicians Power unit fault 6 - Configuration or hardware fault The status LED displays 0110 "blue red red blue" Check to see if the DIP switch settings are configured correctly (See installation manual in the "DIP switch settings"...

  • Page 12: Mechanical Damage And Replacement Parts

    The design housing, as well as the cable hanger can be ordered as replacement part. Other defective parts on the EATON xChargeIn must be replaced by EATON in the course of a "Repair Order" (accompanying form). Please contact your dealer or service partner if you have additional questions.
