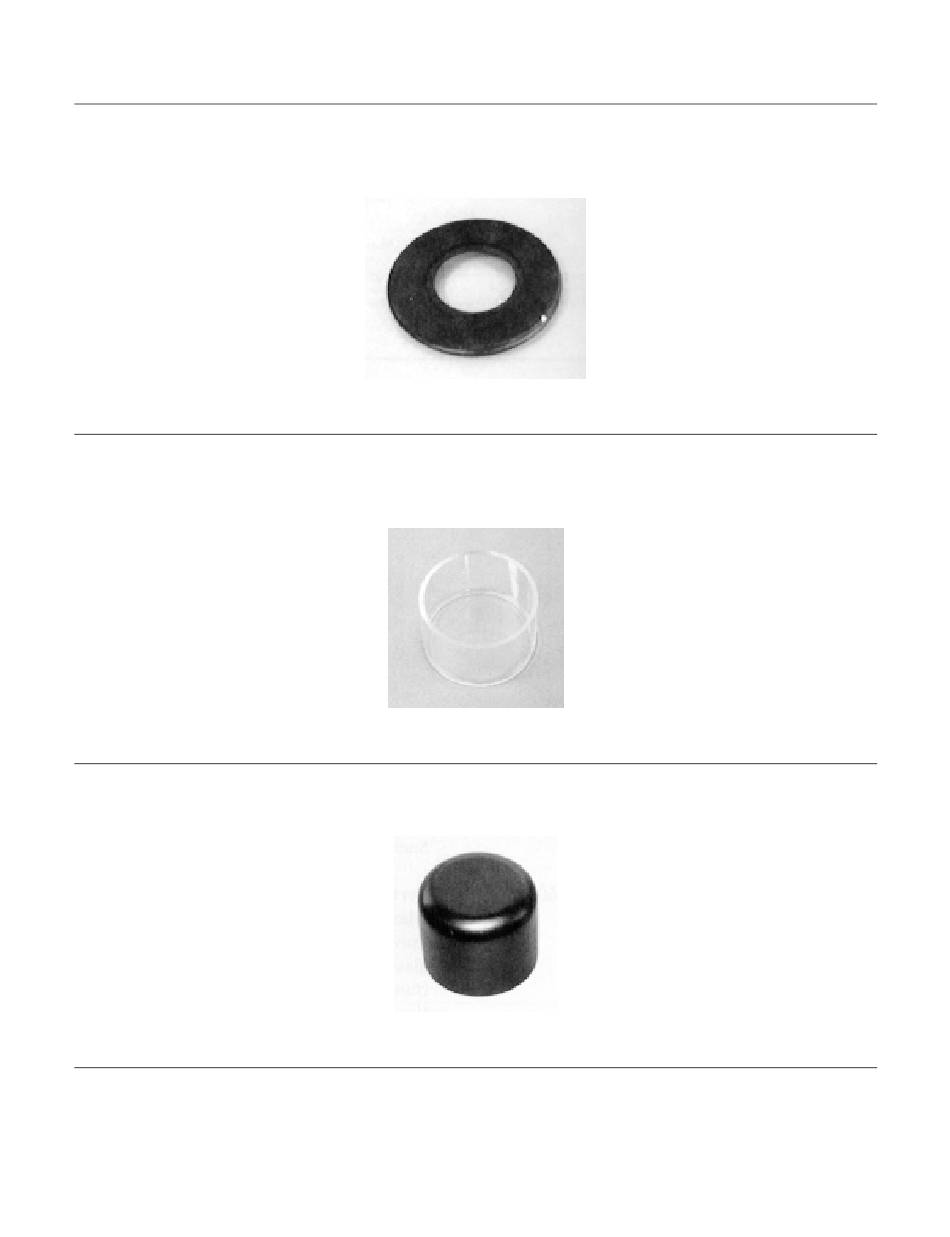

Sample Cup Port Plate

This port insert is specially designed to accommodate the 2.5-inch (64-mm) glass sample cup and to
hold it in the proper position at the sample port. Remove the standard port insert by twisting it until it
pops up. Replace it with the sample cup port plate.

2.5-inch Glass Sample Cup

The sample cup is ideal for the analysis of powders, granules, pellets, and translucent samples. Fill the
cup with sample and situate it in the special port insert (sold separately) at the sample port. The sample
will be measured through the glass bottom of the sample cup.

Sample Cup Opaque Cover

The opaque cover option provides a light trap to exclude the interference of external light on a sample
contained in the 2.5-inch sample cup. It is placed over the filled cup at the sample port.

Ring and Disk Set

The ring and disk set is a plastic ring and ceramic disk designed for use inside the 2.5-inch glass sample
cup (sold separately). The ring and disk set are provided for use when measuring translucent liquids,
transparent liquids, and semi-solids to exclude external light and provide a consistent white background
01/03 Introduction to Your LabScan XE System 2-11
