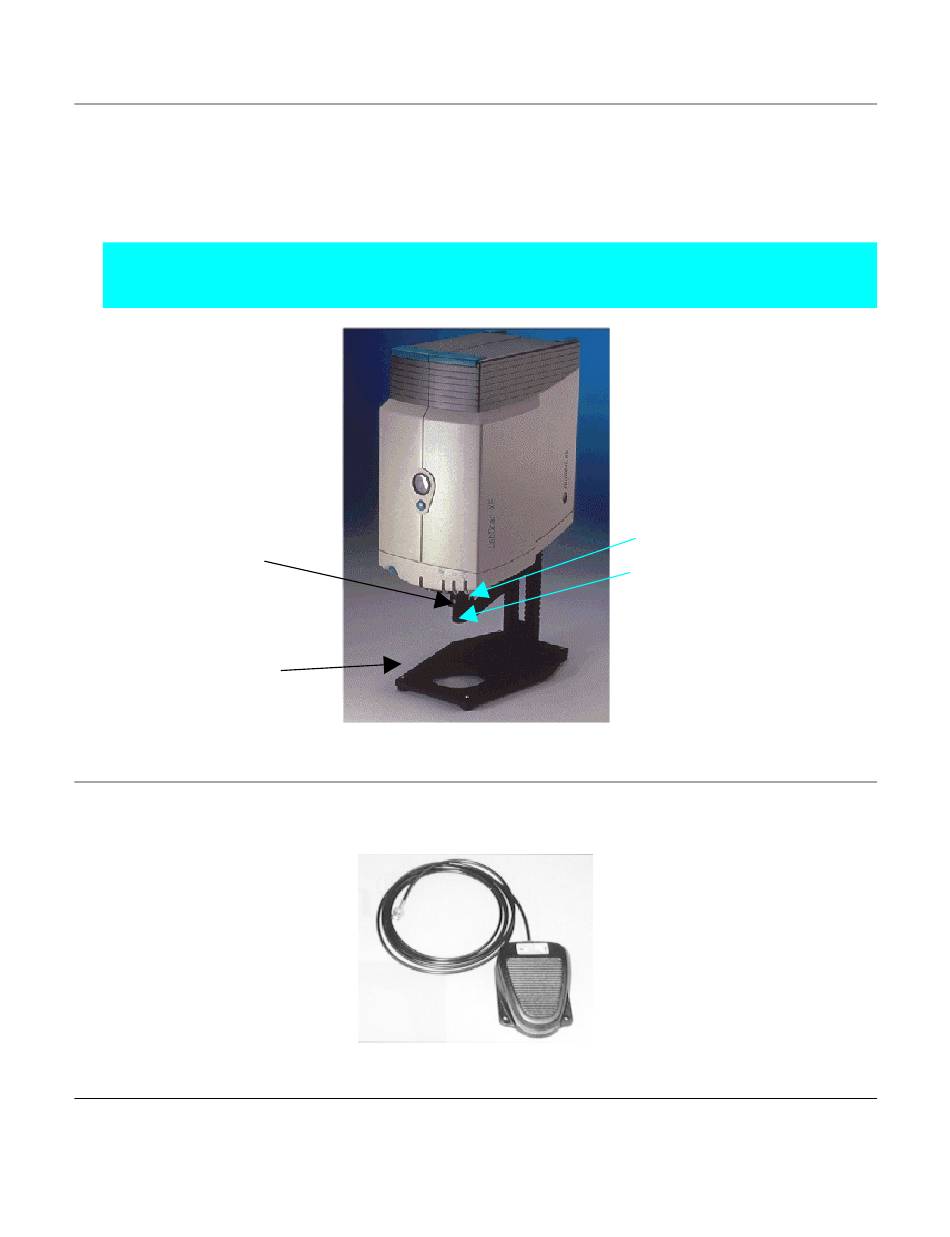

Sensor Port-Down Stand

The sensor stand permits port-down mounting of the sensor. To install the instrument onto the stand,
turn it with the port down and then insert the vertical support of the stand into the mounting port in the
LabScan XE until it stops. Release the clamp arm trigger to raise or lower the clamp arm on the stand to
a position where samples can be held firmly at the sample port using the spring action of the sample
clamp.
Note: If the stand was ordered separately from the instrument, then your mounting port may be
covered. You will need to pry up the plastic cover using a flat-head screwdriver in order to access
the mounting port.
Spring-loaded
sample clamp
Port-down stand

Foot Switch Assembly

Pressing the foot switch performs the same function as the macro switch on the front of the sensor.
Install the foot switch by plugging it into the round connector on the back of the instrument.

Skein Holder

This is a device for measuring yarn skeins. Wind the yarn around the skein holder in multiple taut layers
until it is effectively opaque and is as flat as possible. Secure it in place with the detachable arms on the
01/03
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Introduction to Your LabScan XE System
Clamp arm release trigger
Adjustable clamp arm
