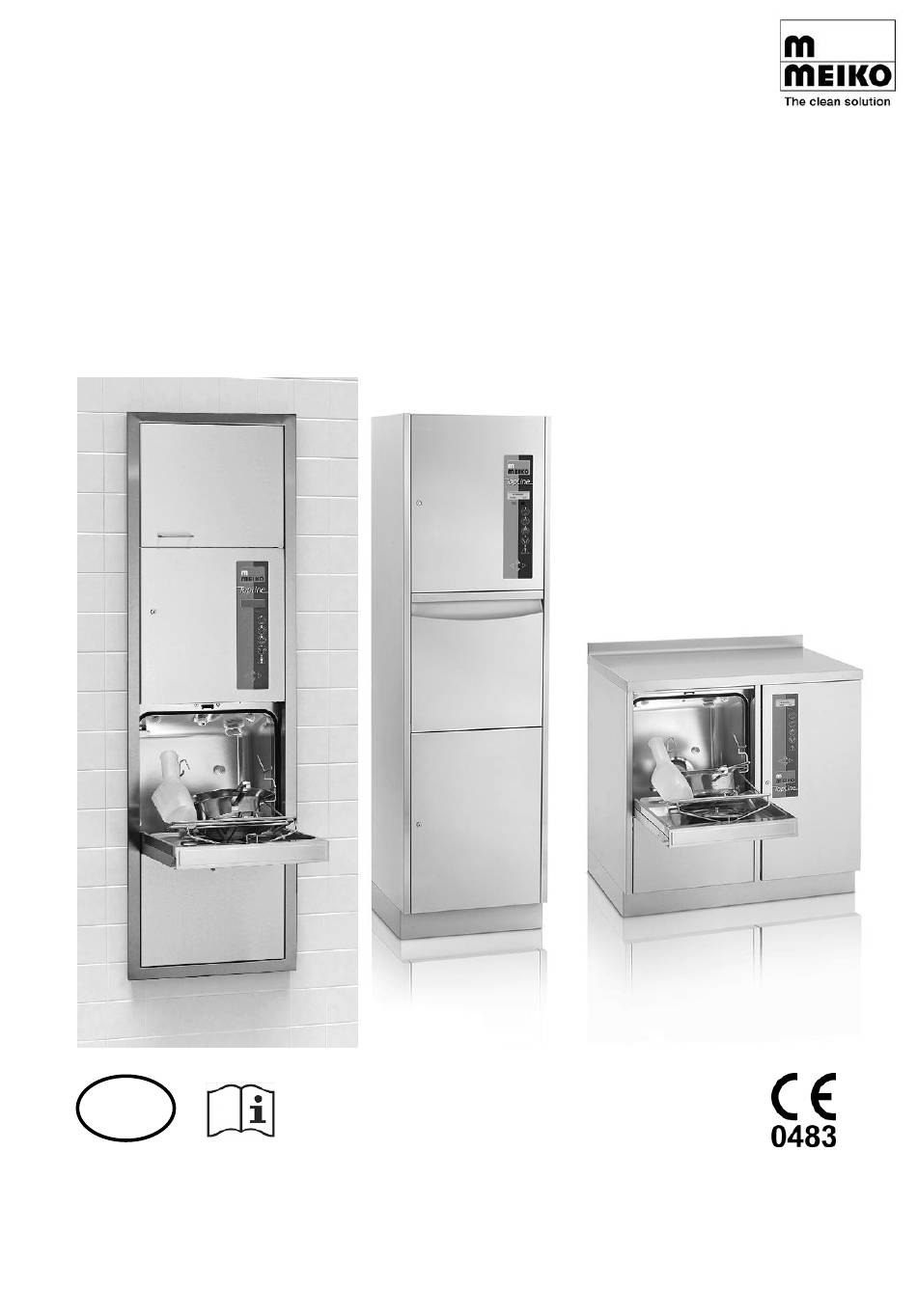

MEIKO TopLine
Washer-disinfector
Instructions for use
EN
9617722 / Valid from: 2005-03 / Update: 2021-03
Read the instructions for use before
using the appliance!
www.meiko.info

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TopLine and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Meiko TopLine

Summary of Contents for Meiko TopLine

  • Page 1 MEIKO TopLine Washer-disinfector Instructions for use Read the instructions for use before using the appliance! 9617722 / Valid from: 2005-03 / Update: 2021-03 www.meiko.info...

  • Page 2: Table Of Contents

    Translation of the “original instructions for use” Contents INFORMATION ON INSTRUCTIONS FOR USE ........5 Product identification Delivery contents Related documents Presentation conventions 1.4.1 Safety symbols in the instructions LIABILITY AND WARRANTY ..............7 SAFETY ....................... 8 Intended purpose Foreseeable misuse Requirements for the personnel Safety information Electromagnetic compatibility...
  • Page 3 MEIKO T opLi ne Clean and disinfect care utensils (programme cycle) 8.2.1 Clean care utensils (basic version of the appliance) 8.2.2 Cancel programme 8.2.3 Selecting the cleaning programme 8.2.4 Automatic door (AT), operation with sensor (option) 8.2.5 Automatic door (AT), operation with foot switch (option) 8.2.6...
  • Page 4 13.2 Disposal of the old appliance INDEX ......................56 NOTES ....................... 58 9617722 4 / 60...

  • Page 5: Information On Instructions For Use

    MEIKO T opLi ne Information on instructions for use The instructions for use are an integral part of the device and must be passed on to all subsequent owners or users. Please read these instructions for use carefully before use. Only through under- standing these instructions for use can errors be avoided and trouble-free oper- ation of the device guaranteed.

  • Page 6: Related Documents

    Related documents In addition to these instructions for use, there are other documents that are available depending on the authorisation: Operator (included in delivery contents) Authorised service technician EC/EU declaration of conformity Installation instructions Brief instructions for use Service instructions Installation and operational quali- Specific positioning of care utensils fication...

  • Page 7: Safety Symbols In The Instructions

    MEIKO T opLi ne 1.4.1 Safety symbols in the instructions Symbol Meaning Warning of hazardous areas Read instructions for use Disconnect before servicing or repair Liability and warranty All of the manufacturer's obligations arise from the relevant purchase contract, which also contains the entire and only valid guarantee provisions. These con- tractually guaranteed provisions shall be neither extended nor restricted as a re- sult of any explanations given in the instructions.

  • Page 8: Safety

    Appliances for installation in ensuite bathrooms of patient rooms in an en- closed space. Only use rinse/water softening agents and detergents in our washer-disinfectors for which MEIKO have given their written approval. Approved products: • Rinse aid/water softener: Doyen SK 22 E / SK 33 E •...

  • Page 9: Foreseeable Misuse

    MEIKO T opLi ne Foreseeable misuse Any use which is not detailed in the section on "Intended purpose" is contrary to the intended use! List of foreseeable misuses: • Emptying of care utensils, although the holder is still equipped with freshly disinfected care utensils.

  • Page 10: Requirements For The Personnel

    Requirements for the personnel • Make sure that only trained and experienced staff operate the washer-disin- fector. • Personnel who have not been briefed or trained may not handle the washer- disinfector. • Make sure that staff learning to use the washer-disinfector are supervised by a trained and experienced operator at all times.

  • Page 11: Safety Information

    MEIKO T opLi ne Safety information • Only use the washer-disinfector according to instructions (see page 8). • Only use the washer-disinfector in its original condition without independent changes and in a technically perfect condition. • The electrical safety of this machine is only ensured if it is connected to a system with a properly installed protective earth conductor system.

  • Page 12: Electromagnetic Compatibility

    • MEIKO washer-disinfectors with additional mains filter, built according to the standard CISPR 11:2009 Section 5, are class B appliances. No further ac- tions are required for these appliances. What to do in the event of an emergency •...

  • Page 13: Functional Description

    MEIKO T opLi ne Other possible additional equipment: • Dispenser for liquid cleaner (DR), e.g. Doyen R100 • AT - Automatic door • Slop sink flushing Functional description The washer-disinfector serves the emptying, cleaning and disinfecting of: • Bedpans, commode buckets and their covers •...
  • Page 14 In order to lower the temperature of the care utensils, a recooling step is carried out. In this process, the high temperature is reduced with cool, filtered air and the care utensils are dried. At the end of the programme, the wash chamber door is unlocked. The care utensils can be removed and must be visually checked by the operator.

  • Page 15: Overview Illustration

    MEIKO T opLi ne Overview illustration MEIKO TopLine 20 / TopLine 10 1 Inspection door 2 Display 3 Membrane key pad 4 Wash chamber with cleaning noz- zles 5 Holder 6 Wash chamber door 7 Inspection door 8 Canister (behind the door)

  • Page 16: Options

    MEIKO TopLine 30 1 Compartment with canisters for dosing agent 2 Display 3 Membrane key pad 4 Inspection door 5 Wash chamber with cleaning noz- zles 6 Holder 7 Wash chamber door 8 Inspection door Options 4.4.1 Detergent dosing An additional dosage of a detergent is recommended for heavily soiled care utensils.

  • Page 17: Automatic Door (At)

    MEIKO T opLi ne 4.4.2 Automatic door (AT) • • Touchless door opening with sen- Touchless door opening with foot sor, see page 31. switch, see page 31. 4.4.3 Slop sink flushing with separate slop sink unit It is possible to wish a sink with the integrated pump of the washer-disinfector.
  • Page 18 How to insert the care utensils in the holder SUH 1 9617722 18 / 60...
  • Page 19 MEIKO T opLi ne How to insert the care utensils in the holder SUH 2 Positions of special holder • See separate care utensil image 19 / 60 9617722...

  • Page 20: Technical Data

    Technical data Protection de- MEIKO TopLine 10/20/40: IP X4; TopLine 30: IP X5 gree Class I in accordance with VDE 0750 / IEC 601 Protection class Installation Max. height 2000 m above NHN, 5–40°C with max. 80% rel- conditions ative humidity, exclusively for indoor use, degree of soiling 2, overvoltage category 2, mains voltage tolerance ±...
  • Page 21 MEIKO T opLi ne 64.5 l Total volume of the cham- MEIKO 73 kg MEIKO LT1 with WC 34 kg, Net weights TopLine 10 TopLine 30 LT2 66 kg MEIKO 75 kg MEIKO 75 kg (incl. base and TopLine 20...
  • Page 22 Electrical characteristics DT-NDV Rated current Rated power Mains voltage (± 10 %) 14,5 A 4,3 kW 3~PE 220 V 50 Hz 14,7 A 4,3 kW 3~PE 220 V 60 Hz 14,5 A 4,3 kW 3~NPE 220 V 50 Hz 14,7 A 4,3 kW 3~NPE 220 V 60 Hz 14,9 A...

  • Page 23: Ec/Eu Declaration Of Conformity

    MEIKO T opLi ne Electrical characteristics DT-NDD Rated cur- Rated power Mains voltage Back-up fuse Boiler rent (± 10 %) – 4,9 A 0,8 kW 2~PE 200 V 50 Hz 16 A – 5,1 A 0,8 kW 2~PE 200 V 60 Hz 16 A –...

  • Page 24: Assembly

    Assembly Note To install the washer-disinfector, see Service Instructions. Commissioning Note To set up the washer-disinfector, see Service Instructions. 9617722 24 / 60...

  • Page 25: Operation/Use

    MEIKO T opLi ne Operation/use Membrane key pad 1 Display 2 Short programme programme key 3 Standard programme programme key 4 Intensive programme programme key 5 Slop sink flushing/wash chamber rinsing pro- gramme key (option) 6 Error indicator 7 Error acknowledgement key 8...

  • Page 26: Clean And Disinfect Care Utensils (Programme Cycle)

    Error indicator Error indicator status Meaning Error indicator off The washer-disinfector is ready for operation. Error indicator flashes The washer-disinfector: • Has detected a fault. • Emits an acoustic signal. • Display shows the error message. To switch off the acoustic signal, acknowledge the fault: ...
  • Page 27 MEIKO T opLi ne WARNING – Trapping in wash chamber door • When opening and closing the wash chamber door, make sure that nothing is trapped in the door. • If you are unsure about how to remove blockages, call service engineer or service technician to remove the blockage.

  • Page 28: Clean Care Utensils (Basic Version Of The Appliance)

    8.2.1 Clean care utensils (basic version of the appliance) Only touch used care utensils when wearing protective gloves. Observe the hygiene regulations of the operator! Recommendation Clean care utensils immediately after use. The maximum non-use time for care utensils is 30 minutes. 1.
  • Page 29 MEIKO T opLi ne During the programme sequence, the wash chamber door is locked. After end of programme: 5. Remove protective gloves, open 6. Remove care utensils. wash chamber door. 7. Close the wash chamber door. 8. Perform a visual check of the care utensils.

  • Page 30: Cancel Programme

    8.2.2 Cancel programme In case the wrong cleaning programme has been started, it is possible to cancel the cleaning programme and start the correct programme. The wash chamber door remains locked until a complete programme run has taken place. 1. Press the error acknowledgement 2.

  • Page 31: Automatic Door (At), Operation With Sensor (Option)

    MEIKO T opLi ne 8.2.4 Automatic door (AT), operation with sensor (option) All AT (Automatic Door) models are equipped with a sensor which allows the wash chamber door to be open and shut automatically. Depending on the presetting of the washer-disinfector, the cleaning programme starts automatically after the door is closed.

  • Page 32: Door Lock With Code Lock / Code Entry (Option)

    8.2.6 Door lock with code lock / code entry (option) Note Operations that can be protected with code lock: • Open the door after end of programme • Programme start • Both The code is set to 1 ex works. It can be changed by the service technician.

  • Page 33: Factory Setting Of The A Value

    MEIKO T opLi ne Factory setting of the A value The factory setting for the disinfection parameter for the A0 value is 60. To set another A0 value if required, contact MEIKO Service. Select A value The A -Value can be increased up to 3000 in predefined steps for a one-time programme run, depending on the parameterisation of the appliance.

  • Page 34: Replace Canister

    • Follow the manufacturer of the dosing agent's first aid measures in an emer- gency. *) MEIKO recommends hanging up a description of the first aid measures near the machine. Note The canisters for the dosing agent are located in different places de- pending on the appliance, see page 15.

  • Page 35: Perform Slop Sink Flushing (Option)

    MEIKO T opLi ne Perform slop sink flushing (option) CAUTION – Poor cleaning result of the slop sink flushing and splash- ing water due to incorrectly aligned cleaning nozzles • The nozzle groove must be aligned to the graining in the funnel.

  • Page 36: Wash Chamber Rinsing

    Wash chamber rinsing WARNING – Risk of infection due to a lack of disinfection • Never use wash chamber rinsing for cleaning care utensils. 1. Open the wash chamber door. 2. Empty the contents of the con- tainer into the wash chamber. 3.

  • Page 37: Malfunctions

    MEIKO T opLi ne Malfunctions WARNING – Trapping in wash chamber door • When opening and closing the wash chamber door, make sure that nothing is trapped in the door. • If you are unsure about how to remove blockages, call service engineer or service technician to remove the blockage.
  • Page 38 Residues are too jected to alternative cleaning. firmly dried The responsibility for suitable cleaning lies with the operator. MEIKO recommends that the care utensils be subjected to basic manual cleaning and sub- sequent disinfection using ap- propriate protective equipment. 9617722...

  • Page 39: Messages

    MEIKO T opLi ne 8.8.1 Messages The display shows the following details: • Information • Operation messages • Warnings • Error messages Note About warnings and error messages see page 42. Information Irrespective of the current process status, it is possible to access information about the washer-disinfector in the display.
  • Page 40 Display text Meaning Next mainte- Number of programme runs until the next mainte- nance nance Batch counter Total batches: all programmes Total Batch counter Total batches: short programme Short programme Batch counter Total batches: Standard programme Standard pro- gramme Batch counter Total batches: Intensive programme Intensive pro- gramme...
  • Page 41 MEIKO T opLi ne The operating messages show the progress during the programme run. Display text Meaning Ready for opera- • Washer-disinfector is ready for operation. tion • Loading with care utensils possible. Filling • Washer-disinfector filling cold water in the tank.
  • Page 42 Display text Meaning Recooling fill- • Washer-disinfector filling cold water in the tank..°°C >>>>>>>>>>>>>>>> Cooling + drying • Drying fan starts. • Care utensils cool down and dry. Recooling • Wash pump starts. Cleaning • Cleaning with cold water. End of programme •...
  • Page 43 MEIKO T opLi ne Display text Meaning Steps to take Door open • Door contact not closed. Close door correctly. Change rinse aid/water sof- • Provide rinse aid. Rinse aid/water softener tener tank • or detergent storage tank 25 programme runs alert.
  • Page 44 • Press the error acknowledgement key Fault is acknowledged. Error indicator LED permanently illuminated. In the case of all error messages or malfunctions not listed below: • Inform MEIKO Service. Display text Meaning Steps to take Error no. 103 •...
  • Page 45 MEIKO T opLi ne Display text Meaning Steps to take Error no. 211 • Hot water inlet tempera- Inform MEIKO Ser- Hot water tem- ture too low. vice. perature too Heat loss in inlet pipe. Cold water/hot water inlet swapped, solenoid valve coils swapped.

  • Page 46: Change Service Level/Settings

    Change service level/settings CAUTION – Malfunction due to incorrect parameter Before changing parameter settings: • Contact an authorised in-house technician or MEIKO Service. • Note service instructions. The service level permits the following settings and functions in the display: •...

  • Page 47: Display Or Change The List Of Service Parameters

    MEIKO T opLi ne Meaning  or  arrow keys • Navigate in the menu. If a setting is being edited (selected value flashes): • Increase or lower value.  or  arrow keys • Leave menu item. If a setting is being edited (selected value flashes): •...

  • Page 48: Ventilating The Pipes

    Ventilating the pipes The ventilation of the detergent or rinse pipes must be performed if air is sucked in from the dosing units. This occurs if a canister is completely emptied during operation, or if one of the suction lances is not threaded through to the base of the canister.

  • Page 49: Set Time Switch For Automatic Programme Start

    MEIKO T opLi ne Set time switch for automatic programme start 1. In the service level, call Change parameter list. 2. Confirm the submenu by pressing the fault acknowledgement key . The 1st parameter in the list appears with the current value.

  • Page 50: Maintenance And Cleaning

    10.1 Maintenance Note In order to guarantee regular and correct maintenance, MEIKO recom- mends concluding a maintenance contract with MEIKO Service. Regular maintenance is a prerequisite for the long-term reliable and safe opera- tion of a washer-disinfector.
  • Page 51 Please refer to the maintenance plan for a detailed list of the maintenance con- tent. The maintenance plan is available for authorised and trained expert staff. MEIKO supplies pressure-resistant, flexible connecting hose pipes with a manu- facturer guarantee covering ten years worth of working hours.

  • Page 52: 10.1.1 "Next Maintenance" Sticker

    10.1.1 "Next maintenance" sticker The "Next maintenance" sticker shows when the next scheduled maintenance of the washer-disinfector is required. The month in which the maintenance is required is at the top (in the 12 o’clock position). In the sticker shown, that is December 2006.

  • Page 53: 10.4 Daily Cleaning

    MEIKO T opLi ne 10.4 Daily cleaning CAUTION – Material damage due to incorrect cleaning Cleaning of parts made of stainless steel with unsuitable cleaning agents, care products and cleaning utensils leads to damage, deposits or discoloura- tions on the appliance.

  • Page 54: Behaviour When The Appliance Is Not In Use

    If not used for a longer period, manually empty the pipe system. – Have the pipe system manually drained by a trained in-house technician or MEIKO Service, see service instructions. Decommissioning To decommission of the washer-disinfector, see the Service Instructions.
  • Page 55 The components should be separated by material for recy- cling. For professional decontamination, dismantling and disposal of the old appli- ance, you can contact MEIKO Service. 55 / 60 9617722...
  • Page 56 Index A0 value EC/EU declaration of conformity . 23 Factory setting ........33 Electrical characteristics ....22 Preselect..........33 Electromagnetic compatibility..12 Assembly ........24 Error indicator ......26 Automatic door ......31 Automatic door (AT) ....17 Foot switch ........31 Functional description ....
  • Page 57 Overview illustration ....15 Technical data ......20 Presentation conventions ..... 6 Time switch ......... 49 Process validation ....... 52 TopLine 10 ........15 Product description ..... 12 TopLine 20 ........15 TopLine 30 ........16 Related documents ....... 6 TopLine 40 ........
  • Page 58 Notes ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… ……………………………………………………… 9617722 58 / 60...
  • Page 59 MEIKO T opLi ne 59 / 60 9617722...
  • Page 60 MEIKO Maschinenbau GmbH & Co. KG Englerstraße 3 77652 Offenburg Germany www.meiko-global.com info@meiko-global.com Design and construction subject to change without prior notice! 9617722 / Valid from: 2005-03 / Update: 2021-03...
