M
FV 250.2
ODEL
High Temperature Sanitizing Pot and Pan Washer
(USA Version)
O
'
I
, O
WNER
S
NSTALLATION
PERATION AND
M
M
AINTENANCE
ANUAL
Meiko • 917 Airpark Center Drive • Nashville, TN 37217 • Phone: (615) 399-6600 • (800) 55-MEIKO • Fax: (615) 399-6620
Rev. 12/06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FV 250.2 and is the answer not in the manual?

Questions and answers

Related Manuals for Meiko FV 250.2

Summary of Contents for Meiko FV 250.2

  • Page 1 ODEL High Temperature Sanitizing Pot and Pan Washer (USA Version) ’ WNER NSTALLATION PERATION AND AINTENANCE ANUAL Meiko • 917 Airpark Center Drive • Nashville, TN 37217 • Phone: (615) 399-6600 • (800) 55-MEIKO • Fax: (615) 399-6620 Rev. 12/06...

  • Page 2: Table Of Contents

    ANY MODIFICATIONS TO THE APPLIANCE THAT ARE PERFORMED WITHOUT THE WRITTEN PERMISSION OF MEIKO WILL IMMEDIATELY VOID THE MANUFACTURER’S WARRANTY. Meiko reserves the right to change any specifications without notice at any time. Meiko • 917 Airpark Center Drive • Nashville, TN 37217 Phone: (615) 399-6600 •...

  • Page 3: Introduction

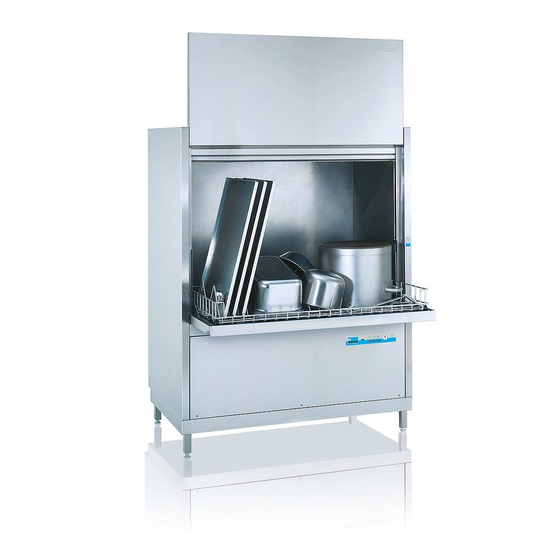

    1.1 Overview of Equipment throughout this manual to indicate possible hazards to persons or to the equipment. The The Meiko Model FV 250.2 is a commercial symbols and headings are shown in order of pot and pan washer/dishwasher. It is designed importance.

  • Page 4: Installation

    It is possible to compensate for The appliance’s warranty is not valid until a uneven flooring by adjusting the feet. Meiko Authorized Service Agent performs a The area should be away from Startup and Demonstration on the appliance. appliances, furniture or surfaces that This Demonstration should be scheduled after can be damaged by steam.

  • Page 5: Uncrating, Positioning And Leveling

    Meiko Customer Service at 1-800-868-3840, providing full details on the customer, serial number and extent of damage present. Meiko will file a freight claim based on this information. 3. Move the appliance to the installation area and remove the skid.

  • Page 6: Main Electrical Supply Connection

    3 - I ECTION NSTALLATION 3.5 Main Electrical Supply Connection 2. Check that the incoming power leads are long enough to permit the unit to be WARNING! repositioned for servicing. Check that the circuit breaker/fused disconnect is in the OFF position and 3.

  • Page 7: Dispensing System Overview

    3 - I ECTION NSTALLATION 3.6 Dispensing system overview Figure 3-6: Chemical connections The FV 250.2 is designed for use with a liquid rinse aid, and either solid or liquid detergents. Units equipped with optional liquid internal detergent and rinse aid pumps have two tubes exiting the machine at the lower rear.

  • Page 8: Installing An External Detergent System

    3 - I ECTION NSTALLATION CAUTION Figure 3-7: Sealing unused chemical tubes (if If the unit will NOT use one or both of not using a liquid detergent or rinse additive) the chemical supply tubes, cut the unused tube(s) close to the point where it exits the machine’s exterior tubing panel and seal it using the supplied...

  • Page 9: Installing An External Liquid Rinse

    3 - I ECTION NSTALLATION 3.8 Installing an External Liquid Rinse Figure 3-9: Liquid rinse additive system Aid System A pre-plumbed, blue 1/4” ID tube at the lower rear of the unit serves as the connection point for the rinse aid supply. See Figure 3-9.

  • Page 10: Connecting Chemical Containers Or Dispensers

    3-11, be sure to use the supplied wire correctly installed according to the clamps to fasten the chemical supply manufacturer’s instructions. tubes securely. Meiko STRONGLY 3. If the dishwasher is equipped with factory RECOMMENDS the use of a sealing internal chemical dispensing pumps, two...

  • Page 11: Fresh Water Supply Connection

    (with a reducing valve). 2. Check the type of drain that will be used. 3. Check the incoming water temperature. Because the FV 250.2 uses a pumped drain, Meiko recommends a water temperature either a floor or wall drain is acceptable.

  • Page 12: Final Assembly

    6. Press the key to start priming the liquid SETTINGS ARE TO BE PERFORMED detergent lines. A timer will count down ONLY BY A MEIKO AUTHORIZED SERVICE AGENT. CHANGES BY the time remaining. By default, the system UNAUTHORIZED PERSONNEL WILL will prime for 30 seconds.

  • Page 13: Operation

    4 - O ECTION PERATION PERATION 4.1 Location and Description of Controls The machine controls are located on two keypads on the front panel. See Figure 4-1. Figure 4-1: Dishwasher controls A, B, C - POWER/CYCLE SELECT keys E - POWER OFF key These keys turn the machine on.

  • Page 14: Startup

    4 - O ECTION PERATION 4.2 Startup 4.3 Loading The loading guidelines shown here will lead Check the level of the external detergent and to faster, more efficient cleaning of your ware. rinse additive dispensers. If necessary, replace or refill the dispensers. Load sheet pans, trays, etc.
  • Page 15 4 - O ECTION PERATION Plates, soup bowls, and glassware can be loaded into the machine using standard Glasses loaded with the open side 20x20” racks. The FV 250.2 wire basket holds facing DOWN two racks. 20x20” racks Glassware rack...

  • Page 16: Operation

    Meiko recommends that the doors of onto the lower door section, and unload the the machine be left open overnight to allow it ware.

  • Page 17: Cleaning

    5 - C ECTION LEANING 5.1 Daily Cleaning (or as required) LEANING 1. The machine automatically enters a self- WARNING! cleaning cycle when it is turned off. The Before ANY cleaning, check that the interior will be sprayed with hot, fresh circuit breaker/fused disconnect is in water as the booster tank empties.

  • Page 18: Weekly Cleaning (Or As Required)

    • Five upper wash arms (identical) • Five lower wash arms (identical) 9. Meiko recommends that the doors of the machine be left open overnight to allow it • Two removable upper rinse arms to air thoroughly.

  • Page 19: Exterior Cleaning (As Required)

    When cleaning the exterior of the machine, the interior of the machine if it is operated be sure to follow these guidelines: using a hard water supply. Meiko recommends a hardness of 4 grains per U.S. gallon (7 DH •...

  • Page 20: Troubleshooting

    “kinks” or pinching. Also check that the water supply is turned on. Meiko Authorized Service Agent You should contact your • The machine encounters a problem but does not display an error code, OR •...
  • Page 21 Notes ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _...
  • Page 22 Notes ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _...
  • Page 23 Notes ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _...
  • Page 24 If you need service... Meiko warewashers are designed for solid reliability as much as for outstanding ware-cleaning ability. With proper care, your warewasher should provide years of trouble-free operation. If service is necessary, contact your local Meiko Authorized Service Agent. With factory training, OEM parts and direct support from the factory, Meiko’s nationwide service network is highly qualified to quickly...
