STEP 3B
Control / Command Terminals - Ensure that the product is in Manual Mode.
STEP 4
Power Supply Terminal - Remove the Top cover to access and connect the terminal - Replace the cover before putting in service.
3
1
2
STEP 5
Check
Whilst in manual mode, check the wiring
and if ok power up the product.
LED "Power" Green: ON
LED Manuel/Defaut Red (Product not
Available): ON
NOTE: Nominal Aux. Supply Voltage : 208 – 277Vac
STEP 6A
STEP 6B
Motorised Operation
Ensure that the emergency handle is
not inserted in the product and turn
the mode selector to the AUT position.
LED "Power" Green: ON
LED Manuel/Default: OFF
0
___________________________________________________________
Impulse logic
Contactor logic
order I
order 0
order II
position I
position 0
position II
Imp. ≥60ms
maintened
To enable control, close contact 312 with 317.
To force the product to 0 position/OFF bridge
the contact 313 with 317.
For contactor logic bridge contact 316 with 317.
To operate: close the contact corresponding to
the desired position.
Spares: Motorisation module
Ref. Spare part motorisation
USED FOR ATyS REFERENCE
97095060
600A
97095080
800A
3, 4 P
97095120
1200A
1
312 313 314 315 316 317
63A 64A 24 14 04 13
CONTROL
OUTPUTS
Connect the product with a cable of section of 24 to 16 AWG.
STEP 6C
Emergency Manual Operation
II
I
AUT
B6
97233060 / 97234060
97233080 / 97234080
B7
97233120 / 97234120

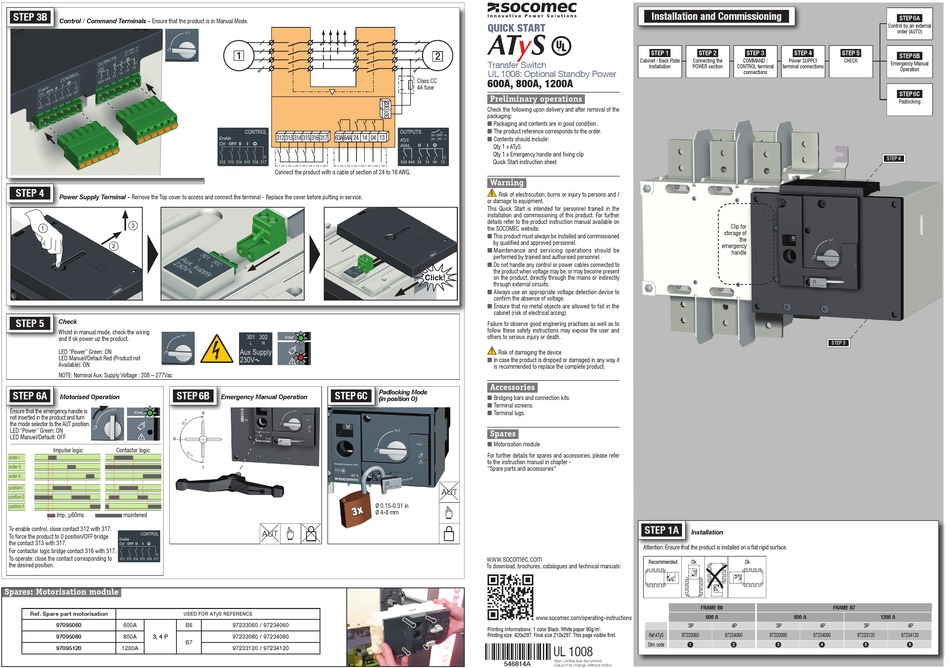

quick start

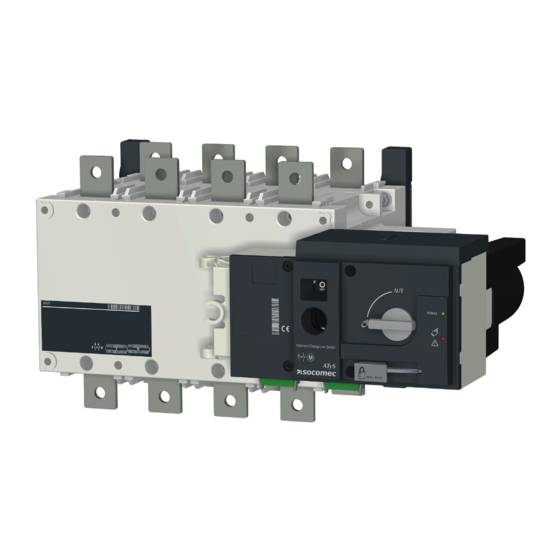

ATyS
2
Transfer Switch
UL 1008: Optional Standby Power
Class CC
600a, 800a, 1200a
4A fuse
Preliminary operations
Check the following upon delivery and after removal of the
packaging:
Packaging and contents are in good condition.
n
n
The product reference corresponds to the order.
Contents should include:
n
Qty 1 x ATyS
Qty 1 x Emergency handle and fixing clip
Quick Start instruction sheet
Warning
Risk of electrocution, burns or injury to persons and /
or damage to equipment.
This Quick Start is intended for personnel trained in the
installation and commissioning of this product. For further
details refer to the product instruction manual available on
the SOCOMEC website.
This product must always be installed and commissioned
n
by qualified and approved personnel.
n
Maintenance and servicing operations should be
performed by trained and authorised personnel.
Do not handle any control or power cables connected to
n
the product when voltage may be, or may become present
on the product, directly through the mains or indirectly
through external circuits.
Always use an appropriate voltage detection device to
n
confirm the absence of voltage.
Ensure that no metal objects are allowed to fall in the
n
cabinet (risk of electrical arcing).
Failure to observe good enginering practises as well as to
follow these safety instructions may expose the user and
others to serious injury or death.
Risk of damaging the device
In case the product is dropped or damaged in any way it
n
is recommended to replace the complete product.
Accessories
Padlocking Mode
Bridging bars and connection kits.
(in position O)
n
Terminal screens.
n
Terminal lugs.
n
Spares
Motorisation module
n
For further details for spares and accessories, please refer
to the instruction manual in chapter -
"Spare parts and accessories"
AUT
Ø 0.15-0.31 in
Ø 4-8 mm
www.socomec.com
To download, brochures, catalogues and technical manuals:
www.socomec.com/operating-instructions
Printing informations: 1 color Black. White paper 90g/m
Printing size: 420x297. Final size 210x297. This page visible first.
UL 1008
Non contractual document.
546814A
Subject to change without notice.
Installation and Commissioning
STEP 1
STEP 2
STEP 3
Cabinet / Back Plate
Connecting the
COMMAND /
Installation
POWER section
CONTROL terminal
connections
Clip for
storage of
the
emergency
handle
STEP 1A
Installation
Attention: Ensure that the product is installed on a flat rigid surface.
Recommended
Ok
Ok
FRAME B6
600 A
3P
4P
3P
2
.
Ref ATyS
97233060
97234060
97233080
Dim. code
1
2
3
STEP 6A
Control by an external
order (AUTO)
STEP 4
STEP 5
STEP 6B
Power SUPPLY
ChECk
Emergency Manual
terminal connections
Operation
STEP 6C
Padlocking
STEP 4
STEP 3
FRAME B7
800 A
1200 A
4P
3P
4P
97234080
97233120
97234120
4
5
6
