socomec ATyS Quick Start

549603D
QUICK START 125 A - 630 A
EN
ATyS / ATyS

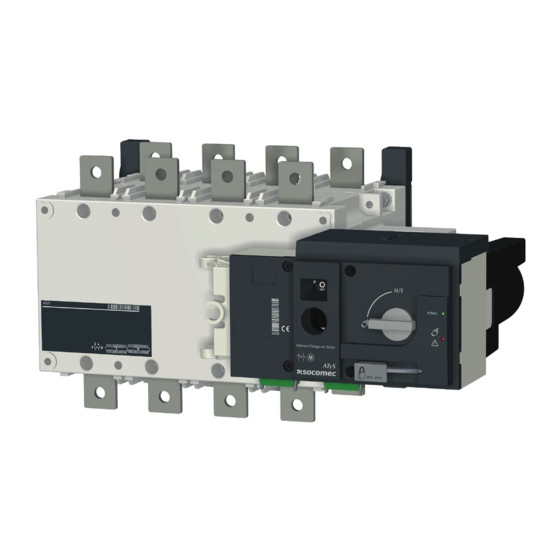

Motorised Source Changeover Switch

Preliminary operations

Check the following upon delivery and after removal of the
packaging:
- Packaging and contents are in good condition.
- The product reference corresponds to the order.
- Contents should include:
Qty 1 x ATyS / ATyS r
Qty 1 x Emergency handle and fixing clip
Quick Start instruction sheet
Warning
Risk of electrocution, burns or injury to persons and /
or damage to equipment.
This Quick Start is intended for personnel trained in the
installation and commissioning of this product. For further
details refer to the product instruction manual available on
the SOCOMEC website.
• This product must always be installed and
commissioned by qualified and approved personnel.
• Maintenance and servicing operations should be
performed by trained and authorised personnel.
• Do not handle any control or power cables connected to
the product when voltage may be, or may become
present on the product, directly through the mains or
indirectly through external circuits.
• Always use an appropriate voltage detection device to
confirm the absence of voltage.
• Ensure that no metal objects are allowed to fall in the
cabinet (risk of electrical arcing).
- For 125 - 160 A (Uimp = 8 kV). Terminations must respect
a minimum of 8 mm clearance from live parts to parts
intended to be earthed and between poles.
- For 200 - 630 A (Uimp = 12 kV). Terminations must respect
a minimum of 14 mm clearance from live parts to parts
intended to be earthed and between poles.
Failure to observe good enginering practises as well as to
follow these safety instructions may expose the user and
others to serious injury or death.
Risk of damaging the device
In case the product is dropped or damaged in any way it is
recommended to replace the complete product.

Accessories

• Bridging bars and connection kits.
• Control voltage transformer (400 VAC
• DC power supply (12/24 VDC 230 VAC).
• Phase barriers.
• Terminal shrouds.
• Terminal screens.
• Auxiliary contacts (Additional).
• Padlocking in 3 positions (I - O - II).
• Lockout accessories (RONIS - EL 11 AP).
• Door escutcheon frame.
• ATS controller ATyS C25.
• ATS controller ATyS C55 or C65.
For further details refer to the product instruction manual
under chapter "Spares and Accessories".
www.socomec.com
To download, brochures, catalogues
and technical manuals:
https://www.socomec.com/
operating-instructions_en.html
Installation and Commissioning
STEP 1
Cabinet / Back Plate

Installation

r
STEP 1
1
Max.
0.51 in.
13 mm.
Mounting
3 3
230 VAC).
125 A to 400 A.
STEP 2
To be connected using terminal lugs, rigid or flexable busbars.
Minimum cable section Cu (mm
Recommended Cu busbar cross-section (mm
Maximum Cu cable cross-section (mm
Maximum Cu busbar width (mm)
Type of screw
Recommended tightening torque (lb.in/N.m)
Maximum tightening torque (lb.in/N.m)
STEP 2 STEP 3
Connecting the COMMAND /
POWER section CONTROL terminal
connections
Clip for
storage of
the
emergency
handle
Installation
Caution: ensure
that the product
is installed on a
flat rigid surface.
500 A, 630 A.

Power Terminal Connections

125 A
2 ) 35
)
2 -
2 ) 50
25
M8
73.46/8.3 73.46/8.3 73.46/8.3 177.02/20 177.02/20 177.02/20 354.04/40 354.04/40
115.06/13 115.06/13 115.06/13 230.13/26 230.13/26 230.13/26 398.30/45 398.30/45
STEP 4 STEP 5
Power SUPPLY CHECK
terminal
connections
2
M8 Type Z
M8
Recommended
orientation
Removing covers
FRAME B3 FRAME B4
160 A 200 A 250 A 315 A
35 50 95 120
- - - -
95 120 150 240
25 25 32 32
M8 M8 M10 M10
STEP 6A
Control by an external
order (AUTO)
STEP 6B
Emergency Manual
Operation
STEP 6C
Padlocking
OK OK
FRAME B5
400 A 500 A 630 A
185 2x95 2x120
- 2x32x5 2x40x5
240 2x185 2x300
32 50 50
M10 M12 M12
