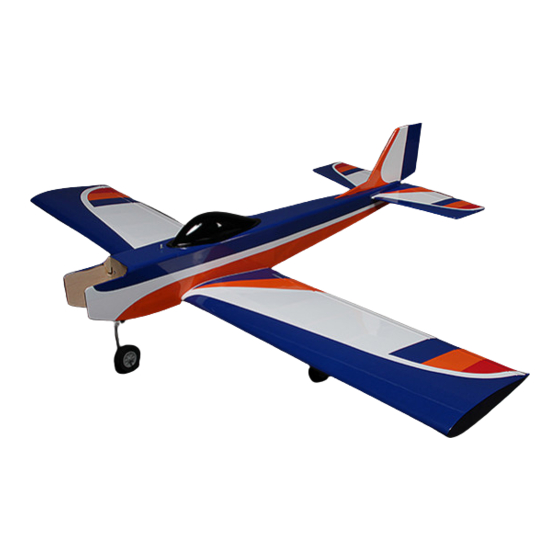

SPECIFICATIONS:
Wing Span 56.7in/1440mm
Wing Area 37.44dm²
Flying Weight 2300g
Fuselage Length 40.5in/1030mm
Engine 46(2c) Electromotor(2832)
Radio 4 channels3~4servos
Warning! This model is not a toy.
It is designed for maximum performance. Please seek
advice if one us not familiar
With this kind of engine powered precision model. Operating
this model without
Prior preparation may cause injuries .Remember, safety is
the most important thing. Always keep this instruction manual
at hand for quick reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Maestro-46 and is the answer not in the manual?

Questions and answers

Summary of Contents for HobbyKing Maestro-46

  • Page 1 SPECIFICATIONS: Wing Span 56.7in/1440mm Wing Area 37.44dm² Flying Weight 2300g Fuselage Length 40.5in/1030mm Engine 46(2c) Electromotor(2832) Radio 4 channels3~4servos Warning! This model is not a toy. It is designed for maximum performance. Please seek advice if one us not familiar With this kind of engine powered precision model.
  • Page 2 All the objects in the box Wing installed Use quick glue adhesive hinge...
  • Page 3 Wing from A&B resin glue connection is used, and make sure the glue is firm Connected to the pull rod of servo...
  • Page 4 cut the excess cover and use quick glue adhesive hinge Cut at the end of the fuselage to install the window of the tailplane and vertical tail...
  • Page 5 from A&B resin adhesive by the tailplane and vertical tail and ensure the glue is firm Landing gear components...
  • Page 6 The installation of the front landing gear Cutting landing gear installed below the wing of the cover...
  • Page 7 Use 3 x12 screws fixed landing gear preforming Elevator and rudder pull rod parts...
  • Page 8 Elevator lever position rudder lever position...
  • Page 9 The installation of the server Engine frame, fuel tank, motor mounting bracket component...
  • Page 10 The installation of motor and propeller Turn on 5 mm the wing of the mounting hole...
  • Page 11 The M5 nylon screws fixed wing under the fuselage Four 2 x12 screws cabin on the fuselage...
