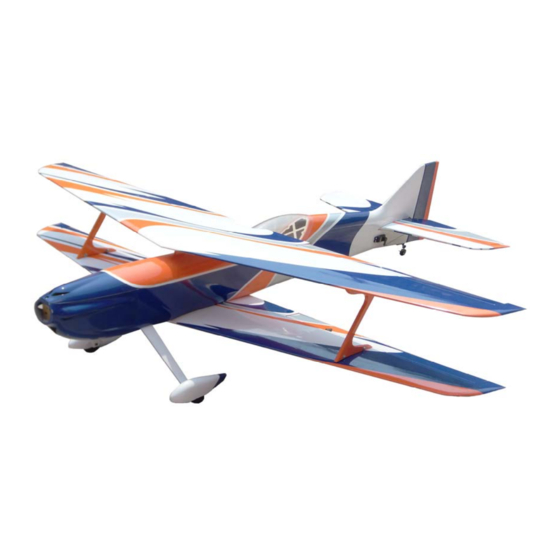

AIRCRAFT SPECIFICATIONS:
Wing Span: 1480mm/58.26"
Top Wing Area: 31.51 Sqdm/ 488.47 Sqin
Bottom Wing Area: 31.48 Sqdm/ 487.89 Sqin
Lenght:1592mm/62.68in
Weight: 3300/3400g RTF less battery
RECOMMENDED EQUIPMENT:
Motor: 50e size 300~400KV
ESC: 60~80amp
Radio: 6ch
Battery: 6cell 3800cell to 4500mah Lipoly.
Prop: 16x12e ~ 17x10e
Warning! This model is not a toy.
It is designed for maximum performance. Please seek
advice if one is not familiar with this kind of electric
powered precision model.
Operating this model without prior preparation may cause
in juries.
Remember, safety is the most important thing. Always keep
this instruction manual at hand for quick reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Mellizo-50e and is the answer not in the manual?

Questions and answers

Summary of Contents for HobbyKing Mellizo-50e

  • Page 1 AIRCRAFT SPECIFICATIONS: Wing Span: 1480mm/58.26" Top Wing Area: 31.51 Sqdm/ 488.47 Sqin Bottom Wing Area: 31.48 Sqdm/ 487.89 Sqin Lenght:1592mm/62.68in Weight: 3300/3400g RTF less battery RECOMMENDED EQUIPMENT: Motor: 50e size 300~400KV ESC: 60~80amp Radio: 6ch Battery: 6cell 3800cell to 4500mah Lipoly. Prop: 16x12e ~ 17x10e Warning! This model is not a toy.
  • Page 2 1. Wing Wings Part List Apply instant glue Cut the covering away for passing Cut the covering away for installing the through the servo extension line bottom aileron servo Pass through the servo extension line Install bottom aileron’s servo...
  • Page 3 Fix the bottom aileron horn Complete the bottom aileron servo’s installing and install the top aileron servo according to the same method Fix the bottom wing Cut the covering away for fixing the Wing support Fix the bottom wing support with Fix the wing support with 10pcs M3*15 instant glue cross head screw,10pcs M3 nut and...
  • Page 4 Fix the top wing support with instant Cut a hole for pass through the top glue aileron servo extension line Fix the top wing support complete wing part’s install 2. Stabilizer/Vertical/Tail Wheel Stabilizer/Vertical Cut away the cover film Tail Wheel Part List...
  • Page 5 Cut away the wood and Fix the linkage rod with epoxy glue drill diameter 2.5mm hole for fix the elevator linkage rod Before fix the horizontal you must Apply instant glue pass through the elevator first Fix the Apply instant glue horizontal with instant glue...
  • Page 6 Fix the tail wheel Install the tail wheel and bend the steel wire Cut away the wood and drill a diameter 2mm Apply instant glue hole for fix the tail wheel steel wire Fix the tail wheel steel wire with Fix the elevator servo epoxy glue...
  • Page 7 Fix the elevator’s horn Complete the elevator servo system’s installing Fix the rudder servo Fix the rudder’s horn Complete the rudder servo system’s installing...
  • Page 8 3. Main Landing Wheel Main Landing Wheel Part List Cut this part away Fix the plywood with epoxy glue Cut this part away The shaft passes through the wheel and Put the complete wheel parts into the the main landing chassis. Then fixed wheel cowling using M4 skidproof nut...
  • Page 9 Locking the Wheelchocks Locking the skidproof nut Fix the main landing set 4. Canopy/ Motor Mounting Canopy Part List Fix the plywood with instant glue...
  • Page 10 Fix the canopy Put the motor into fuselage Fix the motor Fix the screw propeller Fix the spinner Canopy Part List...
  • Page 11 Fix the canopy...
