Connection; Load Capacity; Pairing - F&F FW-R2P Manual

Connection

Load capacity

2× 4 A/250 V (AC-1)

Pairing

Each channel of the receiver is independently paired.

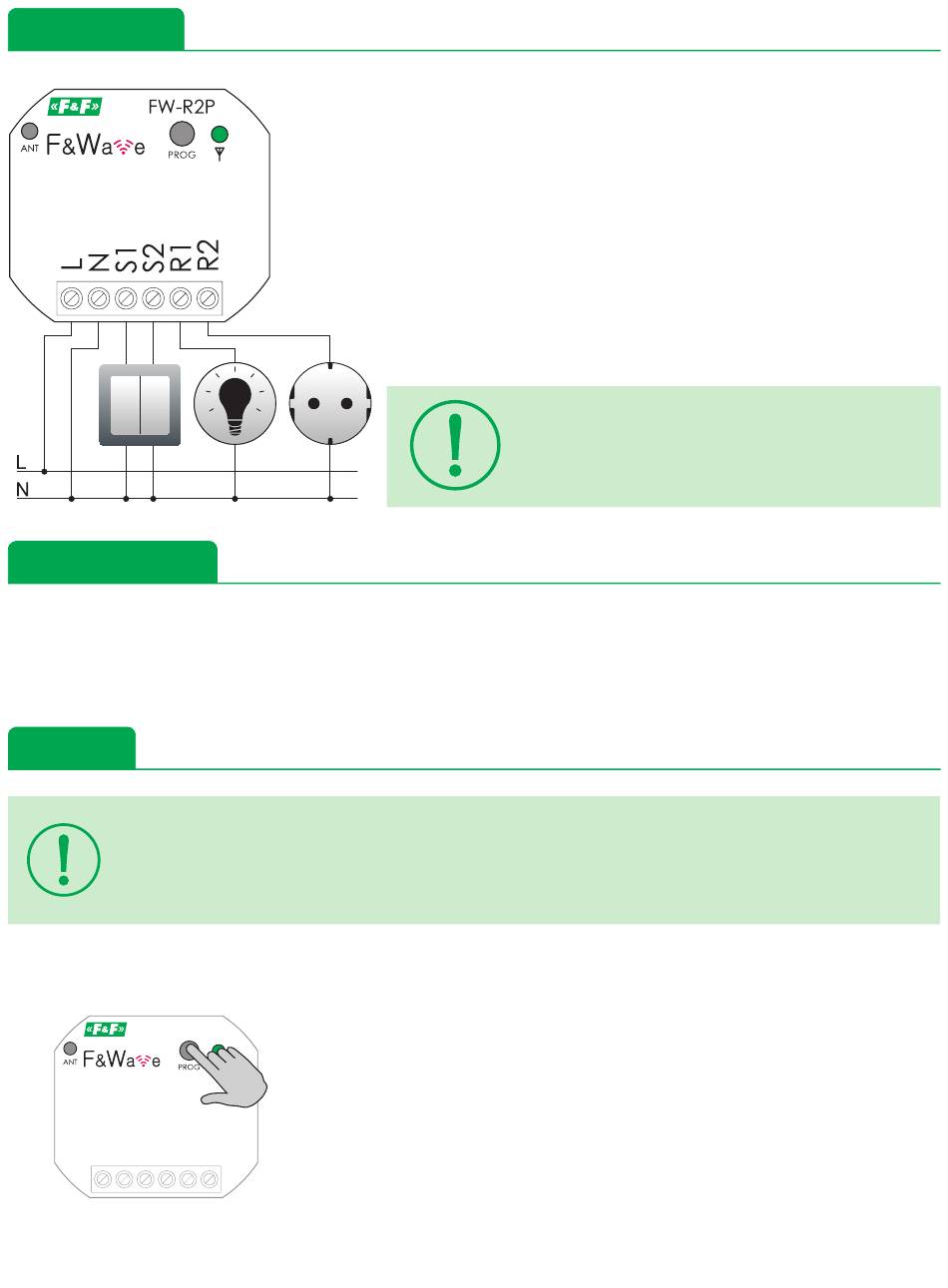

①
L - power supply L
N - power supply N
S1 - control input triggered with level L or N -
- channel 1
S2 - control input triggered with level L or N -
- channel 2
R1 - NO contact - channel 1
R2 - NO contact - channel 2
The actual maximum load depends on the na-
ture and design of the receiver.
For more information visit: www.fif.com.pl
After proper connection, press and hold the PROG but-
ton until the circuit of the first channel will switch on and
the communication LED will go off.
To select a second channel for pairing, hold the program-
ming button again until the circuit of the second channel
switches on.
- 3 -
Control inputs do not cooperate
with backlighted buttons.
