NAF ProCap Capping Valve User Instruction – FCD NFENIM4155-00-A4 11/18
Terminal block section X2: Inductive limit switches for jammers and valve position (see
Figure 11)
• Position 1 - 18: The connections between the Local Control Box and the limit
switches for two jammers and valve open/closed.

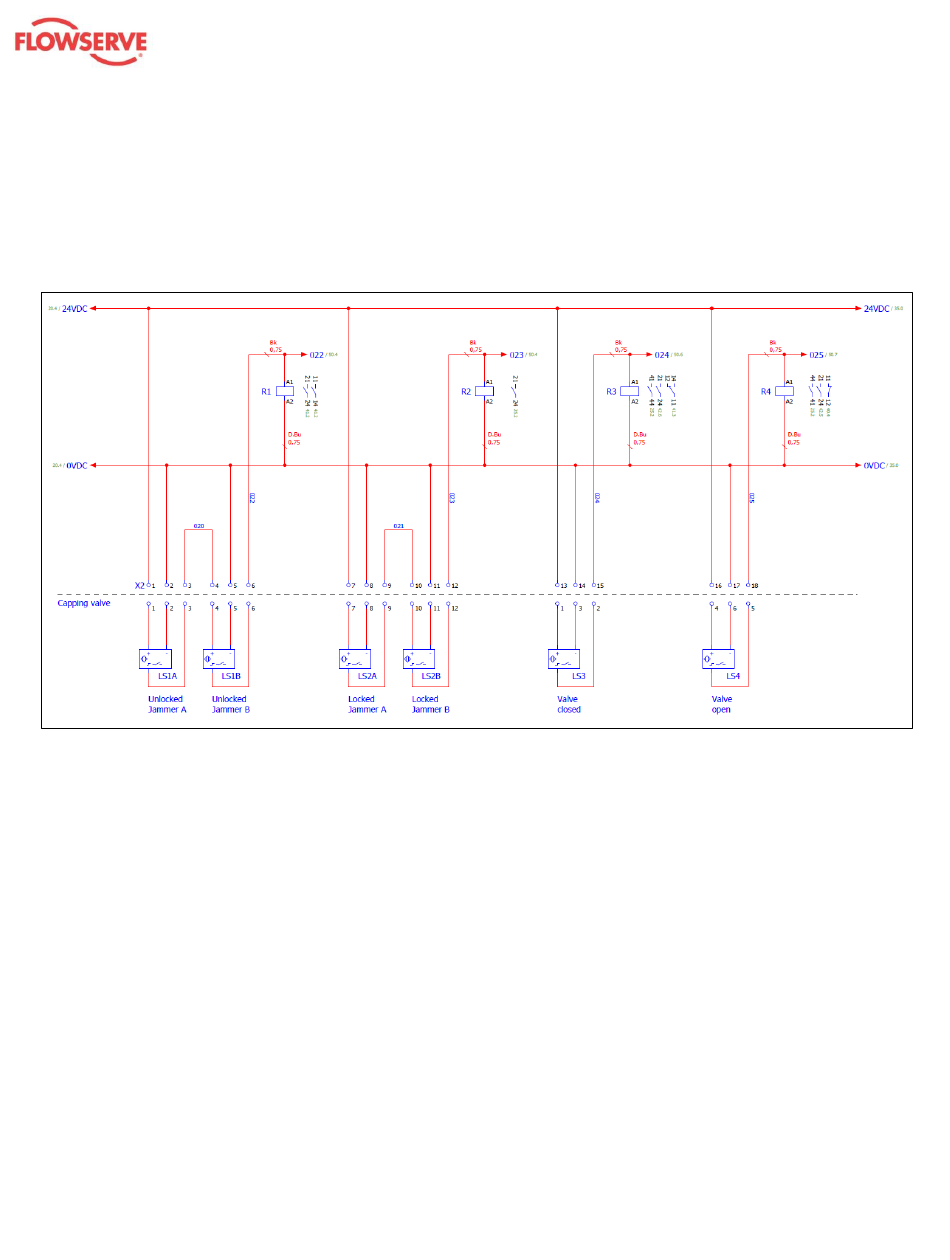

Figure 12: Drawing 33414591, part 3: Terminal X2: Inductive limit switches for jammers and valve
position. For larger image, see Annex C.
