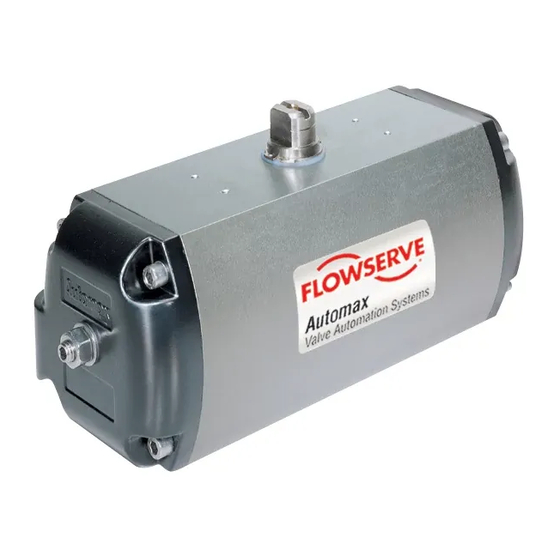

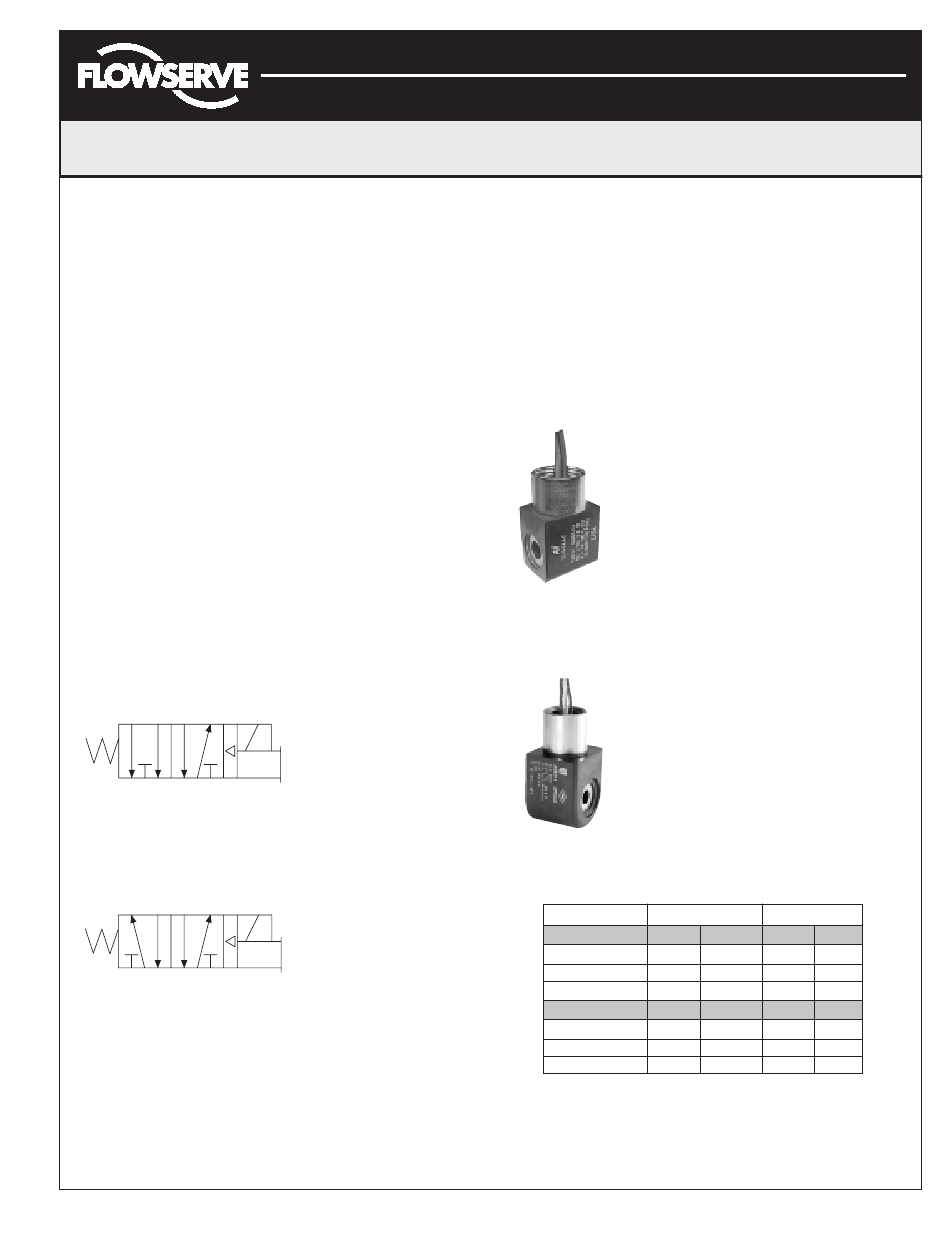

The Automax NAMUR Directional valve mounts
directly to SuperNova series actuators which
eliminates the cost of tubing and fittings. The valves
are available for double acting and spring return
actuators with NEMA 4, 4X, 7 & 9, weatherproof
intrinsically-safe, and low power solenoid operators.
These valves have been tested and proven reliable
for over 1 million cycles.
Operation
Solenoid will not shift without backpressure on ports
2 and 4. Air supply lines to the valve must have I.D.
at least as large as the NPT size of valve ports.
Temperature: NEMA 4X: -20°F to 150°F
NEMA 4X, 7 & 9: -20°F to 125°F
For temperatures below 40°F, air must
be free of water vapor.
Pressure: Minimum: 35 psig
Maximum: 150 psig
Media: Dry or lubricated non-corrosive gas
compatible with nitrile seals.
C = 1.8
V
Flow Schematics:
(Port 1 - air supply)
3-way Valve (Spring Return Actuators)
4
2
3 1 5
When operator is energized, the spool shifts allowing
the air pressure to enter the actuator and compress the
springs. When de-energized, the spool returns,
exhausting the air.
4-way Valve (Double-acting Actuators)
4
2
3 1 5
When operator is energized, the spool shifts, driving the
actuator CCW. When de-energized the spool returns,
driving the actuator CW. For de-energized CCW, rotate
directional valve 180°, so that operator points left.
Options:
Dual coil 2-position and 3-position valves are available.
Consult factory.
Sandwich NAMUR mount accessories:
APS1 - Air purge system to purge spring chambers
with solenoid valve exhaust.
AXAIMO35-0 (AUTO-111)
© 2003, Flowserve Corporation, Printed in USA
Installation, Operation and Maintenance Instructions
1350 N. Mountain Springs Parkway
Springville, Utah 84663
Phone: 801 489 8611
S25N NAMUR Directional Valve
07/03
Automax Valve Automation Systems
3-Position Control/Dribble Control
SR Limit Switch Method
FC1, FCSR and FCDA - Single port and dual port
exhaust flow controls.
LV1 - Lockout and vent valve for lockout and
manual override applications.
Automax sandwich NAMUR mount accessories provide compact,
clean control packages for the SuperNova actuator.
Solenoid Information
NEMA 4X Weatherproof
• Coil is U.L. and C.S.A. recognized
• Standard 1/2" NPT connector meets
NEMA 4X rating
• Optional DIN connector for wiring with
3 lead, 18ga cord available. Eliminates
junction boxes at solenoid. Simply plug in
and tighten screw for easy installation
and service
• Standard with non-locking override
• Continuous duty molded class H coil
• 24" electrical leads
• External air pilot
NEMA 4X, 7 & 9 "Explosion-proof"
• 1/2" NPT conduit
• 24" electrical leads
• Meets U.L., C.S.A. and NEMA require-
ments for Class I, Gr C & D Div. 1 & 2
Class II, Gr E, F & G Div. 1 & 2
• Standard with non-locking override
• Continuous duty molded Class B Coil
• External air pilot
Solenoid Electrical Characteristics
Characteristics for standard coils are shown below.
All common voltages and hertz are available.
AC VOLTAGE ±10%
WEATHERPROOF 120 VAC
Inrush Amps 0.078
Holding Amps 0.058
Resistance ( Ω )
840
EXPLOSION-PROOF
Inrush Amps 0.127
Holding Amps 0.057
Resistance ( Ω )
475
Weatherproof intrinsically-safe/low power
A .67 watt coil is available with 1/2" NPT weatherproof
housing. The operator has Factory Mutual Entity approval.
See the separate I.S. operator I.O.M. for further information.
1978 Foreman Dr.
Cookeville, TN 38501
Phone: 931 432 4021
DC VOLTAGE
240 VAC 12 VDC 24 VDC
0.041 0.400 0.200
0.030 0.400 0.200
3310 31.6 121
0.063 0.632 0.320
0.038 0.632 0.320
2000 19.0 75
