the bigger sized actuator). See Figure 2. Table 1 shows approximate weight and lifting
eye bolt thread sizes.

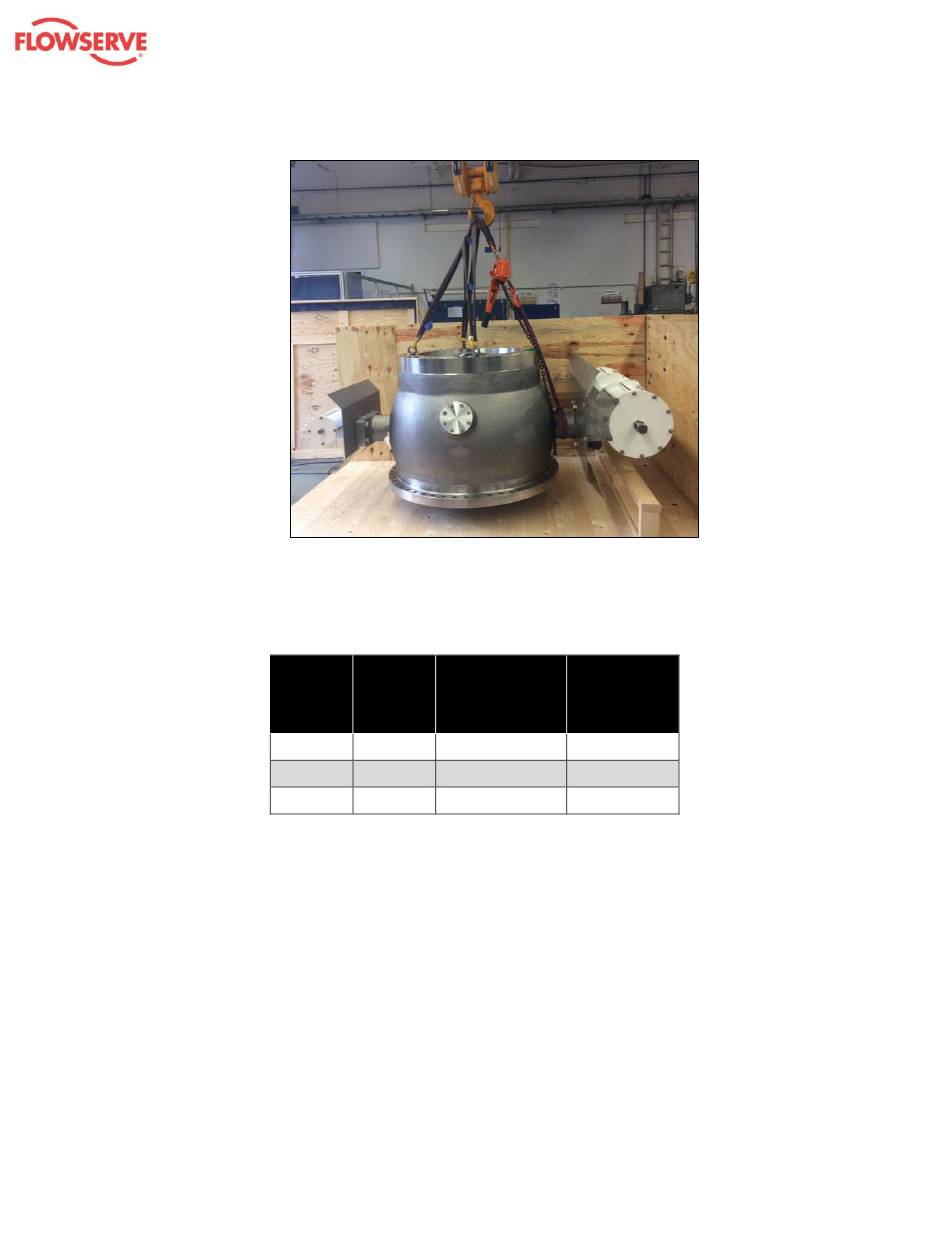

Figure 2: Lifting of a NAF ProCap with mounted actuators.
Table 1: Approximate weights and lifting eye bolt threads.
Note: During all handling of the valve, make sure that the digester connection flange
surface doesn't get damaged. Never place the valve on a hard surface, e.g. on a
concrete floor. Instead place it on a soft and clean material, e.g. a new and clean
wooden board.
The ProCap is normally delivered as a complete and pre-tested valve assembly with
actuators, jammer, limit switches etc. We always recommend to keep the valve
assembly complete during the entire transportation and installation. However, if space
is limited, the big actuator can be removed during transportation without the need to
re-adjust the entire assembly after it has been re-installed to the valve. Follow the steps
Lifing Eye Bolts
DN Size
500/700 20/28
600/800 24/32
750/950 30/38
Page 7 of 78
Weight
(approx.)
Thread
Kg/Lbs
M20 850/1873
M20 1440/3174
M20 2700/5952
