USER INSTRUCTIONS
NAF Duball DL Ball Valves NFENIM4163-00-A4 05/17
NAF Duball DL Pocket Valve
Installation
Operation
Maintenance
FCD NFENIM4163-00-A4 05/17
1
Experience In Motion
flowserve.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NAF Duball DL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Flowserve NAF Duball DL

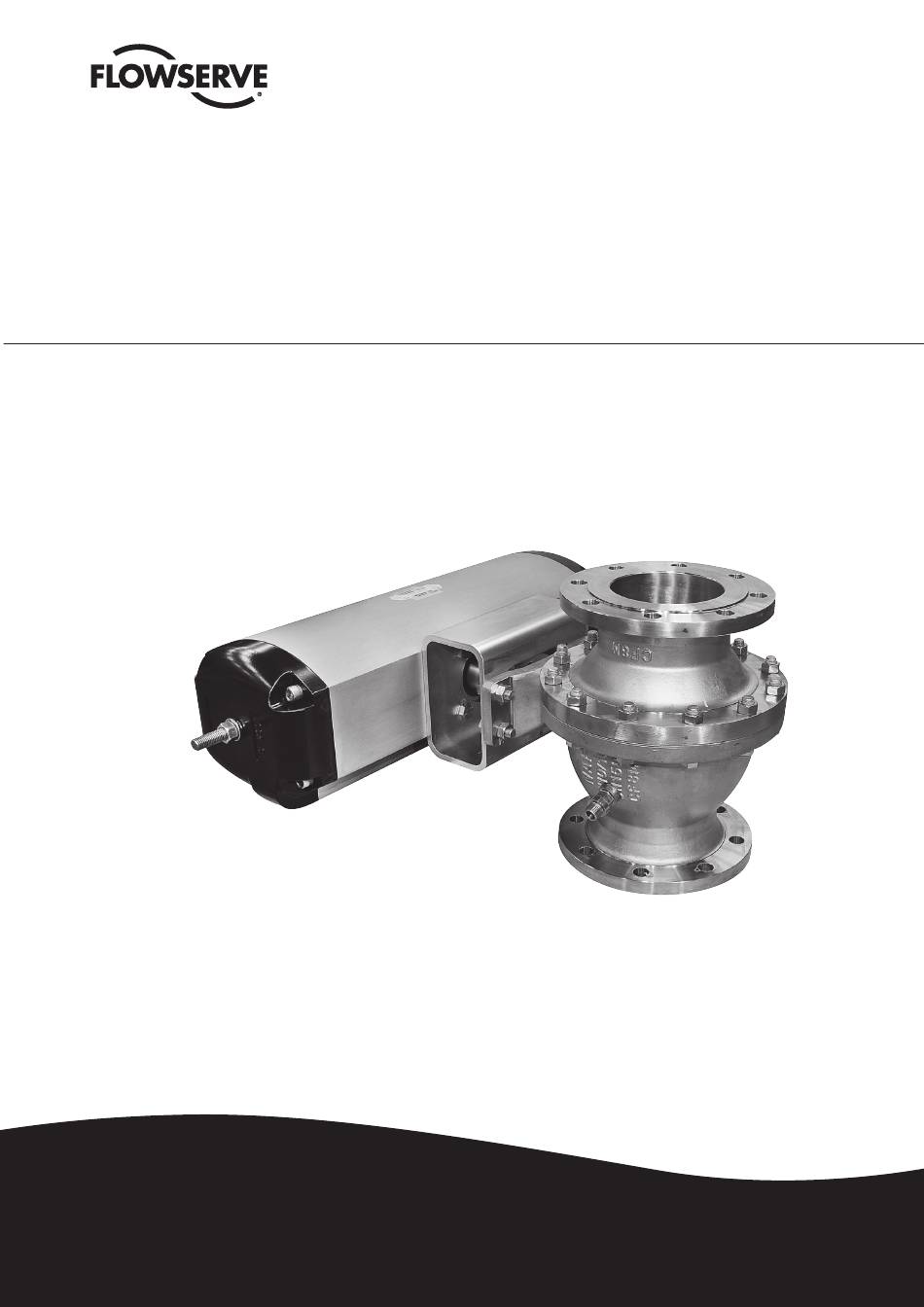

  • Page 1 USER INSTRUCTIONS NAF Duball DL Ball Valves NFENIM4163-00-A4 05/17 NAF Duball DL Pocket Valve Installation Operation Maintenance FCD NFENIM4163-00-A4 05/17 Experience In Motion flowserve.com...
  • Page 2: Table Of Contents

    The risk is highest with automated valves. The instructions and list of spare parts in this document are applicable Take necessary safety precautions to avoid unintentional to the NAF Duball DL Pocket Valve in accordance with our Technical stroking of the actuator / valve. Bulletin NFENTB4163.
  • Page 3: Lifting

    Figure 1: Schematic lifting of a valve with mounted actuator. Note that the final lifting of the valve into a vertical pipe requires different lifting A typical application for the NAF Duball DL Pocket Valve is when it’s installed points.
  • Page 4: Operating Sequence

    5 Operating sequence recommended that the Pocket ball remains in this position for at least The NAF Duball DL Pocket Valve is operated by the following sequence: 10 seconds. However, due to the nature of the debris in the Pocket ball, 1.
  • Page 5 NAF Duball DL Ball Valves NFENIM4163-00-A4 05/17 flowserve.com...
  • Page 6: Commissioning

    7 Operation Table 1: The total volume of the Pocket ball cavity The NAF Duball DL Pocket Valve is installed to safely remove sand/ debris out of the process as effectively as possible while maintaining When the Pocket Valve is taken into operation, it is recommended that process pressure.
  • Page 7: Bill Of Materials And Recommended Spare Part Kits

    NAF Duball DL Ball Valves NFENIM4163-00-A4 05/17 8 Bill of Materials and recommended spare part kits 11 12 16 6 Figure 5: Exploded view with item/part numbering Item Part Item Part Body, main Anti-friction Washer Body, cover Body seal Pocket Ball...
  • Page 8: Ordering Of Spare Parts

    Remove the body cover (2). inspected regularly and any issues should immediately be corrected. As the NAF Duball DL Pocket Valve is used in high wear and high cycle Remove the ball (3), which is done when the ball is in the applications, we highly recommend that an inspection is performed position shown in Figure 6.
  • Page 9: Reassembly Of The Valve

    NAF Duball DL Ball Valves NFENIM4163-00-A4 05/17 10.3 Reassembly of the valve There should be a small gap between the Pocket ball and the To replace parts, see sections 10.4-10.6 below. After the inspection seat ring to get the correct torque while restricting big particles and/or part replacements have been made, reassemble the valve as from entering the body.
  • Page 10: Replacing The Pocket Ball

    If the sealing areas on the Pocket ball are damaged, we recommend that the valve is returned to Flowserve for overhaul. This applies in particular if the ball must be reground before lapping. Assemble the valve before dispatching it to Flowserve NAF.
  • Page 11: Fitting An Actuator To The Pocket Valve

    NAF Duball DL Ball Valves NFENIM4163-00-A4 05/17 Figure 9.Stem packing Assemble and, if possible, pressure test, the valve as described in Section 10.3. However, first assess whether the seat rings (4) and pocket ball (3) should be replaced. 11 Fitting an actuator to the Pocket Valve Fit the actuator to the valve.
  • Page 12 Flowserve product is designed to perform its intended function safely during its useful life. However, the purchaser or user of Flowserve products should be aware that Flowserve products might be used in numerous applications under a wide variety of industrial service conditions. Although Flowserve can (and often does) provide general guidelines, it cannot provide specific data and warnings for all possible applications.
