USB Gateway

Enabling USB GATEWAY

In order to use USB GATEWAY and it's features, (1) the USB Gateway must be plugged
into the PC, (2) a telephone handset must be plugged into the USB Gateway, (3) the USB
1
Gateway must be connected to the telephone wall jack and (4) the VOIP agent must be
running (see green telephone in the Windows System Tray).
(note 1 – this is only required for making regular phone calls or for forwarding Skype
calls to your mobile (or other off-site) phone or for toll bypass applications)

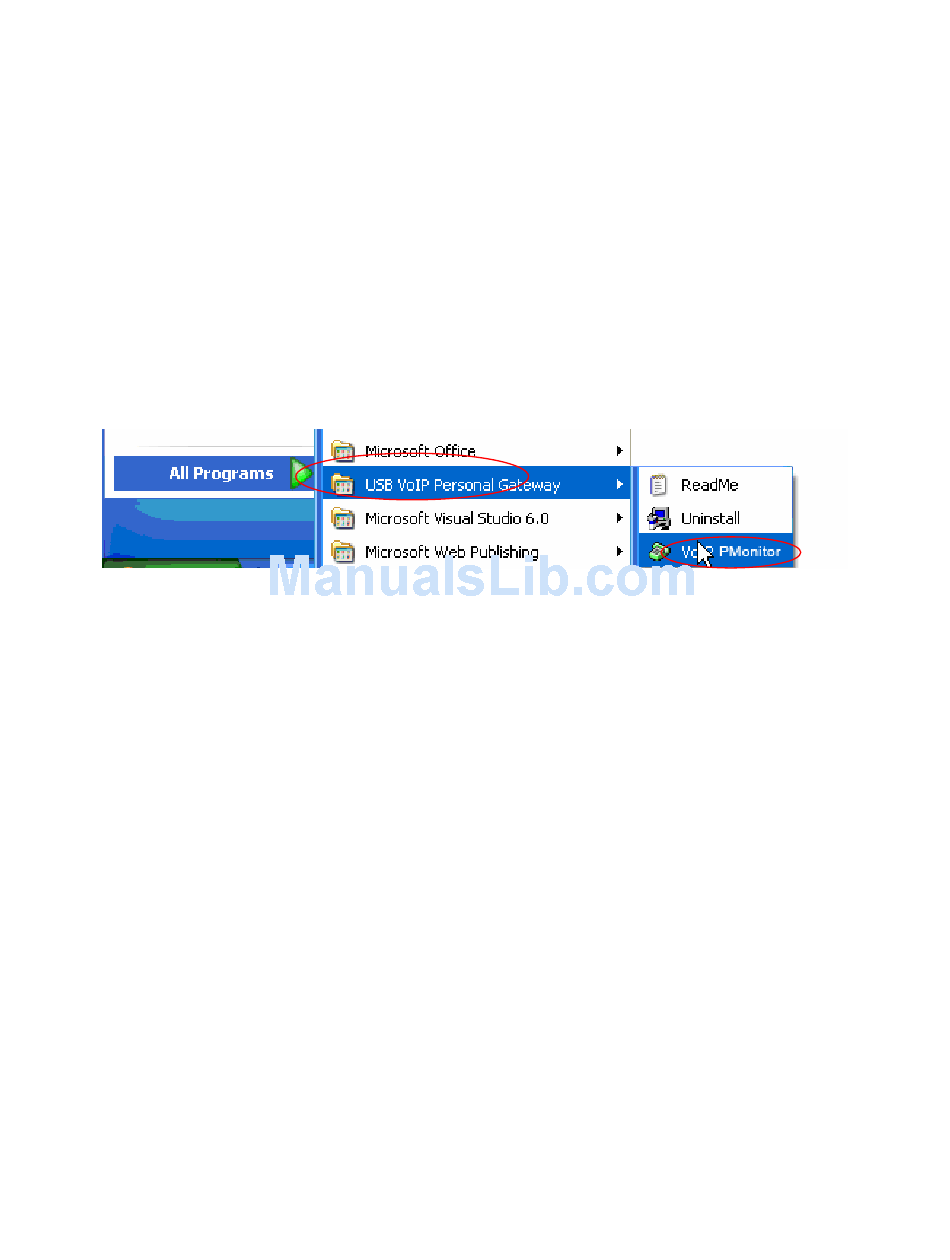

If the VOIP Agent is not running (i.e. no green telephone in the system tray), make sure
the USB Gateway is connected to the PC and start the VoIP Agent as shown below (Start
-> All Programs -> USB VoIP Persional Gateway -> VoIP Agent):
Page 18 of 48
