PZ277EK 1.2.0 03/2020. 0.5

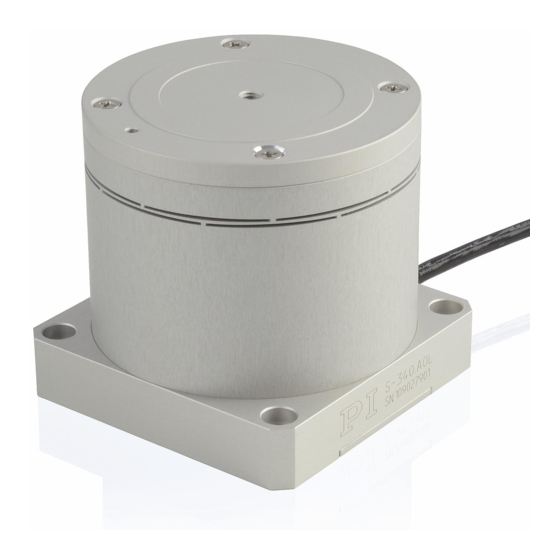

Piezo Tip/Tilt Platforms
Short instructions
S-3xx
User Information
These short instructions contain an overview of the most important safety and handling instruc-
tions for installing and operating piezo tip/tilt stages with (hereinafter referred to as "positioner")
with the product codes given above (x: any number).
Subject to change. These short instructions are superseded by any new release. The latest respec-
tive release is available for download on our website.
Downloading and Reading the Manual
The actions during installation, startup, and maintenance require additional information from the
manuals of the positioner and/or the electronics used.
Manuals may be titled as follows: "User Manual", "Technical Note".
Downloading the Manuals from the Website
1. Open the website www.pi.ws.
2. Search the website for the product number (e.g., C-663.12) or the product family (e.g., PICMA®
Bender).
3. Click the corresponding product to open the product detail page.
4. Click Downloads.
The manuals are shown under Documentation.
5. Click the desired manual and fill out the enquiry form.
The download link will then be sent to the email address entered.
If you cannot find the manual you are looking for or if you have any questions: Contact our custo-
mer service department via service@pi.de.
Physik Instrumente (PI) GmbH & Co. KG, Auf der Roemerstr. 1, 76228 Karlsruhe, Germany
Phone +49 721 4846-0, Fax +49 721 4846-1019, Email info@pi.de, www.pi.de
M O T I O N | P O S I T I O N I N G
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PI S-3 Series
Summary of Contents for PI S-3 Series
- Page 1 If you cannot find the manual you are looking for or if you have any questions: Contact our custo- mer service department via service@pi.de. Physik Instrumente (PI) GmbH & Co. KG, Auf der Roemerstr. 1, 76228 Karlsruhe, Germany Phone +49 721 4846-0, Fax +49 721 4846-1019, Email info@pi.de, www.pi.de...
- Page 2 PZ277EK 1.2.0 03/2020. 0.5 Page 2 of 6 Installation Safety Temperature changes and compressive stress can induce charges in the positioner. After disconnection from the electronics, the piezo Intended Use actuators can remain charged for several hours. The positioner is a laboratory device as defined Touching charged parts can result in minor by DIN EN 61010-1.
- Page 3 PZ277EK 1.2.0 03/2020. 0.5 Page 3 of 6 Mirrors not fixed centrically can damage the Moisture, liquids, and electrically conductive positioner. materials (e.g., metal dust) that penetrates For dynamic applications, mount the mirror the positioner, as well as surroundings with as near to the center as possible to prevent increased conductivity, can destroy the piezo uneven loading of the flexures and, as a actuators of the positioner.
- Page 4 PZ277EK 1.2.0 03/2020. 0.5 Page 4 of 6 Mounting the Positioner Mounting the Mirror and the Protective Earth Conductor NOTICE! Requirements Incorrect mounting of a mirror or mirror ✔ The positioner is not connected to the holder can damage the positioner and electronics.
- Page 5 PZ277EK 1.2.0 03/2020. 0.5 Page 5 of 6 Mounting the Positioner Mounting with a Clamp If there is no separate protective earth con- nection, the positioner must be mounted on a surface or a mounting that is electrically conductive and connected to protective earth conductor.
- Page 6 Old Equipment Disposal disposal of all old PI equipment made available to the market after 13 August 2005. If you have an old device from PI, you can send In accordance with EU law, electrical and it to PI free of charge.
