This user manual contains the information needed for the intended use of the L-412.xx9211E0. Basic knowledge of closed-loop systems, motion control concepts, and applicable safety measures is assumed. Explanation of Symbols This chapter explains the symbols and markings used by PI in their user manuals. 2.2.1 Typographic Conventions Symbol / Label Meaning...
(p. 26). Downloading Manuals 1. Open the website www.pi.ws. 2. If the product was shipped with a data storage device: Log into the website: a) Click Login. b) Enter the login data. The login data is in the [...]_Releasenews_[...].pdf in the Manuals directory on the data storage device.
► Always keep this user manual available with the L-412.xx9211E0. The latest versions of the user manuals can be downloaded (p. 6) at www.pi.ws. ► Add all information from the manufacturer such as supplements or technical notes to the user manual.

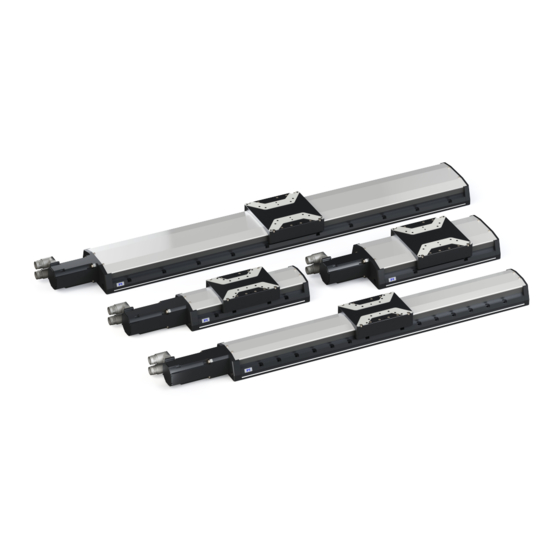

High-load linear stage, xx mm travel range, 116 mm width, 400 N load capacity, incremental linear encoder with sin/cos signal transmission, 20 µm signal period, synchronous servo motor, to 320 V Product number Travel range: xx L-412.039211E0 52 mm (2") L-412.059211E0 102 mm (4") L-412.099211E0 204 mm (8")
4 PRODUCT DESCRIPTION L412M0016EN ‒ 3/14/2019 4.2.1 Type Plate Figure 2: Type plate of the L-412.xx9211E0 1. Data matrix code (example; contains the serial number) 2. Product number (example) 3. Serial number (example), individual for each L-412.xx9211E0 Meaning of the position (counting from the left): 1 = internal information, 2 and 3 = year of manufacture, 4 to 9 = consecutive numbers...
4 PRODUCT DESCRIPTION L412M0016EN ‒ 3/14/2019 Overview Figure 3: Elements of the L-412.xx9211E0 1. Base body 2. Motion platform 3. Drive 4. Drive and rotary encoder connector 5. Purge air connector 6. Linear encoder connector 7. Grease nipple for relubricating the drive screw 4.4.1 Base Body The base body is the basis of the positioner.
4 PRODUCT DESCRIPTION L412M0016EN ‒ 3/14/2019 The drive comprises the following subassembly (subassemblies): Motor The motor generates the torque required for the dynamics of the motion platform. Rotary encoder The rotary encoder measures the motor shaft's angle of rotation. This signal can be used by suitable electronics for commutating the motor .
Page 12
4 PRODUCT DESCRIPTION L412M0016EN ‒ 3/14/2019 Active dust protection The active dust protection consists of a purge air connector on the base body of the L-412.xx9211E0, which creates a slight overpressure in the L-412.xx9211E0 and therefore reduces the amount of dust that can penetrate. M O T I O N | P O S I T I O N I N G...
5 UNPACKING L412M0016EN ‒ 3/14/2019 Unpacking Unpacking the L-412.xx9211E0 1. Unpack the L-412.xx9211E0 with care. Hold the L-412.xx9211E0 by its base body only. 2. Compare the contents with the scope of delivery according to the contract and the delivery note. 3.
6 INSTALLATION L412M0016EN ‒ 3/14/2019 Installation Mounting the L-412.xx9211E0 Overview Figure 4: Mounting the L-412.xx9211E0 onto an underlying surface Tools and Accessories Screw set for mounting the L-412.xx9211E0 (p. 9) ■ ■ Suitable screwdriver Requirements You have read and understood the general safety instructions (p.
6 INSTALLATION L412M0016EN ‒ 3/14/2019 CAUTION Risk of crushing by moving parts! Risk of minor injuries from crushing between the moving parts of the L-412.xx9211E0 or the load and a fixed part or obstacle. ► Use safeguards to protect limbs in areas where they could be caught by moving parts. ►...
Page 16
6 INSTALLATION L412M0016EN ‒ 3/14/2019 Overview Figure 5: Protective earth connector on the L-412.xx9211E0 1. Connector for the protective earth conductor on the L-412.xx9211E0, indicated by the protective earth symbol 2. Safety washer 3. Flat washer 4. Protective earth conductor lug 5.
6 INSTALLATION L412M0016EN ‒ 3/14/2019 4. Make sure that the contact resistance is <0.1 Ω at 25 A at all connection points relevant for attaching the protective earth conductor. Mounting the Load onto the L-412.xx9211E0 Overview Figure 6: Mounting the load onto the L-412.xx9211E0 1.
► Make sure that the electronics support the drive type of the L-412.xx9211E0 and has been configured accordingly. ► Use cables from PI miCos only to connect the L-412.xx9211E0 to the electronics. ► Pay attention to correct pin assignment (p.
Page 19
6 INSTALLATION L412M0016EN ‒ 3/14/2019 b) Rotary encoder connector c) Drive connector d) Linear encoder connector 3. Secure the connectors against unintentional removal. 4. If necessary: Turn the drive and encoder connector carefully to a position suitable for your installation conditions. The drive and encoder connector of the L-412.xx9211E0 can be turned up to 180°...
7 STARTUP / OPERATION L412M0016EN ‒ 3/14/2019 Startup / Operation Starting and Operating the L-412.xx9211E0 Requirements You have read and understood the general safety instructions (p. ✓ For startup with a load or in a multi-axis system: You have installed the L-412.xx9211E0 ✓...
Page 21
1. Start the electronics (see the user manual for the electronics). 2. Configure the electronics for the L-412.xx9211E0 during startup: ■ If you are using a digital controller from PI: In the PC software, select the entry in the positioner database that matches the L-412.xx9211E0 exactly.
8 MAINTENANCE L412M0016EN ‒ 3/14/2019 Maintenance NOTICE Damage due to improper maintenance! Improper maintenance can lead to misalignment and failure of the L-412.xx9211E0. ► Loosen screws only according to the instructions in this manual or the instructions of our customer service department (p. 26).
8 MAINTENANCE L412M0016EN ‒ 3/14/2019 NOTICE Damage due to unsuitable cleaning agents! Some cleaning agents can cause rusting on the L-412.xx9211E0 or dissolve plastics, paints or adhesives. ► Do not clean with water or acetone. Cleaning the L-412.xx9211E0 1. Dampen the cloth with the cleaning agent or disinfectant. 2.
9 TROUBLESHOOTING L412M0016EN ‒ 3/14/2019 Troubleshooting The positioner does not move, no operating noise can be heard There is a motion error. ► Reset the motion error. Defective electronics ► Check the electronics. Check all connecting cables (p. 18). Electronics not connected correctly ►...
10 TRANSPORTATION L412M0016EN ‒ 3/14/2019 Transportation Preparing the L-412.xx9211E0 for Transportation 1. Pay attention to the ambient conditions and classifications (p. 30). 2. Pack the L-412.xx9211E0 in the original packaging. 3. If the L-412.xx9211E0 is to be sent, use a stable outer box. M O T I O N | P O S I T I O N I N G...
L412M0016EN ‒ 3/14/2019 Customer Service Department For enquiries and orders, contact your PI miCos representative or send us an email. If you have any questions concerning your system, provide the following information: ■ Product and serial numbers of all products in the system ■...
12 TECHNICAL DATA L412M0016EN ‒ 3/14/2019 Technical Data 12.1 Specifications Motion L-412.03 L-412.05 L-412.09 L-412.13 Unit Toler- ance Active axes Travel range Pitch / yaw ±9 ±14 ±19 ±29 μrad max. Straightness / flat- ±1.5 ±2.5 ±4 ±6 μm max. ness Velocity, unloaded mm/s max.
Page 28
12 TECHNICAL DATA L412M0016EN ‒ 3/14/2019 Encoder options L-412.xxx211Ex Unit Toler- ance Integrated sensor Incremental linear encoder For additional rotary encoder, see basic op- tion Sensor signal Sin/cos, 1 V peak-peak, 20 μm signal period Design resolution – μm Minimum incremental mo- typ.
Page 29
12 TECHNICAL DATA L412M0016EN ‒ 3/14/2019 Drive properties L-412.xx9 Unit Toler- ance Drive type Synchronous Servo Motor Intermediate circuit voltage, V DC max. Peak torque 2.76 N·m typ. Nominal torque N·m typ. Peak current, RMS 10.9 typ. Nominal current, RMS 2.73 typ.
12 TECHNICAL DATA L412M0016EN ‒ 3/14/2019 Miscellaneous L-412 Unit Toler- ance Operating temperature range 5 to 40 °C Material Aluminum, black anodized stainless steel Overall mass L-412.03 (52 mm travel range): 6.4 ±5 % L-412.05 (102 mm travel range): 6.9 L-412.09 (204 mm travel range): 7.9 L-412.13 (305 mm travel range): 8.9 L-412.17 (407 mm travel range): 9.8...
12 TECHNICAL DATA L412M0016EN ‒ 3/14/2019 Area of application For indoor use only Maximum altitude 2000 m above msl Relative humidity Max. 80 % for temperatures to 31 °C, linearly decreasing to 50 % at 40 °C Storage temperature -25 °C to 55 °C Transport temperature -25 °C to 70 °C Overvoltage category...
Page 32
12 TECHNICAL DATA L412M0016EN ‒ 3/14/2019 4 x M6 8 4 x M6 8 4 x M6 8 4 H7x7 4 H7x7 4 H7x7 Figure 9: Motion platform of the L-412.xx9211E0: Dimensions and mounting holes Dimensions in mm. Note that the decimal places are separated by a comma in the drawings. M O T I O N | P O S I T I O N I N G...
In order to fulfil the responsibility as the product manufacturer, PI miCos undertakes environmentally correct disposal of all PI miCos equipment free of charge, if it was made available to the market after August 13, 2005. Any old PI miCos equipment can be sent free of charge to the following address:...
14 APPENDIX L412M0016EN ‒ 3/14/2019 Appendix 14.1 Pin Assignment 14.1.1 Drive Connector Figure 10: M23 8 (f) Signal Function Phase 1 Protective earth Phase 3 Phase 2 Not connected Not connected Not connected Not connected 14.1.2 Motor encoder 16 17 M O T I O N | P O S I T I O N I N G...
Page 35
14 APPENDIX L412M0016EN ‒ 3/14/2019 Signal Function Output: Sensor signal B B inv Output: Sensor signal B inverted Output: Sensor signal A A inv Output: Sensor signal A inverted Output: Sensor signal Z Z inv Output: Sensor signal Z inverted Ground THERM+ Output: Temperature sensor...
14 APPENDIX L412M0016EN ‒ 3/14/2019 14.3 Commutation Encoder The L-412.xx9211E0's motor has a commutation encoder that codes the position of the magnets in the same way as a Hall effect sensor. π 2π 3π 4π Figure 12: Motorphasen (oben) und Signalausgabe an die Kommutierungsspuren (unten) M O T I O N | P O S I T I O N I N G...
15 EU DECLARATION OF CONFORMITY L412M0016EN ‒ 3/14/2019 EU Declaration of Conformity An EU Declaration of Conformity was issued for the L-412.xx9211E0 in accordance with the following European directives: ■ Low Voltage Directive ■ EMC Directive ■ RoHS Directive The standards applied for certifying conformity are listed below. ■...
Page 39
Each limit switch sends its signal to the controller on a dedicated line. The controller then interrupts the motion avoiding that the positioner moves until the hard stop and gets damaged. PI positioners have mechanical, noncontact optical or Hall-effect limit switches. Linear Encoder The linear encoder is an incremental sensor for capturing changes in position.
Page 40
L412M0016EN ‒ 3/14/2019 Reference Point Switch Many of the positioners are equipped with a direction sensing reference point switch positioned approx. in the middle of the travel range. It is recommended to approach the reference point switch always from the same direction to obtain best position repeatability. Function: Optical, magnetic Sensor resolution The sensor can be the critical element of position resolution so it may be necessary to...
