Evaluation Board User Guide

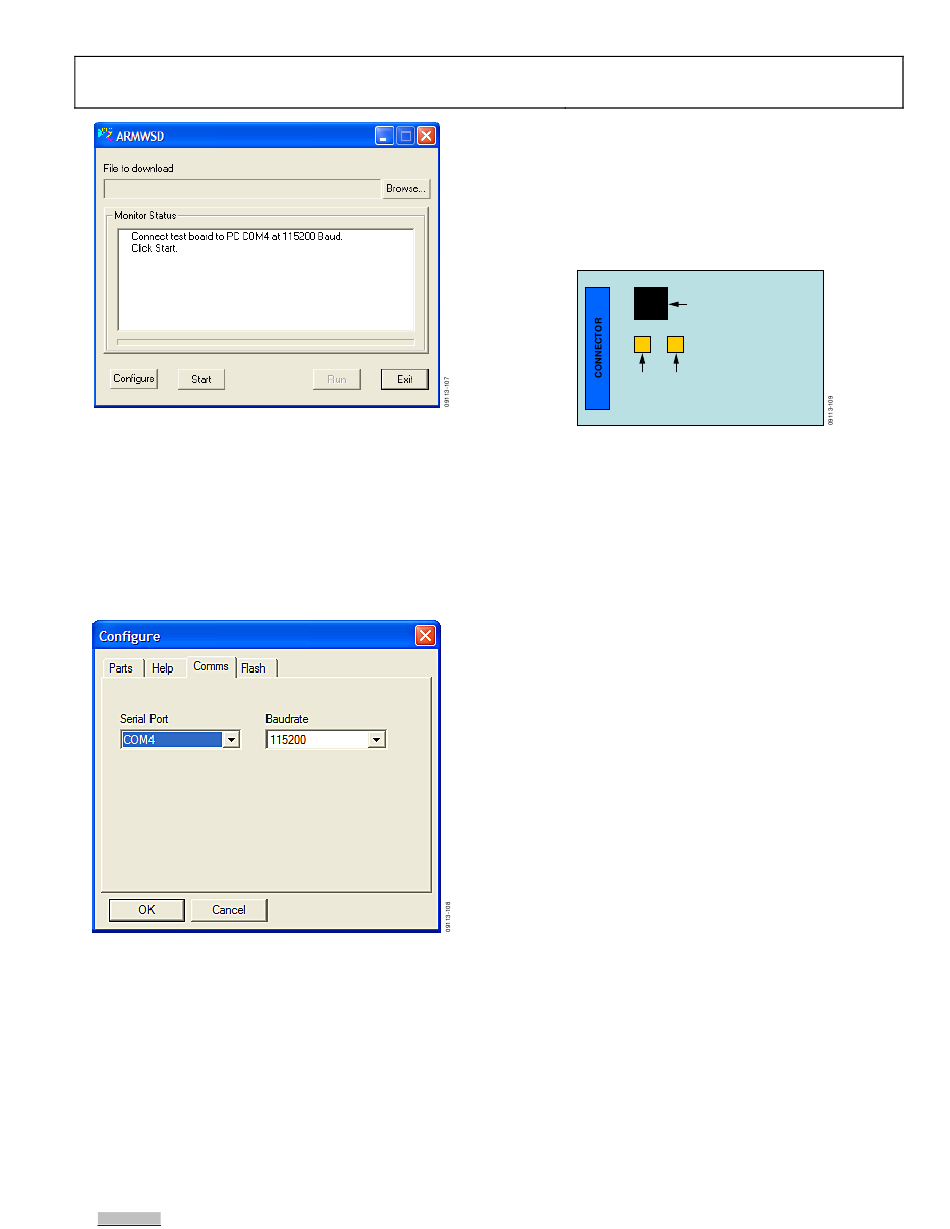

Figure 8. ISEB ARMWSD Firmware Downloader
3. Click Browse... and select the ADI_ISEB_FW_2_0.hex
file located in the /ISEB_USB/FW/ folder or the most
recent firmware obtained from the Analog Devices website
(www.analog.com).
4. Click Configure to display the box shown in Figure 9.
The downloader file should be configured for the
microcontroller on the ISEB. The only option you may need to
change is the COM port. You can select the correct port from
the Serial Port menu on the Comms tab (see Figure 9).
Figure 9. Selecting the Correct COM Port for the Downloader
When the COM port is selected, click OK to accept the changes
and go back to the ARMWSD box (shown in Figure 8).
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
When the ISEB is connected, the correct firmware is selected,
and the downloader is fully configured, follow these steps to
flash the firmware:
1.
ADuC7026
2.
3.
Updating the firmware may require that a new evaluation GUI
be obtained. If the firmware on the CD is used to flash the ISEB,
the evaluation GUI on the corresponding CD is sufficient. If the
firmware used is obtained from the Analog Devices website
(www.analog.com), the most recent version of the evaluation
GUI, which is also located on the website, should be used.
Installing the ADXRS800 Software Evaluation GUI
The software GUI installation has been created to include any
required National Instruments drivers and run-time engines
that are necessary for proper operation. To run the software
GUI installation routine, double-click the setup.exe file located
in the /ADXRS800 Evaluation Software/ folder on the
included CD. The window shown in Figure 11 is displayed.
Rev. 0 | Page 5 of 16
Click Start in the ARMWSD box (see Figure 8) to initiate
the flashing process. After clicking Start, click the two
buttons (shown in Figure 10) on the ISEB in the following
order to flash the firmware:
ADuC7026
SW1 SW2
Figure 10. ISEB Switch Locations for Flashing the Microcontroller
a. Press and hold down SW1.
b. With SW1 held down, press and release SW2.
c. Release SW1.
The download begins and is automatically verified by the
downloader.
If the downloading process fails, which is indicated in the
Monitor Status box (see Figure 8), attempt the download
again by clicking Start and then pressing the appropriate
switch combination. It may take a few attempts to reprog-
ram the board successfully.
After the download has completed successfully, click Run
(as shown in Figure 8) to reset the ISEB and to begin
running the new firmware.
When this step is complete, the board is updated correctly.
UG-154
