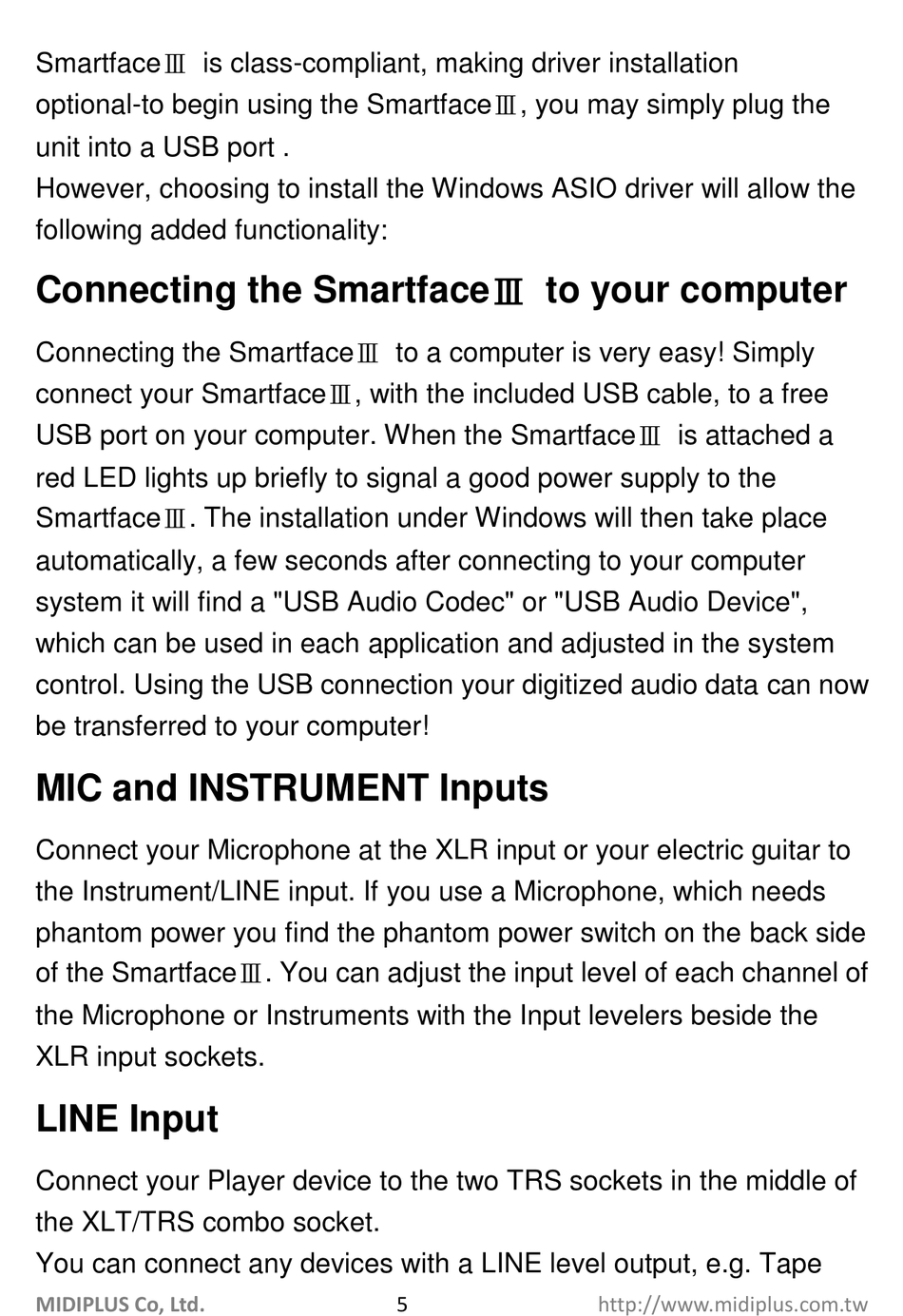

SmartfaceⅢ is class-compliant, making driver installation
optional-to begin using the SmartfaceⅢ, you may simply plug the
unit into a USB port .
However, choosing to install the Windows ASIO driver will allow the
following added functionality:
Connecting the SmartfaceⅢ to your computer
Connecting the SmartfaceⅢ to a computer is very easy! Simply
connect your SmartfaceⅢ, with the included USB cable, to a free
USB port on your computer. When the SmartfaceⅢ is attached a
red LED lights up briefly to signal a good power supply to the
SmartfaceⅢ. The installation under Windows will then take place
automatically, a few seconds after connecting to your computer
system it will find a "USB Audio Codec" or "USB Audio Device",
which can be used in each application and adjusted in the system
control. Using the USB connection your digitized audio data can now
be transferred to your computer!

MIC and INSTRUMENT Inputs

Connect your Microphone at the XLR input or your electric guitar to
the Instrument/LINE input. If you use a Microphone, which needs
phantom power you find the phantom power switch on the back side
of the SmartfaceⅢ. You can adjust the input level of each channel of
the Microphone or Instruments with the Input levelers beside the
XLR input sockets.

LINE Input

Connect your Player device to the two TRS sockets in the middle of
the XLT/TRS combo socket.
You can connect any devices with a LINE level output, e.g. Tape
