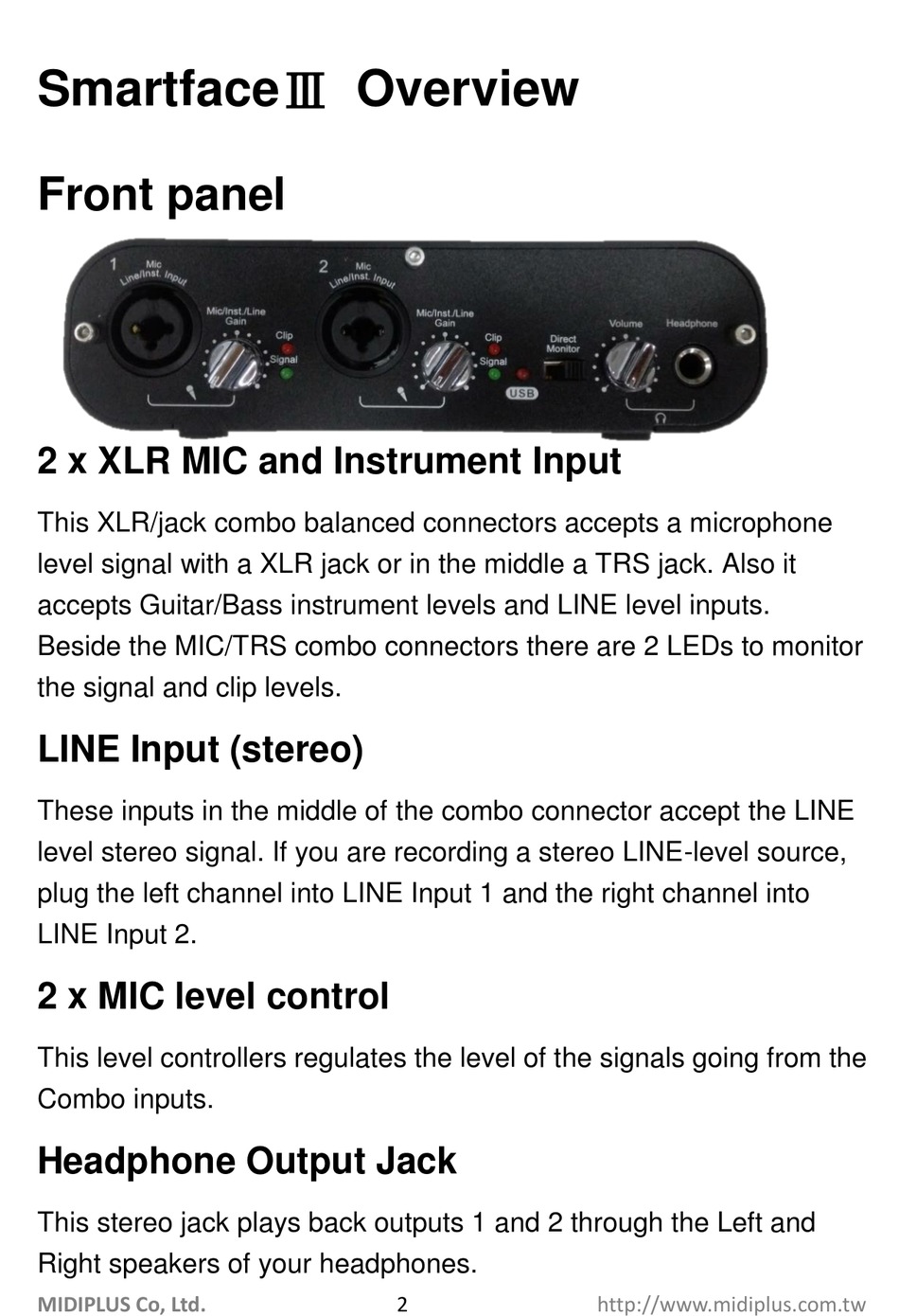

SmartfaceⅢ Overview

Front panel

2 x XLR MIC and Instrument Input
This XLR/jack combo balanced connectors accepts a microphone
level signal with a XLR jack or in the middle a TRS jack. Also it
accepts Guitar/Bass instrument levels and LINE level inputs.
Beside the MIC/TRS combo connectors there are 2 LEDs to monitor
the signal and clip levels.

LINE Input (stereo)

These inputs in the middle of the combo connector accept the LINE
level stereo signal. If you are recording a stereo LINE-level source,
plug the left channel into LINE Input 1 and the right channel into
LINE Input 2.
2 x MIC level control
This level controllers regulates the level of the signals going from the
Combo inputs.

Headphone Output Jack

This stereo jack plays back outputs 1 and 2 through the Left and
Right speakers of your headphones.
