midiplus SmartPAD Owner's Manual

Hide thumbs Also See for SmartPAD:
Table of Contents

Advertisement

Quick Links

Download this manual
MIDIPLUS Co, Ltd.
http://www.midiplus.com.tw

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartPAD and is the answer not in the manual?

Questions and answers

Related Manuals for midiplus SmartPAD

Summary of Contents for midiplus SmartPAD

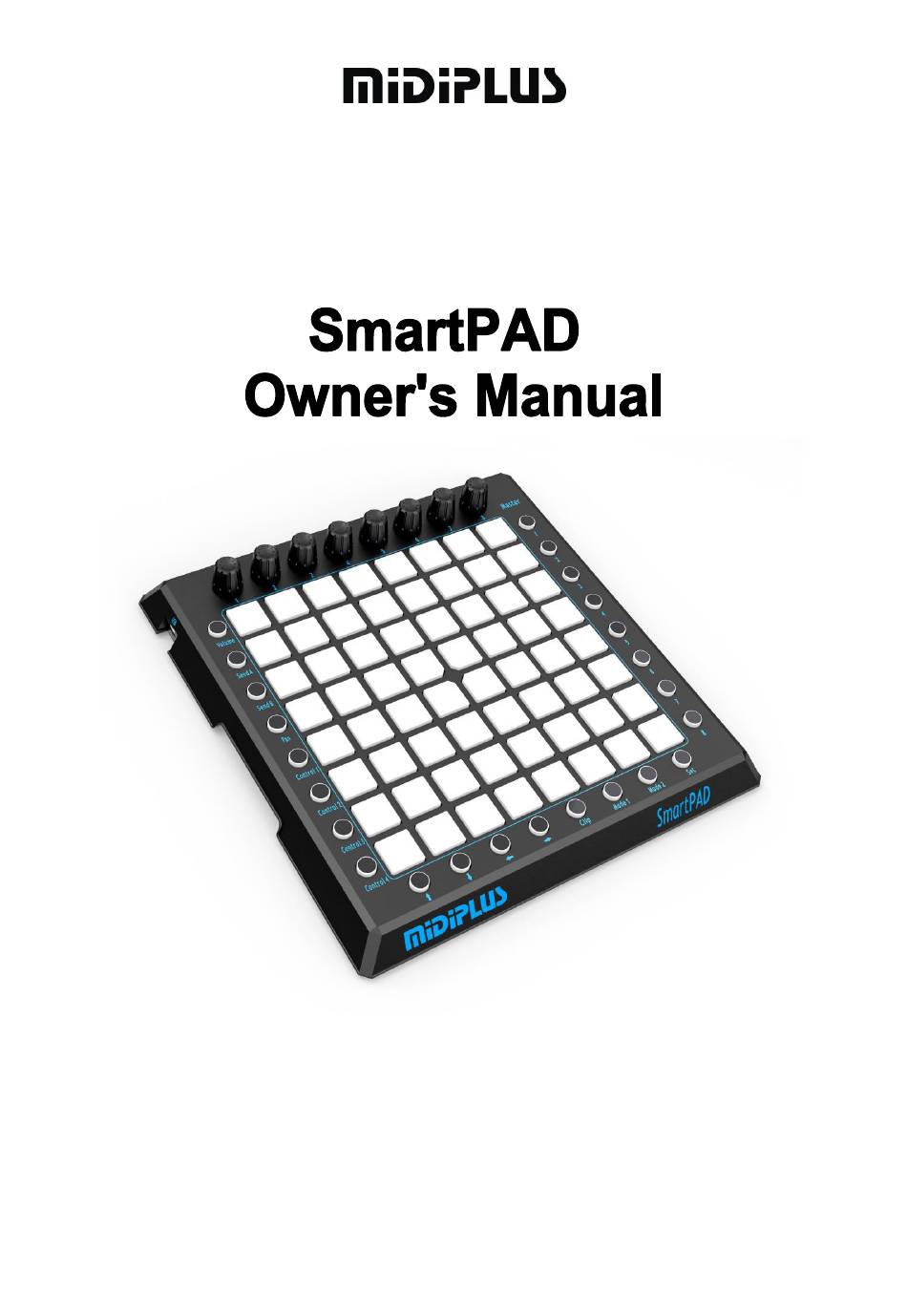

  • Page 1 MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...

  • Page 2: Table Of Contents

    What’s in the Box? ..................1 SmartPAD introduction ................1 Connection Diagram ................. 1 Software Setup ................... 2 Chapter 1：Quick Start ................3 1.1. SmartPAD panel Overview ............ 3 1.1.1. Encoder................. 3 1.1.2. Eight kinds of function ............3 1.1.3.

  • Page 3: Preface

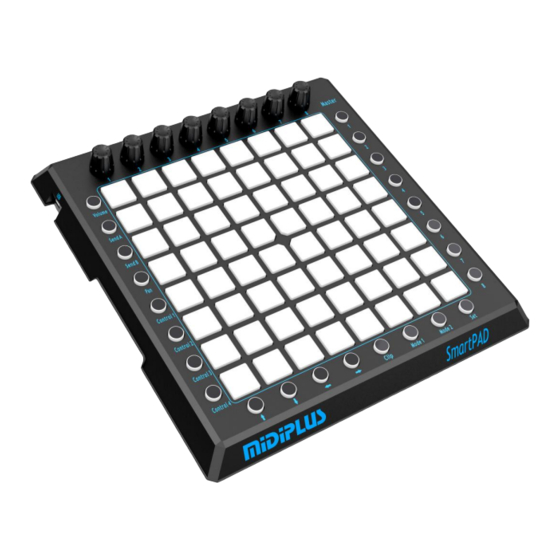

    SmartPAD introduction SmartPAD is designed for performance with Ableton Live．In this manual，you will find instructions on how to connect the SmartPAD and use its basic features with Ableton Live — Professional SmartPAD Manual Mapping．SmartPAD can also be used in "generic mode"...

  • Page 4: Software Setup

    Software Setup After connecting the SmartPAD(as shown in the Connection Diagram),you will need to configure Ableton Live to recognize it:  Open Ableton Live — SmartPAD Manual Mapping (after connecting).  Go to Options ->Preferences(PC) or Live ->Preferences(MAC).  Select “SmartPAD” as the device for the “Input” and “Output”.

  • Page 5: Chapter 1：Quick Start

    Chapter 1：Quick Start 1.1. SmartPAD panel Overview Encoder Eight kinds of function The direction key and four play Scene launch Clip Launch/Session overview 1.1.1. Encoder Change the values (CC) of each mode(Behind the list). 1.1.2. Eight kinds of function ...

  • Page 6: The Direction Key And Four Play

    LED light when to move up, moved to 1-8 on the line, that is 0, " Down " button LED will turn off, " Up"LED is not light.( SmartPad CLIP matrix buttons up - send information accordingly, LED display effect is up, for example: the current scene for 3-10 lines, move up a line into 2-9) MIDIPLUS Co, Ltd.
  • Page 7 "Down" button LED will be lit.Only recovered to 1-8 line is 0, LED will turn off. ( SmartPad CLIP matrix buttons down - send information accordingly, LED display effect is down, for example: the current scene for 1-8 lines, move down a line into 2-9) "Up"...
  • Page 8 The default 1-8 lines, 1-8 column, "Down"and"Right" LED are not light: After move down a line, "Down" LED light: After move right one column, "Right" LED light: MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
  • Page 9 "Up", "Down", "Left", "Right" BUTTON). “Down”and“Right” are 0, that is 1-8 lines, 1-8 column (“Down”and“Right” keys LED turn out state) : Some BUTTON enable or not , SmartPad state:Enable make red, not to make blue MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
  • Page 10  Mode 1 Corresponding software on the Drum Rack effect (The clip matrix buttons becomes PADs to use, press the LED will light blue). Software DRUM model MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
  • Page 11  Mode 2 Open the sequencer, corresponds to the SmartPad matrix button 3 lines buttons on the bottom ,and it can use the "Left", "Right" move around.Switch to the 1. MUTE(Green LED). 2. SOLO(Blue LED). 3. RECORD(Red LED).  This mode by pressing the buttons on the Clip matrix to control the size of "Volume"...
  • Page 12 “Volume”： SET(SET) mode with“Volume”mode. “Send A”： SET(SET) mode with“Send A”mode. “Send B”： SET(SET) mode with“Send B”mode. MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...

  • Page 13: Scene Launch

    “PAN”： SET(SET) mode with“PAN”mode. “CONTROL1”-“CONTROL4”： SET(set) mode with“CONTROL1”-“CONTROL4” mode,SmartPad matrix button can't control the value of the encoder, but LED lights a specified pattern. 1.1.4. Scene launch Each button of the group will trigger CLIP mode (Clip has been mapping) matrix keys in each line (you can use the "Up", "Down"...

  • Page 14: Clip Launch/Session Overview

    Purple shaded area in the picture can be mapped, the mouse to click a particular area you want to map,then SmartPad send information can be used. SmartPad encoder and 8 * 8 matrix button can send information, after the completion of the mapping again, click on the "MIDI"...

  • Page 15: 1.2. Minimum System Requirement

    Notice: Map button, if you don't succeed, then you need to press a few times more buttons or back into the software mapping interface (" MIDI "). 1.2. Minimum System Requirement If you are using your SmartPAD with a computer, the following minimum system requirements need： Windows Mac OS Pentium 3800 MHz or higher.
