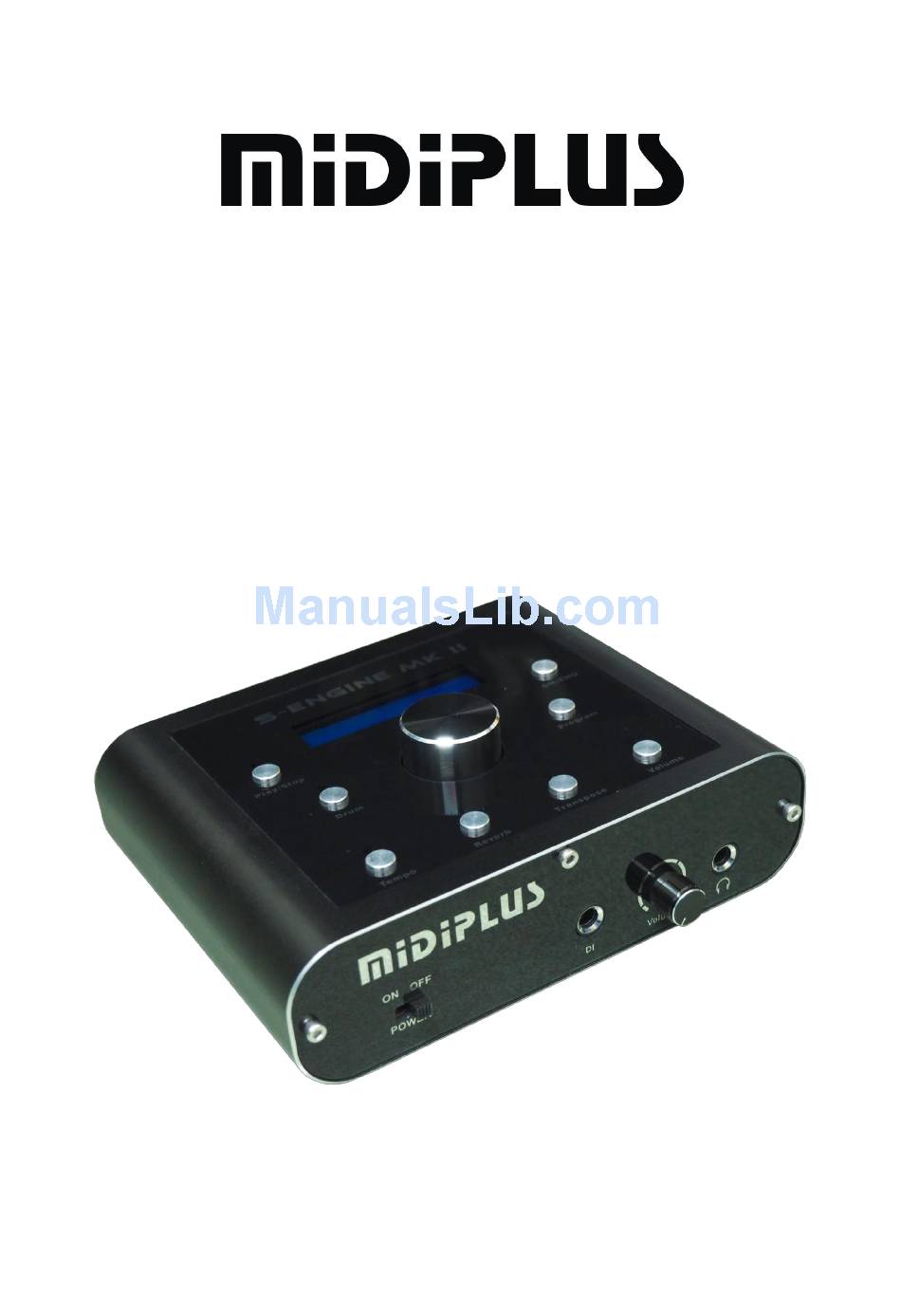

- Page 1 S-Engine MKII Owner´s manual MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
-
Page 2: Table Of Contents
6. Afterword........................5 7. List of the S-Engine MKII Sounds Bank ................6 7.1 List of the S-Engine MKII GM sound bank .............. 6 7.2 List of the S-Engine 8030 EMU sound bank ............7 7.3 List of the drum patterns ..................8 MIDIPLUS Co, Ltd. -
Page 3: Preface
Connect your S-Engine MKII to a Master keyboard or computer, and you will be able to play easily different sounds, or use it for playback GM files from a computer or sequencer. -
Page 4: Technical Specifications Of The S-Engine Mkii

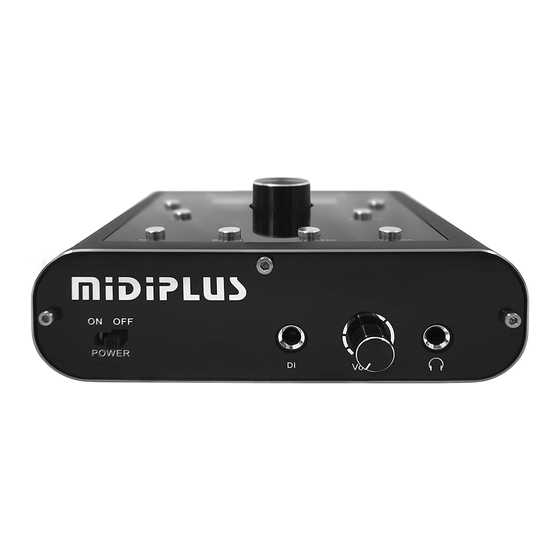

4. Connections and user panel 4.1 Front Panel On the front of the S-Engine MKII you will find the DI (direct input) for guitar/bass and the headphone out. Please connect your guitar or headphone here. Far left is the volume leveler, which controls the volume of the LINE Outs and the headphone out at the same time MIDIPLUS Co, Ltd. -
Page 5: Rear Panel
4.2 Rear panel On the rear panel of the S-Engine MKII you will find the LINE Out to connect the S- Engine MKII to an amplifier. Beside the LINE Outs there is the USB2.0, please connect to computer or external charger(DC5V , 1A) by USB cable, provide 5V power with communication . -
Page 6: How To Use The S-Engine Mkii
5. How to use the S-Engine MKII The basic buttons of the S-Engine MKII are the Drum, Program buttons and the Play/Stop button. The Drum, Program buttons switches between the basic modes: Drum box and Program module. In drum mode, the display shows a “Drum”, in sound mode, a “Sound”. -
Page 7: Afterword
6. Afterword. Because the S-Engine MKII’ is fully 8030 GM/EMU compatible, you can send normal GM/EMU bank select and program change orders with a sequencer ,a master keyboard or computer. So you will reach the additional sounds and drum sets. The drum sounds are only triggered on MIDI channel 10. -
Page 8: List Of The S-Engine Mkii Sounds Bank
7. List of the S-Engine MKII Sounds Bank 7.1 List of the S-Engine MKII GM sound bank MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... -
Page 9: List Of The S-Engine 8030 Emu Sound Bank
7.2 List of the S-Engine 8030 EMU sound bank MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... -
Page 10: List Of The Drum Patterns
7.3 List of the drum patterns more... MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... - Page 11 MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
