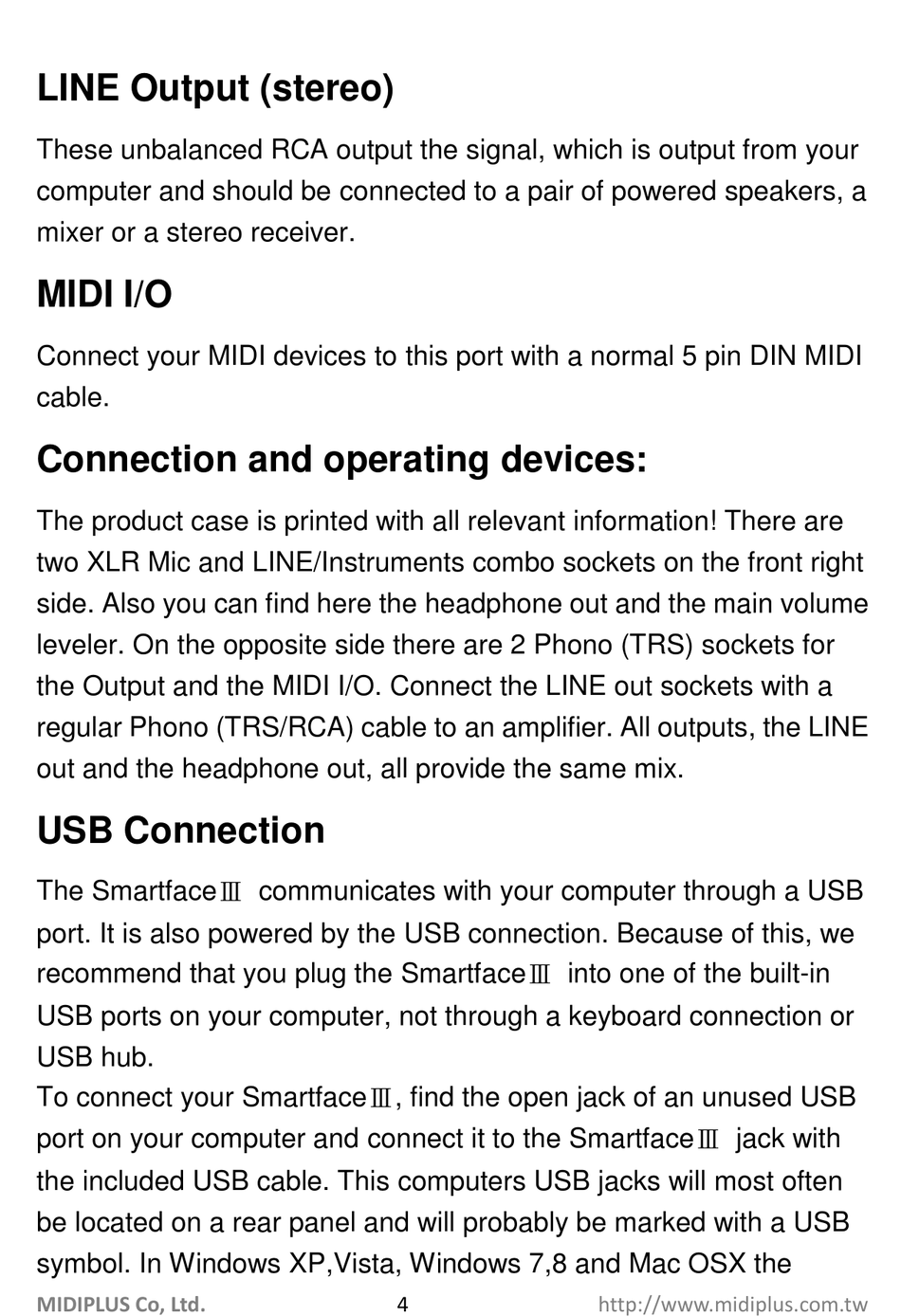

LINE Output (stereo)

These unbalanced RCA output the signal, which is output from your
computer and should be connected to a pair of powered speakers, a
mixer or a stereo receiver.

MIDI I/O

Connect your MIDI devices to this port with a normal 5 pin DIN MIDI
cable.

Connection and operating devices:

The product case is printed with all relevant information! There are
two XLR Mic and LINE/Instruments combo sockets on the front right
side. Also you can find here the headphone out and the main volume
leveler. On the opposite side there are 2 Phono (TRS) sockets for
the Output and the MIDI I/O. Connect the LINE out sockets with a
regular Phono (TRS/RCA) cable to an amplifier. All outputs, the LINE
out and the headphone out, all provide the same mix.

USB Connection

The SmartfaceⅢ communicates with your computer through a USB
port. It is also powered by the USB connection. Because of this, we
recommend that you plug the SmartfaceⅢ into one of the built-in
USB ports on your computer, not through a keyboard connection or
USB hub.
To connect your SmartfaceⅢ, find the open jack of an unused USB
port on your computer and connect it to the SmartfaceⅢ jack with
the included USB cable. This computers USB jacks will most often
be located on a rear panel and will probably be marked with a USB
symbol. In Windows XP,Vista, Windows 7,8 and Mac OSX the
