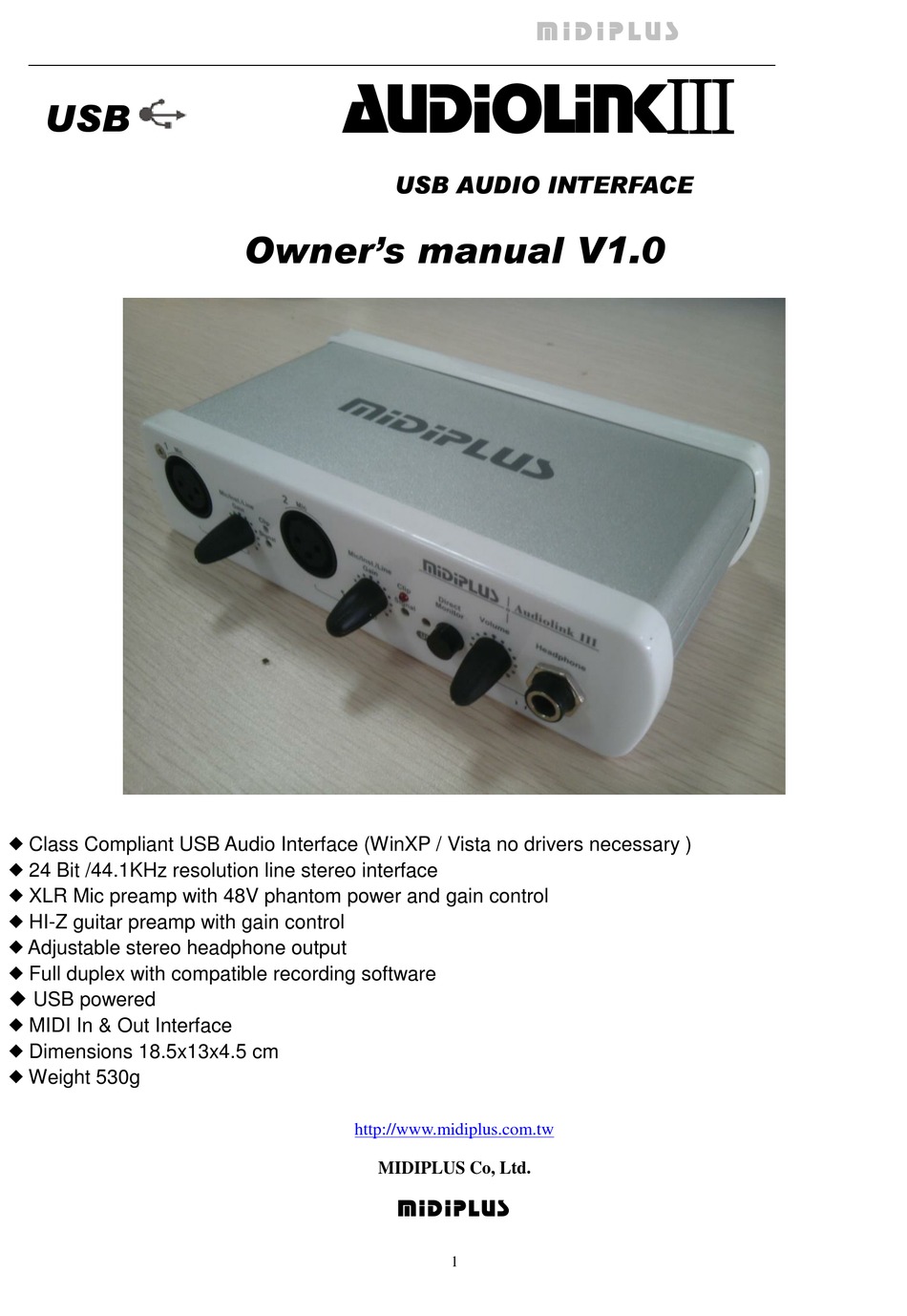

M I D I P L U S
AudiolinkⅢ
USB
USB AUDIO INTERFACE
Owner's manual V1.0
◆ Class Compliant USB Audio Interface (WinXP / Vista no drivers necessary )
◆ 24 Bit /44.1KHz resolution line stereo interface
◆ XLR Mic preamp with 48V phantom power and gain control
◆ HI-Z guitar preamp with gain control
◆ Adjustable stereo headphone output
◆ Full duplex with compatible recording software
◆ USB powered
◆ MIDI In & Out Interface
◆ Dimensions 18.5x13x4.5 cm
◆ Weight 530g
http://www.midiplus.com.tw
MIDIPLUS Co, Ltd.
M i d i p l u s
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for midiplus Audiolink III
Summary of Contents for midiplus Audiolink III
- Page 1 ◆ Adjustable stereo headphone output ◆ Full duplex with compatible recording software ◆ USB powered ◆ MIDI In & Out Interface ◆ Dimensions 18.5x13x4.5 cm ◆ Weight 530g http://www.midiplus.com.tw MIDIPLUS Co, Ltd. M i d i p l u s...
- Page 2 AudiolinkIII introduction Thank you for purchasing the MIDIPLUS audiolink3 USB Audio interface. This interface brings an unparalleled level of USB audio quality to the Mac or PC, with pristine 24-bit /48 KHz A/D and D/A converters, an ultra-low jitter clock, and low noise MIC/ line /hi-Z preamp. (made some changes here) You can download ASIO driver “Neutron_AL3_WIN32_2.9.30/ Neutron_AL3_X64_2.9.30”...
- Page 3 ◆ Native USB 1.1 Port, on motherboard ◆ Windows@ 98SE, 2000 (SP2), ME, or XP (SP1 ) Home or Pro (128 MB ) ◆ RAM required for XP Pro (128 MB) ◆ Recommended (1 GB) ◆ 700 MHz Pentium lll ◆...
- Page 4 and you will hear a “pop” or “tick” in the recording. This is a very bad thing, and clipping should be avoided for the best quality recording! There is enough headroom so that you can be conservative in this area, and there is no need to push the input levels (right delete word) up to the edge of clipping. 4.
- Page 5 It is for the system build-in USB driver Install. But if you want to install the ASIO driver for it, please do next:. 3. Download the ASIO Driver “Neutron_AL3_WIN32_2.9.30/ Neutron_AL3_X64_2.9.30” from: http://www.midiplus.com.tw/MIDIPLUS-Download.htm . 4. Install the ASIO Drivers. You should do this before connecting the Audiolink3 interface to the USB port on your computer. Insert the...
- Page 6 and then follow the on-screen directions.
- Page 7 Te c h n i c a l S p e c i f i c a t i o n s H a r d w a r e F e a t u r e s Analog Inputs: -Microphone &...
- Page 8 The RMAA Test Result: Frequent(From 40 Hz to 15 kHz), dB: +0.03, -0.31 Very good Noise level, dB (A): -91.8 Very good Dynamic range, dB (A): 91.6 Very good THD, %: 0.0073 Very good IMD + Noise, %: 0.017 Very good Stereo crosstalk, dB: -90.6 Very good...
