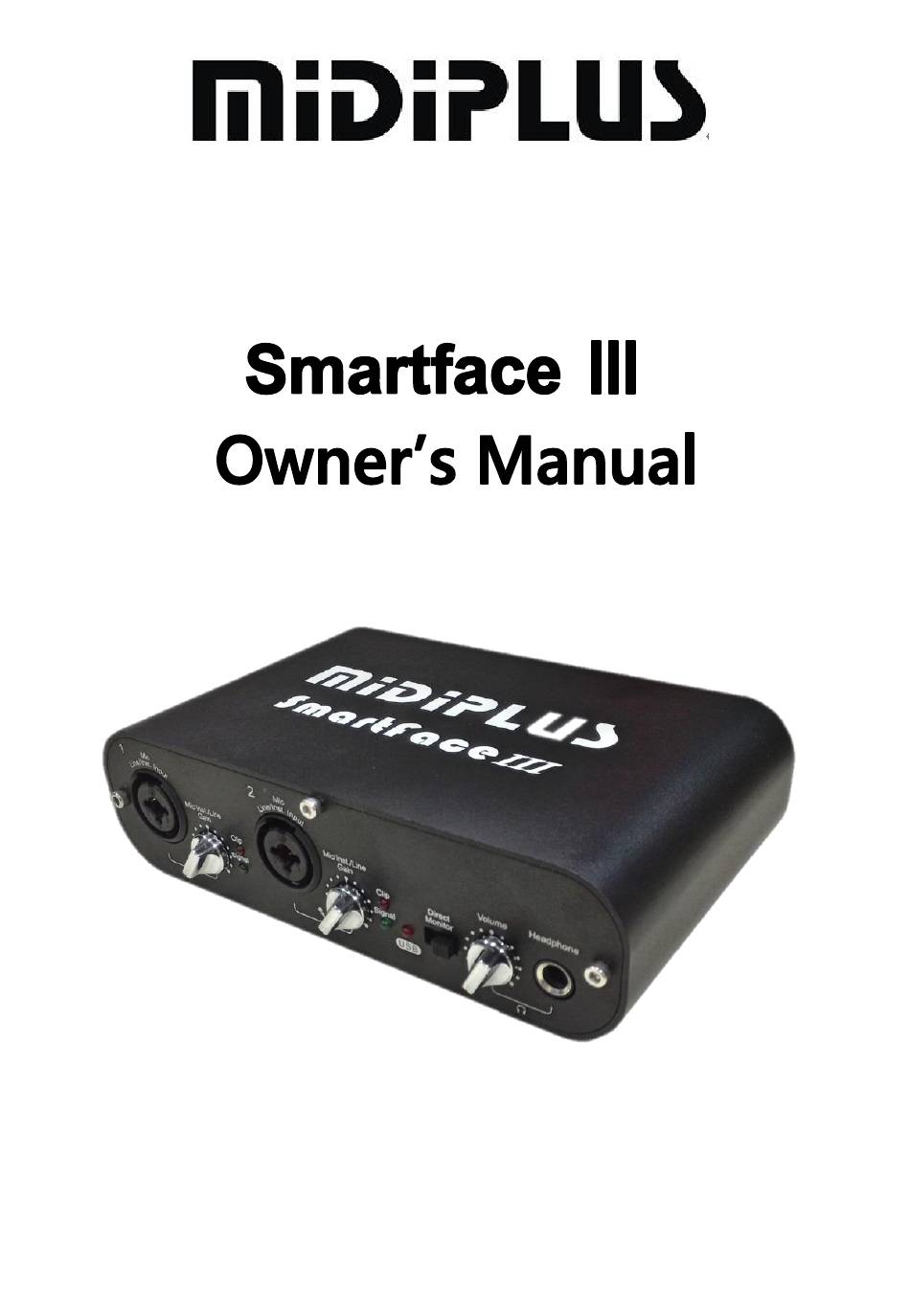

- Page 1 MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
-
Page 2: Table Of Contents
Connecting the SmartfaceⅢ to your computer ........5 MIC and INSTRUMENT Inputs ..............5 LINE Input ..................... 5 LINE-Output (Stereo TRS Jacks) .............. 6 HEADPHONE-Output (Stereo Jack 6,3 mm) .......... 6 MIDI I/O ......................6 SOFTWARE INSTALLATION ................ 6 Technical Specifications.................. 7 MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... -
Page 3: Preface

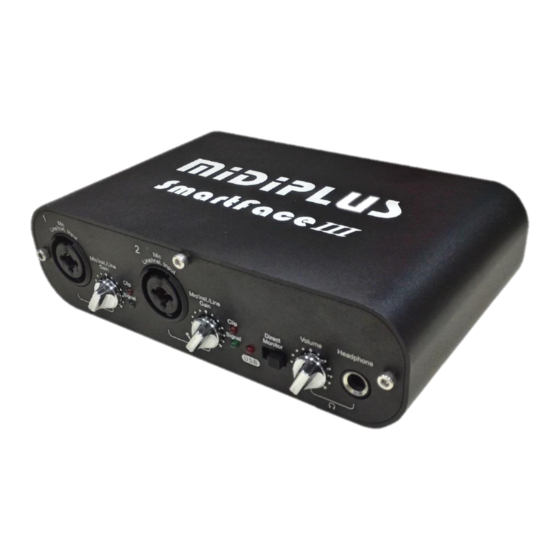

Preface Thank you for purchasing the MIDIPLUS SmartfaceⅢ USB Audio interface. This interface brings an unparalleled level of USB audio quality to the Mac or PC, with pristine 24-bit /44.1 KHz A/D and D/A converters, an ultra-low jitter clock, and low noise MIC/ line /hi-Z preamp. -
Page 4: Smartfaceⅲ Overview
2 x MIC level control This level controllers regulates the level of the signals going from the Combo inputs. Headphone Output Jack This stereo jack plays back outputs 1 and 2 through the Left and Right speakers of your headphones. MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... -
Page 5: Headphone And Line Out Output Level Control
2 (or higher) connection. It is also compatible with USB 1.1 and 3.0 ports. +48V Phantom power switch Switch both Mic Preamps to condensator microphones, which needs Phantom Power to work. Dynamic microphones will work without phantom power. MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... -
Page 6: Line Output (Stereo)
SmartfaceⅢ jack with the included USB cable. This computers USB jacks will most often be located on a rear panel and will probably be marked with a USB symbol. In Windows XP,Vista, Windows 7,8 and Mac OSX the MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... -
Page 7: Connecting The Smartfaceⅲ To Your Computer
Microphone or Instruments with the Input levelers beside the XLR input sockets. LINE Input Connect your Player device to the two TRS sockets in the middle of the XLT/TRS combo socket. You can connect any devices with a LINE level output, e.g. Tape MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... -
Page 8: Line-Output (Stereo Trs Jacks)
Windows will detect the new USB device and install the USB audio device automatically. It is for the system build-in USB driver Install. But if you want to install the ASIO driver for it, please do next. Download the ASIO Driver http://www.midiplus.com.tw/MIDIPLUS-Download.htm Install the ASIO Drivers MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... -
Page 9: Technical Specifications
1 / 4” & A-weighted ) ＞100 dB (typical, A-weighted ) Stereo S / N Ratio line -90dB (typical) ＞90 dB (typical,-60 dB input, Inputs, Dynamic Range Inst / A-weighted) ＞90dB (typical, A-weighted ) Mic(Line) Signal-to-Noise Ratio MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... - Page 10 Noise level, dB (A): -91.8 Very good Dynamic range, dB (A): 91.6 Very good THD, %: 0.0073 Very good IMD + Noise, %: 0.017 Very good -90.6 Very good Stereo crosstalk, dB: 0.019 Excellent IMD (10 kHz), %: MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
