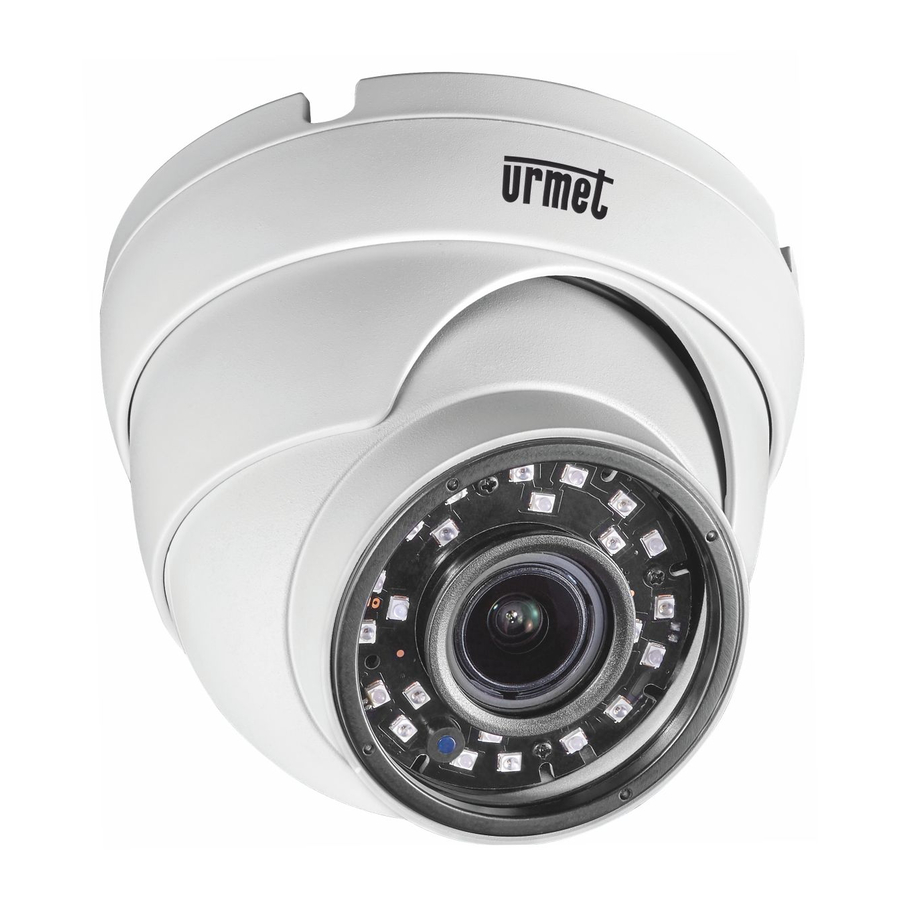

1080p ahd day & night ball camera 1/3” 2,2mm wide angle lens with ir led (77 pages)
Summary of Contents for urmet domus 1096/210
Page 1
Quick guide 1096/210 - 1096/212 - 1096/310 - 1096/312 TELECAMERE AHD DAY & NIGHT 1080P DAY&NIGHT AHD 1080P CAMERAS CAMÉRAS AHD 1080P DAY & NIGHT 1080P AHD TAG & NACHT KAMERAS www.urmet.com IF YOU LOVE YOUR BUILDING...
Page 2
1096/210 TELECAMERA COMPATTA AHD 1080P DAY&NIGHT OTTICA FISSA 2.8MM 1096/212 TELECAMERA COMPATTA AHD 1080P DAY&NIGHT AUTOFOCUS 2.8-12MM 1096/310 TELECAMERA MINIDOME AHD 1080P DAY&NIGHT OTTICA FISSA 2.8MM 1096/312 TELECAMERA MINIDOME AHD 1080P DAY&NIGHT AUTOFOCUS 2.8-12MM DS1096-115...
Precauzioni d’uso • Assicurarsi dell’integrità dell’apparecchio dopo averlo tolto dall’imballo. • Prima di effettuare qualsiasi operazione di pulizia o di manutenzione disinserire l’apparecchio dalla rete di alimentazione elettrica. Non usare prodotti spray per la pulizia dell’apparecchio. • Controllare che la temperatura d’esercizio sia nei limiti indicati e che l’ambiente non sia particolarmente umido.
Installazione Prima d’iniziare l’installazione, assicurarsi che tutte le unità da collegare non siano alimentate. POSIZIONAMENTO E CONNESSIONI 1. Allentare le ghiere e le viti di bloccaggio 2. Orientare il dispositivo nella posizione voluta. Nel caso delle telecamere compatte, posizionare la staffa in modo tale da riprendere le immagini prescelte; è possibile regolare la telecamera secondo l’asse ORIZZONTALE, VERTICALE e TRASVERSALE.
Page 6
è composta l’apparecchiatura. QR Code Guida rapida e manuale completo dei dispositivi sono altresì disponibile per il DOWNLOAD dal sito URMET nella sezione DOCUMENTAZIONE E RISORSE al seguente indirizzo: 1096/210 1096/212 1096/310 1096/312 DS1096-115A...
Page 7
1096/210 AHD 1080P AY&NIGHT COMPACT CAMERA 2.8MM FIXED LENS 1096/212 AHD 1080P AY&NIGHT COMPACT CAMERA AUTOFOCUS 2.8-12MM 1096/310 AHD 1080P AY&NIGHT MINIDOME 2.8MM FIXED LENS 1096/312 AHD 1080P AY&NIGHT MINIDOME AUTOFOCUS 2.8-12MM...
Precautions • Make sure that the device is intact after removing it from the package. • Disconnect the device from the mains before cleaning or maintenance. Do not use spray products to clean the device. • Check that the working temperature is within the indicated range and that the environment is not particularly humid.
Installation Make sure that no units are powered before starting the installation procedure. POSITIONING AND CONNECTIONS 1. Loosen the locking ring on the bracket and the screw 2. Position the bracket on horizontal, vertical and transversal axes point the camera in the desired direction.
Page 10
QR Code Quick guide and complete user manual of the products are also available for DOWNLOAD from the URMET website under the section DOCUMENTATION AND RESOURCES at the following links: 1096/210 1096/212 1096/310 1096/312...
Page 11
1096/210 CAMÉRA COMPACTE AHD 1080P DAY & NIGHT 2.8MM 1096/212 CAMÉRA COMPACTE AHD 1080P DAY & NIGHT AUTOFOCUS 2.8-12MM 1096/310 CAMÉRA MINI-DÔME AHD 1080P DAY & NIGHT 2.8MM 1096/312 CAMÉRA MINI-DÔME AHD 1080P DAY & NIGHT AUTOFOCUS 2.8-12MM...
Précautions d’utilisation • Après avoir retiré l'emballage, s’assurer que l’appareil est intact. • Avant de brancher l’appareil au secteur d’alimentation, s’assurer que les données nominales correspondent à celles du secteur d’alimentation. • Veiller à bien tenir compte de la température de fonctionnement de l’unité avant de décider du lieu d’installation.
Installation Avant de procéder à l’installation, s’assurer qu’aucune des unités à brancher n’est alimentée. POSITIONNEMENT ET BRANCHEMENT 1. Desserrer les bagues et les vis de fixation 2. Orienter le dispositif vers la position souhaitée. En cas de caméras compactes, placer l’étrier de sorte à...
Page 14
Le guide rapide et le manuel d'utilisation complet des produits sont également disponibles en téléchargement (DOWNLOAD) à partir du site Web URMET dans la section DOCUMENTATION AND RESOURCES (le site web est en anglais) au lien suivant: 1096/210 1096/212 1096/310...
Page 15
1096/210 1080P AHD TAG & NACHT KOMPAKTKAMERA 2.8MM 1096/212 1080P AHD TAG & NACHT KOMPAKTKAMERA AUTOFOCUS 2.8-12MM 1096/310 1080P AHD TAG & NACHT DOME KAMERA 2.8MM 1096/312 1080P AHD TAG & NACHT DOME KAMERA AUTOFOCUS 2.8-12MM...
Page 16
Vorsichtsmaßnahmen • Stellen Sie nach dem Auspacken des Geräts sicher, dass es unbeschädigt ist. • Trennen Sie das Gerät vom Stromversorgungsnetz, bevor Sie es reinigen oder warten. Verwenden Sie für die Reinigung des Geräts keine Sprays. • Überprüfen Sie, ob die Betriebstemperatur sich innerhalb der angezeigten Grenzwerte befindet und die Umgebung nicht besonders feucht ist.
Installation Stellen Sie vor Beginn der Installation sicher, dass alle anzuschließenden Einheiten von der Versorgung getrennt sind. POSITIONIERUNG UND ANSCHLÜSSE 1. Lösen Sie den Sicherungsring und die Befestigungsschrauben 2. Bringen Sie das Gerät in die gewünschte Position. Positionieren Sie im Fall von Kompaktkameras die Halterung so, dass die gewählten Bilder aufgenommen werden.
Zubehörteile fachgerecht zu entsorgen, um die nachhaltige Wiederverwertung von stofflichen Ressourcen zu fördern. QR Code Die Schnellanleitung und die vollständige Bedienungsanleitung der Produkte können auch von der URMET-Website unter dem Abschnitt DOCUMENTATION AND RESOURCES unter den folgenden Links heruntergeladen werden: 1096/210 1096/212 1096/310 1096/312 DS1096-115A...
Page 20
Customer Care Italia: 011 23 39 810 Export Dept.: +39 011 24 00 250/256 URMET S.p.A. Via Bologna, 188/C | 10154 Torino (ITALY) www.urmet.com | info@urmet.com MADE IN CHINA IF YOU LOVE YOUR BUILDING...
