DS1093-568C

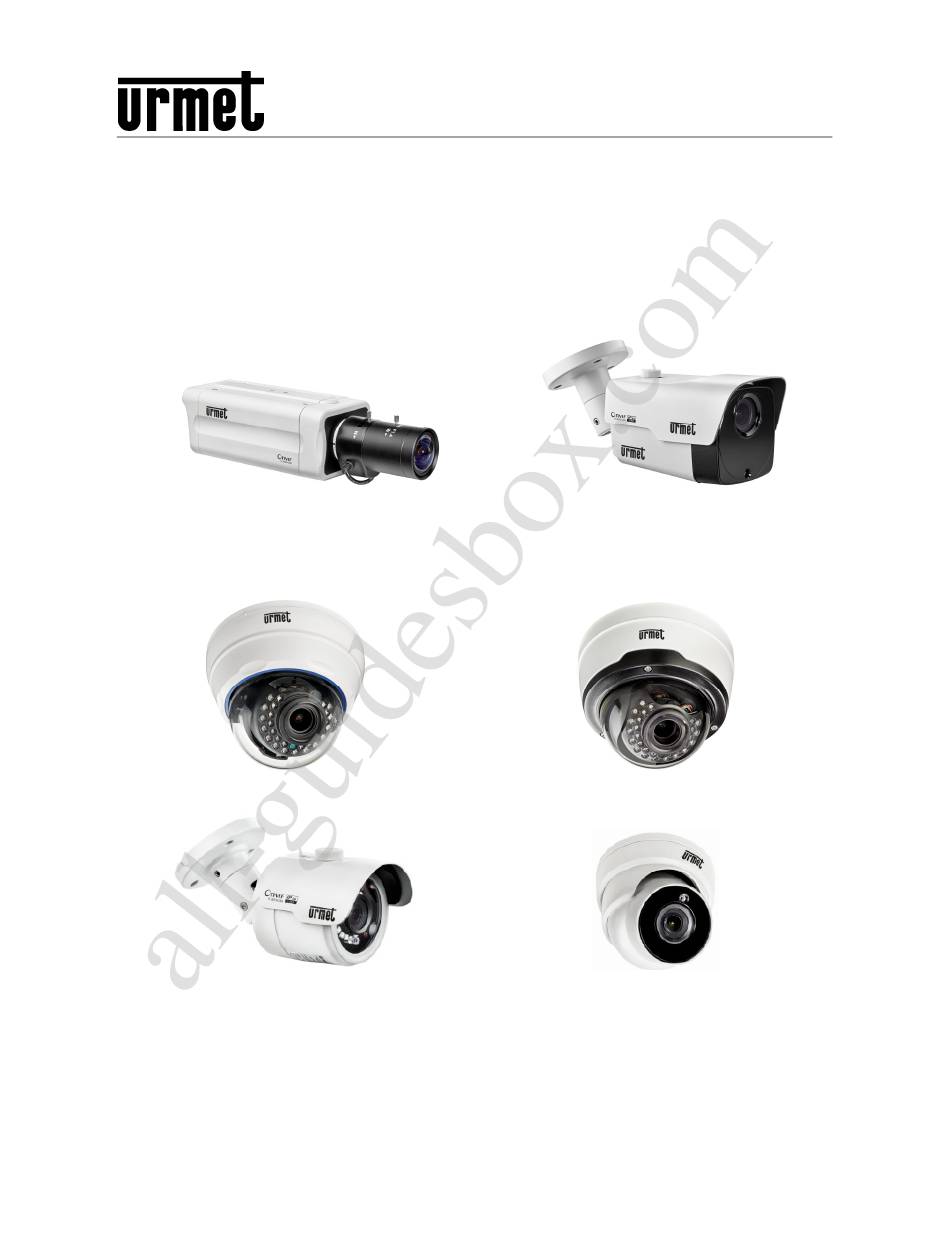

H.265 IP camera 4Mpx I Series
Box Camera IP Ref. 1093/125M4I
Dome Indoor IP Ref. 1093/181M4ZI
Bullet IP Ref. 1093/142M4I
All manuals and user guides at all-guidesbox.com
Bullet IP Camera Ref. 1093/144M4ZI
Vandal Dome IP Ref. 1093/182M4ZI
Mini Dome IP Ref. 1093/180M4I
USER MANUAL
Mod.
1093

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for urmet domus I Series

Summary of Contents for urmet domus I Series

  • Page 1 All manuals and user guides at all-guidesbox.com Mod. 1093 DS1093-568C H.265 IP camera 4Mpx I Series Box Camera IP Ref. 1093/125M4I Bullet IP Camera Ref. 1093/144M4ZI Dome Indoor IP Ref. 1093/181M4ZI Vandal Dome IP Ref. 1093/182M4ZI Bullet IP Ref. 1093/142M4I Mini Dome IP Ref.

  • Page 2: Table Of Contents

    All manuals and user guides at all-guidesbox.com ENGLISH TABLE OF CONTENTS Introduction ..............................4 Product Description ..........................5 Technical Features ........................5 Opening the Box ........................5 Warnings ...........................6 Overview ..............................9 Range of Application .........................9 Product Description ........................9 Operation Environment......................10 Device Connection ..........................11 Connectors Layout For IP Camera (Where Provided) ............
  • Page 3 All manuals and user guides at all-guidesbox.com 10.8 Intelligent ..........................38 10.8.1 Schedule ..............................38 10.8.2 Detection ..............................38 10.8.2.1 Perimeter Intrusion Detection (PID) ......................39 10.8.2.2 Line Crossing Detection (LCD) ......................... 39 10.8.2.3 Stationary Object Detection (SOD) ......................39 10.8.2.4 Pedestrian Detection （PD）...

  • Page 4: Introduction

    All manuals and user guides at all-guidesbox.com INTRODUCTION Thank you for using our network camera products.Our network camera productsare integrated and developed for network video monitoring, including Storage Network Bullet, Wireless Storage Network Bullet, IR Network Dome, IR Network Weather-Proof Cameras and High-Speed Network Ball. High-performance single SOC chips are used in media processor for audio/video acquisition, compression and transmission/transfer.

  • Page 5: Product Description

    All manuals and user guides at all-guidesbox.com PRODUCT DESCRIPTION URMET S.p.A. Ref. 1093/144M4ZI, Ref. 1093/181M4ZI and Ref. 1093/182M4ZI, Ref. 1093/125M4I, Ref. 1093/142M4I and Ref. 1093/180M4I are IP 4MegaPixel Camera which can be fully controlled via TCP/IP network connection. TECHNICAL FEATURES Hisilicon media processor with high performance and strong functions.

  • Page 6: Warnings

    All manuals and user guides at all-guidesbox.com WARNINGS Electricity Before connecting to electrical outlet, verify the electrical specifications of the device are suitable for the available power source. We suggest to connect the device to electrical outlet via a switch disconnector. In case of misfunctioning, disconnect electrical power from the general switch.
  • Page 7 All manuals and user guides at all-guidesbox.com The User is responsible to check and respect all local laws and norms for video signal recording. The manufacturer is NOT in any way liable for any usage of the product which might result not compliant to the relevant norms.
  • Page 8 All manuals and user guides at all-guidesbox.com Firmware upgrade Refer to URMET S.p.A. Customer Service Technical Assistance periodically to check availability of firmware upgrades. Network configuration Camera default setting is DHCP mode. If the network does not support dynamic addressing (DHCP), the device will automatically switch to factory IP 192.168.1.168.

  • Page 9: Overview

    All manuals and user guides at all-guidesbox.com OVERVIEW RANGE OF APPLICATION The network cameras with powerful image processing capacity may be applied at various public places such as mall, supermarket, school, factory and workshop, as well as in environments requiring HD video image such as bank and traffic control system, as shown below: Monitoring Center PRODUCT DESCRIPTION...

  • Page 10: Operation Environment

    All manuals and user guides at all-guidesbox.com OPERATION ENVIRONMENT Operating system: Windows 7/Windows 8/Windows 10 (32/64-bit), • Windows 2003/Windows XP/Windows 2000 (32-bit) CPU: Intel Core Duo II dual-core processor or higher • Memory: 1G or more Video memory: 256M or more •...

  • Page 11: Device Connection

    All manuals and user guides at all-guidesbox.com DEVICE CONNECTION IP camera can be connected in two ways: Connection to PC Connect IP camera to PC via straight-through network cable, with power input connected to a DC 12V adaptor, and set the IP addresses of the PC and IP camera in one network segment.

  • Page 12: Device Operation Instructions

    All manuals and user guides at all-guidesbox.com DEVICE OPERATION INSTRUCTIONS CHECK CONNECTION The default factory IP address for IP camera is 192.168.1.168 and the subnet mask is 255.255.255.0. Allocate to your computer an IP address in the same network segment as the IP camera, for example, 192.168.1.69, and a same subnet mask as that of the IP camera.

  • Page 13: Installation Of Controls And Login To The System

    All manuals and user guides at all-guidesbox.com Note: Device Config Tool uses the Multicast protocol to search for the device across the segments; however, since firewalls prevent multicast data packet traffic, they must be disabled so that the information on the device can be acquired. Online device Config procedure Run Device Config Tool by double-clicking on the icon.

  • Page 14: Login

    All manuals and user guides at all-guidesbox.com LOGIN PREVIEW Open IE and enter the IP address of the camera (http://192.168.1.168) to bring up the login window shown below: Login Interface for H.265 IP Cameras Figure 1 In the login window you can choose a language for the IE client. Enter your username (admin by default) and password (admin by default) and then press OK.

  • Page 15: Ptz Control

    All manuals and user guides at all-guidesbox.com : This reads the recording file from the SD card and plays it back through the browser (if SD card support is provided). : Access to the device settings menu to customise the settings of various parameters. : For snapshot, video file type and storage path settings.
  • Page 16 All manuals and user guides at all-guidesbox.com DS1093-568C...
  • Page 17 All manuals and user guides at all-guidesbox.com Eight different angles can be selected on the circular control, PTZ Speed: 0 – 10 indicates different PTZ speeds, • ZOOM zooms in and out • FOCUS increases or decreases FOCUS • Restore: resets default settings •...

  • Page 18: Local Settings

    All manuals and user guides at all-guidesbox.com LOCAL SETTINGS Select Local Settings to access the following dialogue window: here you can set the video storage location, paths for downloading remote files and storing snapshot images, the file type (RF by default, with H265, AVI, MP4 or BMP encoding), video recording duration and screen capture file type (BMP or JPG).

  • Page 19: Playback

    All manuals and user guides at all-guidesbox.com PLAYBACK Select Playback in Record File, select the corresponding date, then Search to go to the page shown below. Explanation of the button functions: Type of recording file: ALL, Normal, IO, Intelligent. Normal: 24H recording (IO) alarms: Motion and Alarms.

  • Page 20: Remote Setting

    All manuals and user guides at all-guidesbox.com 10 REMOTE SETTING 10.1 DISPLAY CONFIGURATION 10.1.1 LIVE Select Remote Settings to open the page shown below (default preview settings page): Name: name of the IP camera. Flicker control: choose 50Hz or 60Hz. Transparency: choose the display transparency of the channel name and time on the preview frame (the lower the value, the greater the transparency).

  • Page 21: Image Control

    All manuals and user guides at all-guidesbox.com 10.1.2 IMAGE CONTROL Select Image Control in Display to open the following page: IR-CUT Mode: GPIO Automatic, Colour and Black and White. IR-CUT Delay: IR-cut switching delay. Lens Flip: On/Off. Angle Flip: On/Off. Corridor Mode: On/Off.

  • Page 22: Privacy Zone

    All manuals and user guides at all-guidesbox.com 10.1.1 PRIVACY ZONE Select Privacy Zone in Display Configuration to open the following page: Enable Privacy Zone, and then use the right mouse button to trace rectangles around areas not to be displayed during recording, in screenshots and in Live viewing.

  • Page 23: Record Parameters

    All manuals and user guides at all-guidesbox.com non-ROI frame rates may be given to different ROIs, but the lowest value among them will be used as the frame rate applied to the non-ROI area on the preview frame. 10.2 RECORD PARAMETERS 10.2.1 REC PARAMETERS Select Rec Parameters in the Record menu to go to page shown below.

  • Page 24: Network

    All manuals and user guides at all-guidesbox.com 10.3 NETWORK 10.3.1 NETWORK Select Network to open the following page: Type: Network connection mode: DHCP (Automatically Acquired), Static (Manually configured) and PPPOE; DHCP (Automatically Acquired) is the default setting. Client Port: The port for the clients that connect to the IP camera. HTTP Port: Web port for the IP camera.

  • Page 25: Video Streaming

    All manuals and user guides at all-guidesbox.com 10.3.2 VIDEO STREAMING Select Video Streaming Setting in the Network Parameter menu to open the following page: The following bit streams are available by default: Main stream, Substream and Mobile stream. The resolution, frame rate, video code, encryption level, bitrate control, bitrate modality, bitrate frequency, audio and frame interval can be set for the main stream, the substream and the stream for mobile devices respectively.

  • Page 26: E-Mail Configuration

    All manuals and user guides at all-guidesbox.com 10.3.3 E-MAIL CONFIGURATION Select E-Mail in the Network menu to open the following page for setting up the e-mail service – used with the alarm function to send images to the mail server: E-Mail: Enabling/disabling of the service.

  • Page 27: Ddns Configuration

    All manuals and user guides at all-guidesbox.com 10.3.4 DDNS CONFIGURATION Select DDNS in the Network menu to open the following page: DDNS: Dynamic DNS configuration – used with the server to access an Extranet network. DDNS (Dynamic DNS) is a service used to record a domain name and floating IP address with the DDNS server so that the domain name can be routed towards the IP address even if it is modified in a dynamic IP system.

  • Page 28: Ip Filter

    All manuals and user guides at all-guidesbox.com 10.3.5 IP FILTER Select IP Filter in the Network menu to open the following page: Filtering mode: Three modes are available (Allow all IP connections, Allow only IP connections which have been • set up, Do not Allow the IP connections which have been set up).

  • Page 29: Ftp

    All manuals and user guides at all-guidesbox.com Operating instructions: rtsp://IP:Port/ch01/A A:0(Main Stream), 1(Sub Stream), 2(Stream Mobile): 10.3.7 FTP: the FTP service setting is used with the alarm function to send images or video to the FTP server. Select FTP in the Network menu to open the following page: FTP Enable: Enables or excludes the FTP function.

  • Page 30: Alarm

    All manuals and user guides at all-guidesbox.com 10.4 ALARM 10.4.1 MOTION Select Motion in the Alarm menu to open the following page: Motion Detection setting procedure: Select Enable. Click and hold the left mouse button and drag out an area for motion detection. Set the motion detection sensitivity (from 1 to 8;...

  • Page 31: Lens Blocking

    All manuals and user guides at all-guidesbox.com Post Recording: When Enable Record is checked, the recording delay can then be set (5S, 10S, 20S, 30S). 10.4.3 LENS BLOCKING Select Lens Blocking in the Alarm menu to open the following page: Select Enable to activate the Sensitivity and Send E-Mail options.

  • Page 32: Device

    All manuals and user guides at all-guidesbox.com 10.5 DEVICE This includes SD Card, Logs and Audio. The respective interfaces and functions are described below. 10.5.1 HDD (WHERE INCLUDED) Select HDD in the Device menu to access the following page: Insert the SD card in the device: the system will automatically detect the total capacity and provide information on the remaining recording time.

  • Page 33: Logs

    All manuals and user guides at all-guidesbox.com 10.5.3 LOGS Select Logs in the Device menu to open the following page: Major Type: Eight types of logs are available: System Logs, Config Logs, Alarm Logs, User Logs, Recording Logs, Storage Logs, Network Logs and All Logs, with the respective Minor Types defined for the various types of Logs. Choose the start and end date/time.

  • Page 34: System

    All manuals and user guides at all-guidesbox.com 10.6 SYSTEM System parameters include: General, User and Information. The various interfaces and functions are described below. 10.6.1 GENERAL Select General in the System menu to open the following page: The device time, system time and date/time format contained in the basic information can be manually set and saved. This device has three automatic time setting functions.

  • Page 35: User Configuration

    All manuals and user guides at all-guidesbox.com 10.6.2 USER CONFIGURATION Select User in the System menu to open the following page: In this section you can set user access rights and the login password. 10.6.3 INFO Select Info in the System menu to open the following page: Some system information is displayed in this section, including the device type, MAC address and software version.
  • Page 36 All manuals and user guides at all-guidesbox.com DS1093-568C...

  • Page 37: Advanced

    All manuals and user guides at all-guidesbox.com 10.7 ADVANCED This includes Firmware Update, Load Default and Maintain. The various interfaces and functions are described below. 10.7.1 SYSTEM UPDATE Select Firmware Update in the Advanced menu to open the following page: The update will not be available if the files are not compatible with the target device.

  • Page 38: Intelligent

    All manuals and user guides at all-guidesbox.com 10.8 INTELLIGENT This section briefly describes the intelligent video analysis functions capable of generating specific events that can also be recorded on a remote NVR. For further details on the use and settings of the intelligent video analysis functions, you can visit the URMET website http://www.urmet.com for series or product codes, the availability of relevant additional material and any firmware updates describing improvements to the intelligent video analysis algorithms.

  • Page 39: Perimeter Intrusion Detection (Pid)

    All manuals and user guides at all-guidesbox.com 10.8.2.1 Perimeter Intrusion Detection (PID) Automatic detection of entry or exit of an object in a specific area of the image, delimited by a manually defined box. 10.8.2.2 Line Crossing Detection (LCD) This feature allows automatic detection of the crossing (in both directions) of a preset line by a moving object/person. The function is used to generate alarms when the algorithm traces the movement of an object that crosses a line previously defined by the user.

  • Page 40: Mobile Software

    All manuals and user guides at all-guidesbox.com 11 MOBILE SOFTWARE Mobile Software is used for the iOS (iPhone, iPad) and Android platforms (Android Smartphone, Tablet). The following is a description of the Mobile Client Software. 11.1 Smartphone Device 11.1.1 URMET IUVS PLUS MOBILE SOFTWARE Urmet iUVS plus is a TVCC application for iOS and Android on smartphones, pads and tablets that is compatible with all URMET devices, both IPCam (Codec H265) and DVR/NVR/HVR (all codecs).

  • Page 41: Live

    All manuals and user guides at all-guidesbox.com Getting Started Download the iUVS app from the Apple Store or Google Play Store and install it. • Connect your iPhone, iPad, Android phone or Android tablet to the Internet via the 3G network or WIFI. •...
  • Page 42 All manuals and user guides at all-guidesbox.com 1. Open a device Select to open the device list shown below, then select one of devices in the list: all its channels will open automatically. Opening a channel Selecting a device brings up the list of channels; select a channel, which will be displayed in the main window. Recording a live video stream DS1093-568C...
  • Page 43 All manuals and user guides at all-guidesbox.com You can record the stream while viewing a video in live mode. Select followed by the channel label to start recording. It will continue recording on the live page once it has started; only the channels that are displayed can be recorded.
  • Page 44 All manuals and user guides at all-guidesbox.com Select the arrows to move it sideways or up and down. The other buttons allow you to zoom, force, operate the aperture, preset, etc. DS1093-568C...

  • Page 45: Playback

    All manuals and user guides at all-guidesbox.com 11.1.1.2 Playback Select “Playback” in the main menu; the play list will be displayed. A channel from the device can be played remotely. 1. Selecting a channel Select the “Remote Playback” button to open the device list, as shown below; select a channel on a device in the list. DS1093-568C...

  • Page 46: Record

    All manuals and user guides at all-guidesbox.com 2. Selecting the date When you have selected a channel, all dates with recordings will be marked with a dot. Select a date to play the recordings from that day. 11.1.1.3 Record You can record the stream while viewing a video in live mode, as described previously. DS1093-568C...

  • Page 47: Images

    All manuals and user guides at all-guidesbox.com 11.1.1.4 Images Images opens a gallery of screenshot pictures. 11.1.1.5 Remote Settings Controls on the remote device can be enabled, such as sending e-mail and enabling recording on the device. DS1093-568C...

  • Page 48: Alarm

    All manuals and user guides at all-guidesbox.com 11.1.1.6 Alarm E-mail notification of the devices can be enabled. 11.1.1.7 Device Add or delete a device DS1093-568C...
  • Page 49 All manuals and user guides at all-guidesbox.com “Device” allows you to add or delete a device and edit its properties. Select Menu and “Device” or the icon at the top right of the start screen to open the interface shown below and manually add a device To add a new device, select “+”, then Manual Adding, Import Device (via QR Code), Online Device (Device present on network): enter the name of the device, the address (IP, domain name or device ID for the DDNS Urmet account), the...

  • Page 50: Help

    All manuals and user guides at all-guidesbox.com To add a device using automatic network search: Choose the device and select “Add Device” NOTE: the Data Port (i.e. 9000) must be set up in order for the Mobile Software to work properly. If you do not configure the mobile device port, the iUVS Mobile Software will not work.

  • Page 51: P2P Function

    All manuals and user guides at all-guidesbox.com 11.2 P2P FUNCTION Once the IP camera has been configured to the network, to remotely display images on an iPhone or Android smartphone, download the URMET iUVS apps from the online stores. For viewing on an Apple iPad or Android tablet, download the iUVSpad app from the Apple Store or the iUVStab app from the Google Play Store.
  • Page 52 All manuals and user guides at all-guidesbox.com Fill in the “Password” field entering password (default: 00000000), then press “Save” and wait for about 10 seconds for the NVR LIVE video to automatically load. IMPORTANT NOTE: In addition to P2P mode, the IP camera can also be remotely viewed on a smartphone via the Urmet DDNS service.

  • Page 53: Tecnichal Specifications For Ip 4Mpx Cameras With Motorized Lens And Box Camera

    All manuals and user guides at all-guidesbox.com 12 TECNICHAL SPECIFICATIONS FOR IP 4MPX CAMERAS WITH MOTORIZED LENS AND BOX CAMERA Descriptions Metal Bullet IP Metal Vandal Items Dome Indoor Box Camera Camera Dome 1093/144M4ZI/DF 1093/181M4ZI/DF 1093/182M4ZI/DF 1093/125M4I Image Sensor 1/2.7" Progressive Scan CMOS Chipset Hi3516D+OV4689 OmniVision...
  • Page 54 All manuals and user guides at all-guidesbox.com Descriptions Metal Bullet IP Metal Vandal Items Dome Indoor Box Camera Camera Dome 1093/144M4ZI/DF 1093/181M4ZI/DF 1093/182M4ZI/DF 1093/125M4I NTP, DST, Sync with PC Time Multi-Browser Support: Internet Explorer 11.0 for Windows 7 and above/ Firefox Mozilla/ Safari 6.0 Web/Client/ Mobile Urmet UVS Client Support: Windows 7 O.S.

  • Page 55: Tecnichal Specifications For Ip 4Mpx Cameras With Fixed Lens

    All manuals and user guides at all-guidesbox.com 13 TECNICHAL SPECIFICATIONS FOR IP 4MPX CAMERAS WITH FIXED LENS Descriptions Items Metal Bullet IP Camera Metal Mini Dome IP Camera 1093/142M4I 1093/180M4I Image Sensor 1/2.7" Progressive Scan CMOS Chipset Hi3516D+OV4689 Video Format P/N adaptive control Minimum luminance 0.01Lux @(F1.2,AGC ON), 0.028Lux @(F2.0,AGC ON), 0 Lux with IR...
  • Page 56 All manuals and user guides at all-guidesbox.com Descriptions Items Metal Bullet IP Camera Metal Mini Dome IP Camera 1093/142M4I 1093/180M4I Software Mobile Support: (iOS, Android) Smart Perimeter Intrusion detection, Line crossing detection, Stationary Object Intelligent Analysis features Detection, Cross Counting, Face Detection, Pedestrian Detection TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, Protocols RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6,...

  • Page 57: Maximum Recording Time With Sd Card

    All manuals and user guides at all-guidesbox.com 14 MAXIMUM RECORDING TIME WITH SD CARD 14.1 REF. 1093/144M4ZI – 1093/181M4ZI – 1093/182M4ZI – 1093/125M4I The following resolution options can be selected on Urmet Hybrid DVR Series: “4Mpx”, “3Mpx”, “1080P”, “960P” “720P” for IP channel in H.265 Codec Type “4Mpx”, “3Mpx”, “1080P”, “960P”...
  • Page 58 All manuals and user guides at all-guidesbox.com 1 Record Channel in 960P (1280×960) and 720P(1280x720) Resolutions with H.265 Codec Variables to be set Results Results Results Results Results Bitrate Frame rate SD 8GB SD 8GB SD 16GB SD 16GB SD 32GB SD 32GB SD 64GB SD 64GB...
  • Page 59 All manuals and user guides at all-guidesbox.com 1 Record Channel in 960P (1280×960) and 720P(1280x720) Resolutions with H.264 Codec Variables to be set Results Results Results Results Results Bitrate Frame rate SD 8GB SD 8GB SD 16GB SD 16GB SD 32GB SD 32GB SD 64GB SD 64GB...

  • Page 60: Appendix

    All manuals and user guides at all-guidesbox.com 15 APPENDIX 15.1 ROUTER PORT FORWARDING If user wants to remotely visit IP Camera monitoring image through internet, he has to open web port and client port of IP Camera. Take Cisco router as an example： address 192.168.1.168, port...

  • Page 61: Faq

    All manuals and user guides at all-guidesbox.com 15.2 FAQ ◆ IE cannot load and install plug-ins. Possible cause IE security level is set too high. Solution Set IE security level to the minimum level. ◆ After updating, user cannot visit IP Camera through IE. Solution Clear IE cache.
  • Page 62 All manuals and user guides at all-guidesbox.com DS1093-568C...
  • Page 63 All manuals and user guides at all-guidesbox.com DS1093-568C...
  • Page 64 All manuals and user guides at all-guidesbox.com DS1093-568C Area tecnica URMET S.p.A. 10154 TORINO (ITALY) servizio clienti +39 011.23.39.810 VIA BOLOGNA 188/C http://www.urmet.com e-mail: info@urmet.com DS1093-568C Telef. +39 011.24.00.000 (RIC.AUT.) MADE IN CHINA +39 011.24.00.300 - 323...
