Quick guide 1096/406 - 1096/407 - 1096/506 - 1096/507 TELECAMERE AHD DAY & NIGHT 5 MPX DAY&NIGHT AHD 5 MPX CAMERAS CAMÉRAS AHD 5MPX DAY & NIGHT 5MPX AHD TAG & NACHT KAMERAS www.urmet.com IF YOU LOVE YOUR BUILDING...
Page 2

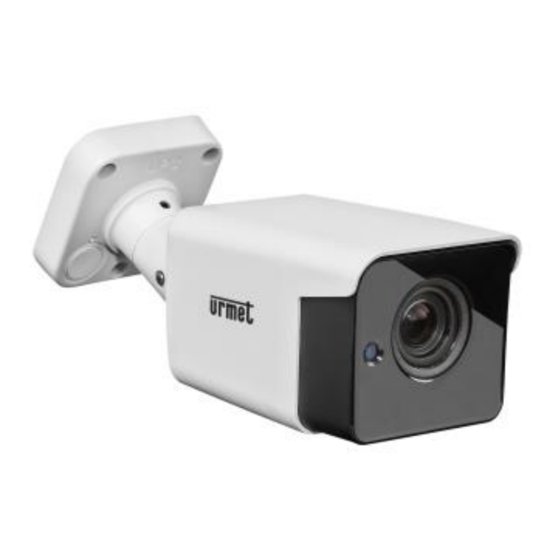

1096/406 TELECAMERA COMPATTA AHD 5 MPX DAY&NIGHT AUTOFOCUS 2.8-12MM 1096/407 TELECAMERA COMPATTA AHD 5 MPX DAY&NIGHT AUTOFOCUS 6-22MM 1096/506 TELECAMERA MINIDOME AHD 5MPX DAY&NIGHT AUTOFOCUS 2.8-12MM 1096/507 TELECAMERA VANDAL DOME AHD 5MPX DAY&NIGHT AUTOFOCUS 2.8-12MM DS1096-116C...
Precauzioni d’uso • Assicurarsi dell’integrità dell’apparecchio dopo averlo tolto dall’imballo. • Prima di effettuare qualsiasi operazione di pulizia o di manutenzione disinserire l’apparecchio dalla rete di alimentazione elettrica. Non usare prodotti spray per la pulizia dell’apparecchio. • Controllare che la temperatura d’esercizio sia nei limiti indicati e che l’ambiente non sia particolarmente umido.
Installazione Prima d’iniziare l’installazione, assicurarsi che tutte le unità da collegare non siano alimentate. POSIZIONAMENTO E CONNESSIONI 1. Allentare le ghiere e le viti di bloccaggio 2. Orientare il dispositivo nella posizione voluta. Nel caso delle telecamere compatte, posizionare la staffa in modo tale da riprendere le immagini prescelte; è possibile regolare la telecamera secondo l’asse ORIZZONTALE, VERTICALE e TRASVERSALE.
Page 5
Movimentazione dello zoom e regolazione del fuoco delle telecamere Le telecamere posseggono un’ottica Autofocus in grado di regolare autonomamente il fuoco dell’immagine. Su di esse sono inoltre possibili la movimentazione dello zoom e la regolazione manuale del fuoco tramite l’interfaccia UTC/PTZ dei dispositivi HVR del catalogo Urmet che lo prevedono.
Page 6
è composta l’apparecchiatura. QR Code Guida rapida e manuale completo dei dispositivi sono altresì disponibile per il DOWNLOAD dal sito URMET nella sezione DOCUMENTAZIONE E RISORSE al seguente indirizzo: 1096/406 1096/407 1096/506 1096/507 DS1096-116C...
Page 7
1096/406 AHD 5 MPX DAY&NIGHT COMPACT CAMERA AUTOFOCUS 2.8-12MM 1096/407 AHD 5 MPX DAY&NIGHT COMPACT CAMERA AUTOFOCUS 6-22MM 1096/506 AHD 5 MPX AY&NIGHT MINIDOME AUTOFOCUS 2.8-12MM 1096/507 AHD 5 MPX AY&NIGHT VANDAL DOME AUTOFOCUS 2.8-12MM DS1096-116B...
Precautions • Make sure that the device is intact after removing it from the package. • Disconnect the device from the mains before cleaning or maintenance. Do not use spray products to clean the device. • Check that the working temperature is within the indicated range and that the environment is not particularly humid.
Installation Make sure that no units are powered before starting the installation procedure. POSITIONING AND CONNECTIONS 1. Loosen the locking ring on the bracket and the screw 2. Position the bracket on horizontal, vertical and transversal axes point the camera in the desired direction.
Page 10
Zoom movement and focus adjustment of the cameras The cameras have an Autofocus lens that adjusts the focus of the image autonomously. It is also possible to move the zoom and manually adjust the focus through the UTC/PTZ interface of the HVR devices in the Urmet catalogue. The zoom can be moved and the focus can be adjusted using the arrow keys of the HVR remote control graphic interface.
Page 11
QR Code Quick guide and complete user manual of the products are also available for DOWNLOAD from the URMET website under the section DOCUMENTATION AND RESOURCES at the following links: 1096/406 1096/407 1096/506 1096/507...
Page 12
1096/406 CAMÉRA COMPACTE AHD 5MPX DAY & NIGHT AUTOFOCUS 2.8-12MM 1096/407 CAMÉRA COMPACTE AHD 5MPX DAY & NIGHT AUTOFOCUS 6-22MM 1096/506 CAMÉRA MINI-DÔME AHD 5MPX DAY & NIGHT AUTOFOCUS 2.8-12MM 1096/507 CAMÉRA VANDAL-DÔME AHD 5MPX DAY & NIGHT AUTOFOCUS 2.8-12MM...
Précautions d’utilisation • Après avoir retiré l'emballage, s’assurer que l’appareil est intact. • Avant de brancher l’appareil au secteur d’alimentation, s’assurer que les données nominales correspondent à celles du secteur d’alimentation. • Veiller à bien tenir compte de la température de fonctionnement de l’unité avant de décider du lieu d’installation.
Installation Avant de procéder à l’installation, s’assurer qu’aucune des unités à brancher n’est alimentée. POSITIONNEMENT ET BRANCHEMENT 1. Desserrer les bagues et les vis de fixation 2. Orienter le dispositif vers la position souhaitée. En cas de caméras compactes, placer l’étrier de sorte à...
Page 15
Déplacement du zoom et réglage du feu des caméras Les caméras sont équipées d’optique Autofocus en mesure de régler le feu de l’image de manière autonome. Elles permettent également le déplacement du zoom et le réglage manuel du feu par l’interface UTC/PTZ des dispositifs HVR du catalogue Urmet le prévoyant.
Page 16
Le guide rapide et le manuel d'utilisation complet des produits sont également disponibles en téléchargement (DOWNLOAD) à partir du site Web URMET dans la section DOCUMENTATION AND RESOURCES (le site web est en anglais) au lien suivant: 1096/406 1096/407 1096/506...
Page 17
1096/406 5MPX AHD TAG & NACHT KOMPAKTKAMERA AUTOFOCUS 2.8-12MM 1096/407 5MPX AHD TAG & NACHT KOMPAKTKAMERA AUTOFOCUS 6-22MM 1096/506 5MPX AHD TAG & NACHT DOME KAMERA AUTOFOCUS 2.8-12MM 1096/507 VANDALISMUSGESCHÜTZTE 5MPX AHD TAG & NACHT DOME KAMERA AUTOFOCUS 2.8-12MM DS1096-116C...
Page 18
Vorsichtsmaßnahmen • Stellen Sie nach dem Auspacken des Geräts sicher, dass es unbeschädigt ist. • Trennen Sie das Gerät vom Stromversorgungsnetz, bevor Sie es reinigen oder warten. Verwenden Sie für die Reinigung des Geräts keine Sprays. • Überprüfen Sie, ob die Betriebstemperatur sich innerhalb der angezeigten Grenzwerte befindet und die Umgebung nicht besonders feucht ist.
Installation Stellen Sie vor Beginn der Installation sicher, dass alle anzuschließenden Einheiten von der Versorgung getrennt sind. POSITIONIERUNG UND ANSCHLÜSSE 1. Lösen Sie den Sicherungsring und die Befestigungsschrauben 2. Bringen Sie das Gerät in die gewünschte Position. Positionieren Sie im Fall von Kompaktkameras die Halterung so, dass die gewählten Bilder aufgenommen werden.
Page 20
Bewegung des Zooms und Scharfeinstellung der Kameras Die Kameras verfügen über eine Autofocus-Optik, die in der Lage ist, die Bildschärfe eigenständig einzustellen. Auf diesen sind außerdem die Bewegung des Zooms und die Scharfeinstellung von Hand über die UTC/PTZ-Schnittstelle der HVR-Geräte aus dem Katalog von Urmet, die dies vorsehen, möglich.
Page 21
Zubehörteile fachgerecht zu entsorgen, um die nachhaltige Wiederverwertung von stofflichen Ressourcen zu fördern. QR Code Die Schnellanleitung und die vollständige Bedienungsanleitung der Produkte können auch von der URMET-Website unter dem Abschnitt DOCUMENTATION AND RESOURCES unter den folgenden Links heruntergeladen werden: 1096/406 1096/407 1096/506 1096/507 DS1096-116C...
Page 24
Customer Care Italia: 011 23 39 810 Export Dept.: +39 011 24 00 250/256 URMET S.p.A. Via Bologna, 188/C | 10154 Torino (ITALY) www.urmet.com | info@urmet.com MADE IN CHINA IF YOU LOVE YOUR BUILDING DS1096-116C...
