Mocka Eclipse Entertainment Unit Assembly Instructions Manual page 7

Eclipse Entertainment Unit
Assembly Instructions
11 x2
Tighten the
screws 90%..
N
N
M

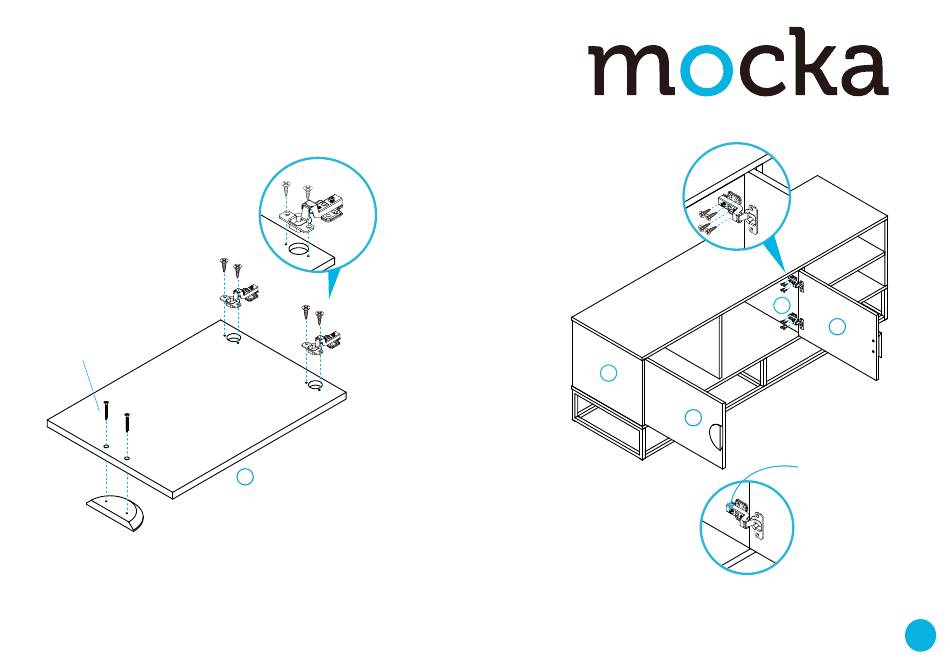

Attach 2x hinges (G) to panel [15] using 4x screws (F),
and attach 1x handle (M) to panel [15] and secure with
2x screw (N). Tighten with a screwdriver.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
F
F
G
F
F
G
F
F
G
3 15
12
3
3 15
Attach hinges on panels [15] to panels [3] and [5] and secure with
16x screws (F). Tighten with a screwdriver. Ensure the doors open
and close easily.
F
F
5
3 15
F
NOTE: If the doors are
uneven or there is a gap
in the middle, loosen or
tighten the screw on the
door hinge until they are
sitting flush.
7
