Eclipse Entertainment Unit
Assembly Instructions
9
I
14
O
L
L
14
L
13

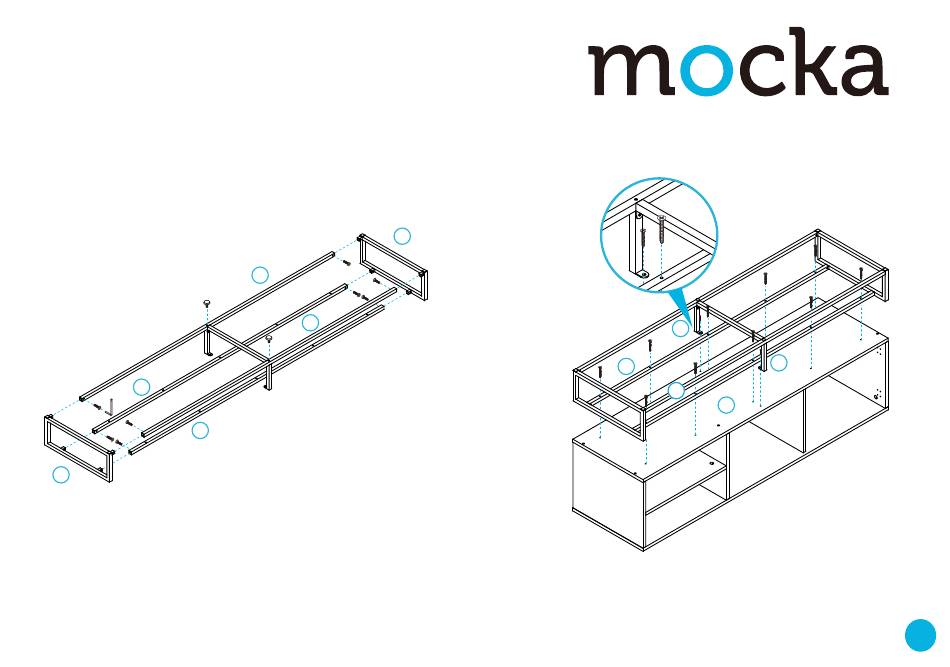

Attach panels [13] to panels [10] and [14] and secure with 8x bolts (L). Tighten
with an Allen Key (O). Attach 2x height adjuster (I) to panels [10] as shown.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
13
L
10
L
L
10
I
10
H
E
E
H
11
E
E
14
E
3 14
E
Attach panels [14] to panel [2] and secure with 10x screws (E).
Attach panels [11] to panel [2] and secure with 2x screws (H).
Tighten with a screwdriver.
E
E
E
E
E
11
2
6
