Mocka Eclipse Entertainment Unit Assembly Instructions Manual page 4

Eclipse Entertainment Unit
Assembly Instructions
5
8
5
4

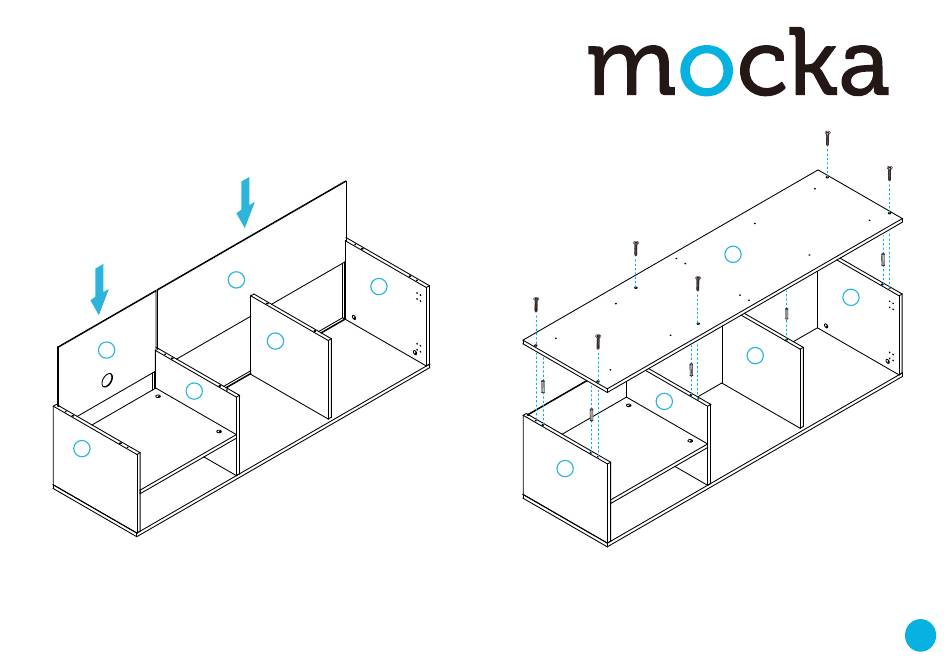

Slide panels [8] and [9] down along the grooves between
panels [3], [4] and [5] to form the back of the unit as shown.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
9
3
6
6
B
B
B
A
5
A
4
Attach panel [2] to panels [3], [4], [5] and [6] with 6x big dowels (A) and
2x dowels (P) and secure with 6x screws (B). Tighten with a screwdriver.
B
2
B
3
P
6
A
B
A
4
