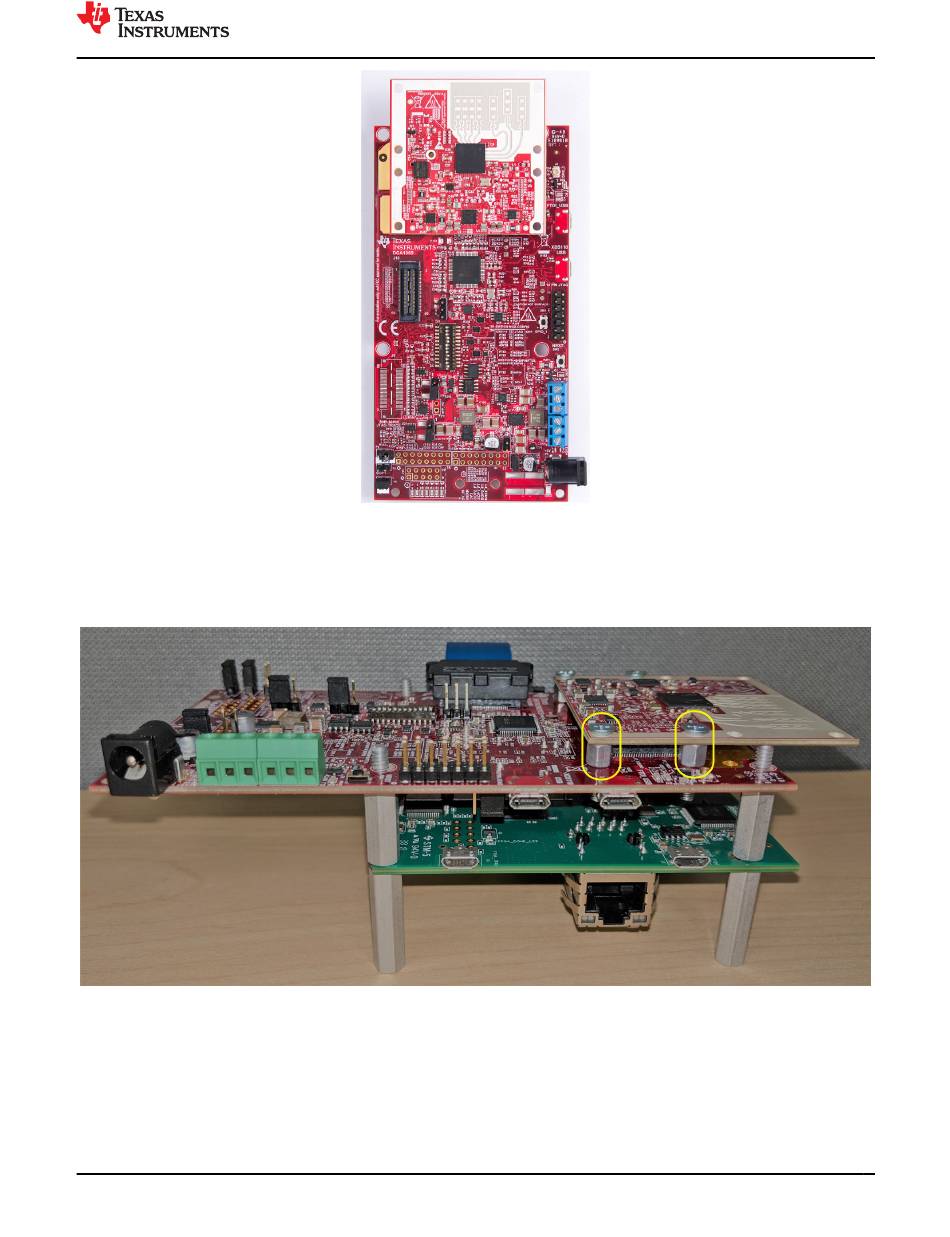

Figure 2-10. Integration of MMWAVEICBOOST and Starter Kit

2.4.4
Figure 2-11 shows the mechanical mounting of PCB. Spacers and screws can be used as heat sinking elements
to spread the heat from the starter kit to carrier board, as shown in
SWRU546D – OCTOBER 2018 – REVISED NOVEMBER 2020
Submit Document Feedback

Figure 2-11. Mechanical Mounting of the PCB

Copyright © 2020 Texas Instruments Incorporated
Figure 2-11.
mmWaveICBoost and Antenna Module
MMWAVEICBOOST
17
