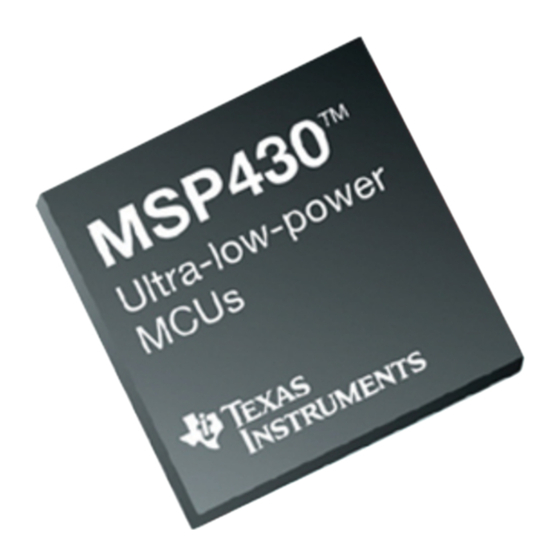

Texas Instruments MSP430 User Manual

Programming with the jtag interface
Hide thumbs Also See for MSP430:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
MSP430™ Programming With the JTAG
Interface
User's Guide
Literature Number: SLAU320Z
July 2010 – Revised July 2017

Advertisement

Table of Contents
loading

Related Manuals for Texas Instruments MSP430

Summary of Contents for Texas Instruments MSP430

  • Page 1 MSP430™ Programming With the JTAG Interface User's Guide Literature Number: SLAU320Z July 2010 – Revised July 2017...

  • Page 2: Table Of Contents

    Contents ............................Preface .................. Programming Using the JTAG Interface ........................Introduction ........1.1.1 MSP430 JTAG Restrictions (Noncompliance With IEEE Std 1149.1) ..................1.1.2 TAP Controller State Machine ....................Interface and Instructions .................... 1.2.1 JTAG Interface Signals ....................1.2.2 JTAG Access Macros ...............
  • Page 3 ................... Errata and Revision Information ....................... Known Issues ............... Revisions and Errata from Previous Documents .......................... Revision History SLAU320Z – July 2010 – Revised July 2017 Contents Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...
  • Page 4 ................1-10. Flash Memory Parameters (f = 450 kHz) ................. 1-11. Overview Of Memory Protection Mechanisms ................ 1-12. MSP430 Device JTAG Interface (Shared Pins) ................1-13. MSP430 Device Dedicated JTAG Interface ........1-14. MSP430F1xx, MSP430F2xx, MSP430F4xx, MSP430Gxx JTAG Features ..............

  • Page 5: Preface

    MSP430 through the JTAG interface. Section 1.3, Memory Programming Control Sequences, describes how to use the provided macros and function prototypes in a software-flow format to control a target MSP430 device and program or erase the memory. Section 1.4, JTAG Access Protection, describes the mechanism that can disable memory access through JTAG to the memory of the target device, which can eliminate undesired memory access for security purposes.

  • Page 6: Programming Using The Jtag Interface

    Section 1.3.1.1. • The MSP430 device must be the first device in the JTAG chain (because of clocking on TDI and JTAG fuse check sequence). • Only the BYPASS instruction is supported. There is no support for SAMPLE, PRELOAD, or EXTEST instructions.

  • Page 7: Interface And Instructions

    This section also describes the software macro routines that are used to program a MSP430 target and the JTAG instructions that are used to communicate with and control the target through the JTAG interface.

  • Page 8: Jtag Access Macros

    Interface and Instructions www.ti.com The TEST input exists only on MSP430 devices with shared JTAG function, usually assigned to port 1. For normal operation (non-JTAG mode), this pin is internally pulled down to ground, which enables the shared pins as standard port I/O. To enable these pins for JTAG communication, refer to Section 1.3.1.1.

  • Page 9: Timing Example For Ir_Shift (0X83) Instruction

    16 bits wide). The data word is shifted, most significant bit (MSB) first, into the TDI input of the target MSP430 device. Each bit is captured from TDI on a rising edge of TCK. At the same time, TDO shifts out the last captured and stored value in the addressed data register.

  • Page 10: Data Register I/O: Dr_Shift16 (0X158B) (Tdo Output Is 0X55Aa)

    20-bit address word into the 20-bit wide JTAG MAB register. The address word is shifted, MSB first, into the TDI input of the target MSP430 device. Each bit is captured from TDI on a rising edge of TCK. At the same time, TDO shifts out the last captured and stored value in the JTAG MAB register. A new bit is present at TDO with a falling edge of TCK.

  • Page 11: Spy-Bi-Wire (Sbw) Timing And Control

    1.2.2.1.4 MsDelay (Time) This macro causes the programming interface software to wait for a specified amount of time in milliseconds (ms). While this macro is executing, all signals to and from the target MSP430 must hold their previous values. 1.2.2.1.5 SetTCLK This macro sets the TCLK input clock (which is provided on the TDI signal input) high.

  • Page 12: Spy-Bi-Wire Timing Diagram

    Set SBWTCK low • NOP 5 cycles (delay at 18 MHz) • Set SBWTDIO high • Set SBWTCK high Programming Using the JTAG Interface SLAU320Z – July 2010 – Revised July 2017 Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...
  • Page 13 When using the provided source code example, make sure that interrupts are disabled during the SBWTCK low phase to ensure accurate timings. SLAU320Z – July 2010 – Revised July 2017 Programming Using the JTAG Interface Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...

  • Page 14: Detailed Sbw Timing Diagram

    • NOP 5 cycles (delay at 18 MHz) • Set SBWTCK high • Set SBWTDIO to driven again Programming Using the JTAG Interface SLAU320Z – July 2010 – Revised July 2017 Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...

  • Page 15: Synchronization Of Tdi And Tclk During Run-Test/Idle

    Figure 1-10 shows handling of TCLK in SBW mode. See the reference functions SetTCLK_sbw and ClrTCLK_sbw in the MSP430 Replicator project (slau320.zip) for software implementation. The provided code example for the MSP430Xv2 architecture uses preprocessor definitions to enable a better layered software architecture.

  • Page 16: Jtag Communication Instructions

    1.2.3.5.2 TCLK Strobes For MSP430 devices from the F1xx, F2xx, G2xx, and F4xx families, a custom number of TCLK clocks can be provided within a single TDI slot as can be seen in the example projects Replicator430 and Replicator430X. See reference function: TCLKstrobes(). This implementation is not applicable for any newer devices from the MSP430F5xx or MSP430F6xx families.
  • Page 17 JTAG MDB register. As the new value is written into the MDB register, the prior value in the MSP430 MDB is captured and shifted out on TDO. The MSP430 MAB is set by the value in the JTAG MAB register during execution of the IR_DATA_TO_ADDR instruction.
  • Page 18 16-bit JTAG data access. The complete MSP430 MDB is set to the value of the JTAG MDB register. At the same time, the last value of the MSP430 MDB is captured and shifted out on TDO. In this situation, the MAB is still controlled by the CPU. The program counter (PC) of the target CPU sets the MAB value.

  • Page 19: Jtag Control Signal Register For 1Xx, 2Xx, 4Xx Families

    Interface and Instructions www.ti.com 1.2.4.3 Controlling the CPU The following instructions enable control of the MSP430 CPU through a 16-bit register accessed through JTAG. This data register is called the JTAG control signal register. Table 1-6 describes the bit functions making up the JTAG control signal register used for memory access.

  • Page 20: Jtag Control Signal Register For 5Xx And 6Xx Families

    10 = CPU instruction sequence 2 11 = CPU generated "no-operation" cycle; data on buses is not used Programming Using the JTAG Interface SLAU320Z – July 2010 – Revised July 2017 Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...
  • Page 21 This instruction completely releases the CPU from JTAG control. Once executed, the JTAG control signal register and other JTAG data registers no longer have any effect on the target MSP430 CPU. This instruction is normally used to release the CPU from JTAG control.

  • Page 22: Memory Programming Control Sequences

    MSP430 devices with TEST pin and 4-wire JTAG access only (no SBW) To use the JTAG features of MSP430 devices with shared JTAG and a TEST pin, it is necessary to enable the shared JTAG pins for JTAG communication mode. Devices with dedicated JTAG inputs/outputs and no TEST pin do not require this step.

  • Page 23: Jtag Access Entry Sequences (For Devices That Support Sbw)

    Figure 1-12. JTAG Access Entry Sequences (for Devices That Support SBW) NOTE: On some Spy-Bi-Wire capable MSP430 devices, TEST/SBWTCK is very sensitive to rising signal edges that can cause the test logic to enter a state where an entry sequence (either 2- wire or 4-wire) is not recognized correctly and JTAG access stays disabled.

  • Page 24: Fuse Check And Tap Controller Reset

    TDI is logical low. In that case, no current flows through the security fuse, but the internal logic remembers that a fuse check was performed. Thus, the fuse is mistakenly recognized as programmed (that is, blown). To avoid the issue, newer MSP430 JTAG implementations (devices with CPUXv2 - see Table 1-15) also reset the internal fuse-check logic on performing a reset of the TAP controller.

  • Page 25: General Device (Cpu) Control Functions

    Memory Programming Control Sequences www.ti.com 1.3.2 General Device (CPU) Control Functions The functions described in this section are used for general control of the target MSP430 CPU, as well as high-level JTAG access and bus control. 1.3.2.1 Function Reference for 1xx, 2xx, 4xx Families 1.3.2.1.1 Taking the CPU Under JTAG Control...
  • Page 26 1.3.2.1.3 Setting the Target CPU Program Counter (PC) To use some of the features of the JTAG interface provided by the MSP430, setting of the CPU PC of the target device is required. The following flow is used to accomplish this. Implementations for both the MSP430 and MSP430X architectures are shown.
  • Page 27 The CPU is now in the instruction-fetch state and ready to receive a new JTAG instruction. If the PC has been changed while the memory was being accessed, the PC must be loaded with the correct address. SLAU320Z – July 2010 – Revised July 2017 Programming Using the JTAG Interface Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...
  • Page 28 0xFFFEh (the reset vector). • Release MSP430 from JTAG control. This is done by performing a reset using the JTAG control signal register. The CPU must then be released from JTAG control by using the IR_CNTRL_SIG_RELEASE instruction.
  • Page 29 POR signal in the JTAG Control Signal Register. Also, care must be taken that the CPU is in the Full-Emulation-State (equivalent to the Instruction-Fetch state for MSP430/MSP430X architectures) by setting the CPUSUSP signal and providing a number of TCLK until the CPU pre-fetch pipes are cleared.
  • Page 30 TDI/TDO and TMS pins in the replicator implementation, TEST and REST are used for SBW communication to disable the ioLock. Programming Using the JTAG Interface SLAU320Z – July 2010 – Revised July 2017 Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...

  • Page 31: Jtag Entry Sequence For 430Xv2 Devices

    Mode & Protocol is debug SBW? Set error End sequence Figure 1-14. JTAG Entry Sequence for 430Xv2 Devices SLAU320Z – July 2010 – Revised July 2017 Programming Using the JTAG Interface Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...
  • Page 32 DR_Shift16(0x0C01) : release CPUSUSP signal and apply POR signal DR_Shift16(0x0401) : release POR signal again ClrTCLK SetTCLK ClrTCLK SetTCLK ClrTCLK Programming Using the JTAG Interface SLAU320Z – July 2010 – Revised July 2017 Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...
  • Page 33 Disable Watchdog Timer on target device now by setting the HOLD signal in the WDT_CNTRL register (i.e. by using WriteMem_430Xv2 – note different WDT addresses for individual FRAM device groups) SLAU320Z – July 2010 – Revised July 2017 Programming Using the JTAG Interface Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...

  • Page 34: Accessing Non-Flash Memory Locations With Jtag

    To read from any memory address location (peripherals, RAM, or flash/FRAM), the R/W signal must be set to READ using the JTAG control signal register (bit 0 set to 1). The MSP430 MAB must be set to the specific address to be read using the IR_ADDR_16BIT instruction while TCLK is 0. To capture the corresponding value of the MSP430 MDB, the IR_DATA_TO_ADDR instruction must be executed.
  • Page 35 Memory Programming Control Sequences www.ti.com • MSP430 architecture, Reference function: ReadMem Set CPU to stopped state (HaltCPU) ClrTCLK IR_SHIFT("IR_CNTRL_SIG_16BIT") DR_SHIFT16(0x2409) : Read Memory IR_SHIFT("IR_ADDR_16BIT") DR_SHIFT16("Address") : Set desired address IR_SHIFT("IR_DATA_TO_ADDR") SetTCLK ClrTCLK DR_SHIFT16(0x0000) : Memory value shifted out on TDO Read again? ReleaseCPU should now be executed, returning the CPU to normal operation.
  • Page 36 MAB and MDB. After completion of the write operation, it is recommended to set the R/W signal back to READ. Following is the flow for a peripheral or RAM memory address write. Implementations for both the MSP430 and MSP430X architectures are shown.
  • Page 37 : Send 16-bit Data ClrTCLK IR_SHIFT("IR_CNTRL_SIG_16BIT") DR_SHIFT16(0x0501) SetTCLK ClrTCLK SetTCLK Write again? CPU is now again in Full-Emulation-State. SLAU320Z – July 2010 – Revised July 2017 Programming Using the JTAG Interface Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...
  • Page 38 Before this instruction can be loaded into the JTAG IR register, the program counter (PC) of the target MSP430 CPU must be set to the desired memory starting address. After the IR_DATA_QUICK instruction is shifted into the IR register, the PC is incremented by two with each falling edge of TCLK, automatically pointing the PC to the next memory location.

  • Page 39: Programming The Flash Memory (Using The Onboard Flash Controller)

    Function Reference for 1xx, 2xx, 4xx Families Reference function: WriteFLASH This section describes one method available to program the flash memory module in an MSP430 device. It uses the same procedure that user-defined application software would use, which would be programmed into a production-equipment MSP430 device.

  • Page 40: Erase And Program Minimum Tclk Clock Cycles

    Table 1-9 shows the required minimum number of TCLK cycles, depending on the action performed on the flash (for FCTL2 register bits 0 to 7 = 0x40 as defined in the MSP430 user's guide). Table 1-9. Erase and Program Minimum TCLK Clock...
  • Page 41 Because the 5xx and 6xx devices have a dedicated timing generator available on chip, flash access is significantly easier compared to the other MSP430 families. There is no need for the user to ensure a certain erase or program frequency on the TCLK signal. All timings that are required for memory erase and write access are generated automatically.
  • Page 42 5xx and 6xx devices through the JTAG interface. The term Flash-Access-Code stands for an appropriate executable MSP430 code that can be used to perform the flash access operation. The following sections use the term Flash- Write-Code for code that is used to program the flash memory and Flash-Erase-Code for code that is used to erase the flash memory.

  • Page 43: Accessing Flash Memory

    Figure 1-16 shows a generic map of the binary image of the Flash-Access-Code(s) provided with this document. SLAU320Z – July 2010 – Revised July 2017 Programming Using the JTAG Interface Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...

  • Page 44: Flash Access Code Binary Image Map

    MAX (see the device-specific data sheet)) Word Write Another Flash Address? Get target device in Full-Emulation-State Programming Using the JTAG Interface SLAU320Z – July 2010 – Revised July 2017 Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...

  • Page 45: Erasing The Flash Memory (Using The Onboard Flash Controller)

    Replace with DR_SHIFT20("Address") when programming an MSP430X architecture device. Substitute 0xA540 for 2xx devices for Info-Segment A programming. SLAU320Z – July 2010 – Revised July 2017 Programming Using the JTAG Interface Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...

  • Page 46: Ftg = 450 Khz)

    (mass erase time). Two different specification combinations of these Mass Erase parameters are currently implemented in dedicated MSP430 devices. Table 1-10 shows an overview of the parameters (assuming a maximum TCLK frequency of 450 KHz).
  • Page 47 For implementation 1, to assure the recommended 200-ms erase time to safely erase the flash memory space, 5300 TCLK cycles are transmitted to the target MSP430 device and repeated 19 times. With implementation 2, the following sequence needs to be performed only once.
  • Page 48 1.3.4.2, the JTAG mailbox system is used to retrieve the current execution state of the Flash-Erase-Code in the target device. Programming Using the JTAG Interface SLAU320Z – July 2010 – Revised July 2017 Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...

  • Page 49: Reading From Flash Memory

    1.3.7 Verifying the Target Memory Reference function: VerifyMem Verification is performed using a pseudo signature analysis (PSA) algorithm, which is built into the MSP430 JTAG logic and executes in approximately 23 ms/4KB. • Both MSP430 and MSP430X architecture, Reference functions: VerifyPSA, VerifyPSA_430X...
  • Page 50 Call ReleaseCPU() here if device has Enhanced Verify feature (see Table 1-14) Compare shifted out PSA value with PSA_CRC Programming Using the JTAG Interface SLAU320Z – July 2010 – Revised July 2017 Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...
  • Page 51 Call ReleaseCPU() here if device has Enhanced Verify feature (see Table 1-14) Compare shifted out PSA value with PSA_CRC SLAU320Z – July 2010 – Revised July 2017 Programming Using the JTAG Interface Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...

  • Page 52: Fram Memory Technology

    FRAM, refer to the function EraseFRAM_430Xv2. An FRAM mass erase is done using the flow described in EraseFRAMViaBootCode_430Xv2. Programming Using the JTAG Interface SLAU320Z – July 2010 – Revised July 2017 Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...

  • Page 53: Jtag Access Protection

    CCS) will Encapsulation. devices write, or execute access erase the entire memory Unlocking: Section 1.4.6 and reset IPE settings SLAU320Z – July 2010 – Revised July 2017 Programming Using the JTAG Interface Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...

  • Page 54: Burning The Jtag Fuse - Function Reference For 1Xx, 2Xx, 4Xx Families

    1.4.1 Burning the JTAG Fuse - Function Reference for 1xx, 2xx, 4xx Families Two similar methods are described and implemented, depending on the target MSP430 device family. All devices having a TEST pin use this input to apply the programming voltage, V .
  • Page 55 Switch TDI pin back to TDI function and reset the JTAG state machine (ResetTAP) 1.4.1.1.2 Fuse-Programming Voltage On TEST Pin The same method is used to program the fuse for the TEST pin MSP430 devices, with the exception that the fuse-blow voltage, V , is now applied to the TEST input pin.

  • Page 56: Programming The Jtag Lock Key - Function Reference For 5Xx, 6Xx, And Frxx Families

    0x17FC to 0x17FF. Any value other than 0 or 0xFFFFFFFF programmed to these addresses irreversibly locks the JTAG interface. All of the 5xx and 6xx MSP430 devices come with a preprogrammed BSL (TI-BSL) code that, by default, protects itself from unintended erase and write access. This is done by...

  • Page 57: Testing For A Successfully Protected Device

    5xx or 6xx devices) and a RESET (by the JTAG ExecutePOR command or the RST/NMI pin in hardware) has been issued, the only JTAG function that is available on the target MSP430 is BYPASS. When the target is in BYPASS, data sent from host to target is delayed by one TCK pulse and then output on TDO, where it can be received by other devices downstream of the target MSP430.

  • Page 58: Unlocking A Password-Protected Device

    Wait until BootCode is executed and device is in LPM4 Initialize JTAG access (Rest Tap) Get back JTAG control calling SyncJtag_AssertPor() function Programming Using the JTAG Interface SLAU320Z – July 2010 – Revised July 2017 Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...

  • Page 59: Memory Protection Unit Handling

    SYSCFG0 register is password protected. See the device family user’s guide for more details. Reference function: DisableMPU_430Xv2. SLAU320Z – July 2010 – Revised July 2017 Programming Using the JTAG Interface Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...

  • Page 60: Jtag Function Prototypes

    None static void HaltCPU (void) Sends the target CPU into a controlled, stopped state Arguments: None Result: None Programming Using the JTAG Interface SLAU320Z – July 2010 – Revised July 2017 Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...

  • Page 61: High-Level Jtag Routines

    (STATUS_OK if comparison was successful, STATUS_ERROR otherwise) 1.5.2 High-Level JTAG Routines word GetDevice (void) Takes the target MSP430 device under JTAG control. Sets the target device's CPU watchdog to a hold state; sets the global DEVICE variable. Arguments: None...
  • Page 62 Length (number of words to be checked) Result: word (STATUS_OK if erase check was successful, STATUS_ERROR otherwise) Programming Using the JTAG Interface SLAU320Z – July 2010 – Revised July 2017 Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...
  • Page 63 Length (number of words to be programmed) word *DataArray (pointer to array containing the data) Result: None short DownloadProgram(struct_Program* program) This function downloads a converted MSP430.txt file Arguments: struct_Program* program Structure containing executable code and memory data Result: word STATUS_OK if verification was successful, STATUS_ERROR otherwise short DownloadMsp430Code() This function configures all needed information to download a program into target memory.

  • Page 64: Jtag Features Across Device Families

    With the enhanced PSA hardware implementation, the CPU is completely halted during checksum calculation, and a POR is not required after calculation. Programming Using the JTAG Interface SLAU320Z – July 2010 – Revised July 2017 Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...
  • Page 65 TRUE FALSE READ TRUE FALSE TRUE WRITE READ/ TCH5E 0x25 0x5C TRUE FALSE READ TRUE FALSE TRUE WRITE SLAU320Z – July 2010 – Revised July 2017 Programming Using the JTAG Interface Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...

  • Page 66: Msp430F5Xx, Msp430F6Xx, Cc430 Jtag Features

    IR_DATA_QUICK instruction (see Section 1.3.3.3). Certain devices might support this instruction for either READ or WRITE operations only. Programming Using the JTAG Interface SLAU320Z – July 2010 – Revised July 2017 Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...
  • Page 67 0x80 READ/WRITE READ MSP430F5502 0x33 0x80 READ/WRITE READ MSP430F5503 0x34 0x80 READ/WRITE READ MSP430F5504 0x35 0x80 READ/WRITE READ SLAU320Z – July 2010 – Revised July 2017 Programming Using the JTAG Interface Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...
  • Page 68 0x80 READ/WRITE READ MSP430F6638 0x1C 0x80 READ/WRITE READ MSP430F6658 0x2C 0x81 READ/WRITE READ MSP430F6659 0x2B 0x81 READ/WRITE READ Programming Using the JTAG Interface SLAU320Z – July 2010 – Revised July 2017 Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...
  • Page 69 0x81 READ/WRITE READ MSP430F67481A 0x28 0x82 READ/WRITE READ MSP430F6748A 0x19 0x82 READ/WRITE READ MSP430F6749 0x8C 0x81 READ/WRITE READ SLAU320Z – July 2010 – Revised July 2017 Programming Using the JTAG Interface Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...
  • Page 70 0x81 READ/WRITE READ MSP430F67791 0xA5 0x81 READ/WRITE READ MSP430F67791A 0x33 0x82 READ/WRITE READ MSP430F6779A 0x24 0x82 READ/WRITE READ Programming Using the JTAG Interface SLAU320Z – July 2010 – Revised July 2017 Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...
  • Page 71 0x82 READ/WRITE READ MSP430FG6625 0x35 0x82 READ/WRITE READ MSP430FG6626 0x34 0x82 READ/WRITE READ MSP430SL5438A 0xEE 0x81 READ/WRITE READ SLAU320Z – July 2010 – Revised July 2017 Programming Using the JTAG Interface Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...

  • Page 72: Msp430Frxx Jtag Features

    IR_DATA_QUICK instruction (see Section 1.3.3.3). Certain devices might support this instruction for either READ or WRITE operations only. Programming Using the JTAG Interface SLAU320Z – July 2010 – Revised July 2017 Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...
  • Page 73 MSP430FR6887 0xBE 0x81 READ/WRITE READ/WRITE 0x99 MSP430FR6888 0xBF 0x81 READ/WRITE READ/WRITE 0x99 MSP430FR6889 0xC0 0x81 READ/WRITE READ/WRITE 0x99 SLAU320Z – July 2010 – Revised July 2017 Programming Using the JTAG Interface Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...

  • Page 74: Msp430Ixx Jtag Features

    IR_DATA_QUICK instruction (see Section 1.3.3.3). Certain devices might support this instruction for either READ or WRITE operations only. Programming Using the JTAG Interface SLAU320Z – July 2010 – Revised July 2017 Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...

  • Page 75: References

    MSP430FR58xx, MSP430FR59xx, and MSP430FR6xx Family User's Guide CC430 Family User's Guide IEEE Standard Test Access Port and Boundary-Scan Architecture, IEEE Std 1149.1 SLAU320Z – July 2010 – Revised July 2017 Programming Using the JTAG Interface Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...

  • Page 76: Jtag Programming Hardware And Software Implementation

    Each example demonstrates the software functions described in the previous sections using an MSP430F5437 as the host controller that programs the given target MSP430 device of choice. The complete C source code and project files are provided in the examples zip file. A schematic for the system as implemented in this discussion is also provided.

  • Page 77: Software Operation

    6KB, so approximately 250KB remain for the target device program. The Replicator host can be loaded with the target source code by the flash emulation tool (FET) or by the MSP430 serial programming adapter. (See the MSP430 website at www.ti.com...

  • Page 78: Programmer Firmware

    Target_Code.s43 (IAR) resp. Target_Code.asm (CCS) from the project. The Target_Code.h file is generated by the srec_cat.exe file directly or by the srec.bat file. JTAG functions All MSP430-specific functions are defined here. These files should not be modified under any circumstance. JTAGfunc.c JTAGfunc430X.c Contain the MSP430-specific functions needed for flash programming JTAGfunc430Xv2.c...

  • Page 79: Target Code

    For example, "srec_cat.exe Target_Code.txt -ti_txt --fill 0xFF --within Target_Code.txt -ti_txt - -range-padding 2 -Output Target_Code.h -c_array -output_word -c_compressed". SLAU320Z – July 2010 – Revised July 2017 JTAG Programming Hardware and Software Implementation Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...

  • Page 80: Programmer Operation

    The required Spy-Bi-Wire or 4-wire JTAG and GND must be connected. (On devices requiring the TEST pin, the TEST signal also must be provided from the programmer to the target MSP430 device.) Host controller in the REP430F is supplied from the V = 3 V, JTAG Programming Hardware and Software Implementation SLAU320Z –...
  • Page 81 I/O levels exactly as required by the target device.) To enable programming of all MSP430 flash-based devices including a JTAG access fuse, voltage translators are used and MOSFET switches are controlled by the host MSP430. MOSFET Q2 controls V on devices with a TEST pin; Q1 connects V to TDI on devices not requiring a TEST signal.

  • Page 82: Replicator Application Schematic

    Hardware Setup www.ti.com Figure 2-1. Replicator Application Schematic JTAG Programming Hardware and Software Implementation SLAU320Z – July 2010 – Revised July 2017 Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...

  • Page 83: Host Controller Or Programmer Power Supply

    JTAG access fuse. While the fuse is being programmed, a peak current of 100 mA can flow through the TEST or TDI input pin (see the corresponding target MSP430 device data sheet). When using a target system that is powered locally, the V level from the target device should be connected to pin 2 of the JTAG connector that supplies the I/O voltage translator in the REP430F.

  • Page 84: Slau320Z – July 2010 – Revised July

    Appendix D: Universal Bootstrap Loader Interface Board: Operational amplifier IC2 must be replaced with TL062D or equivalent type. The following is a summary of changes in former revisions of the Programming a Flash-Based MSP430 Using the JTAG Interface application report (SLAA149).
  • Page 85 SBWTCK" in the first paragraph in Section 1.2.3.1, Basic Timing ........ • Added MSP430FR2000 and MSP430FR2100 to Table 1-16, MSP430FRxx JTAG Features SLAU320Z – July 2010 – Revised July 2017 Revision History Submit Documentation Feedback Copyright © 2010–2017, Texas Instruments Incorporated...
