ibaFOB-PlusControl

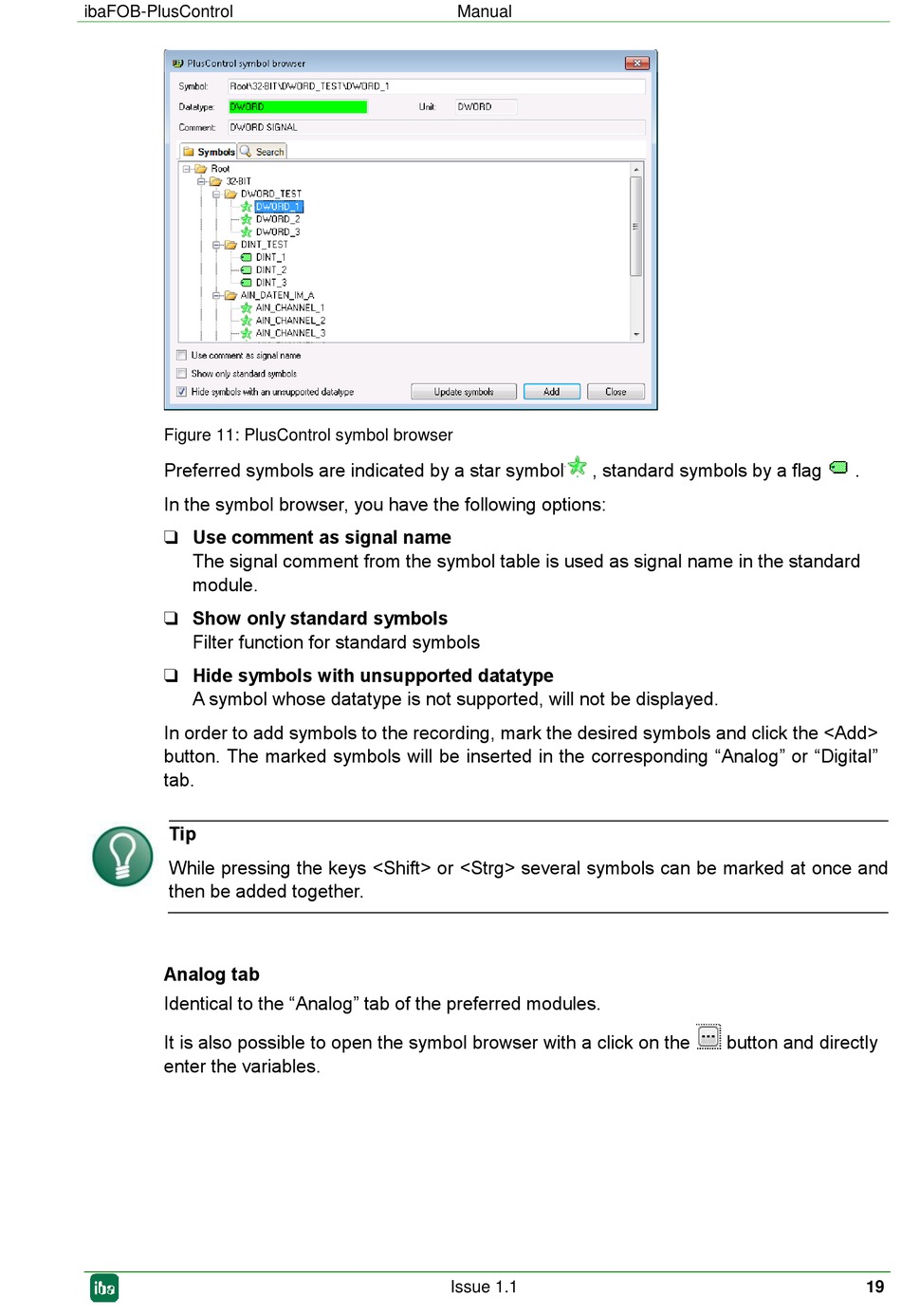

Figure 11: PlusControl symbol browser
Preferred symbols are indicated by a star symbol
In the symbol browser, you have the following options:
Use comment as signal name
The signal comment from the symbol table is used as signal name in the standard
module.
Show only standard symbols
Filter function for standard symbols
Hide symbols with unsupported datatype
A symbol whose datatype is not supported, will not be displayed.
In order to add symbols to the recording, mark the desired symbols and click the <Add>
button. The marked symbols will be inserted in the corresponding "Analog" or "Digital"
tab.
Tip
While pressing the keys <Shift> or <Strg> several symbols can be marked at once and
then be added together.
Analog tab
Identical to the "Analog" tab of the preferred modules.
It is also possible to open the symbol browser with a click on the
enter the variables.
Manual
, standard symbols by a flag
Issue 1.1
.
button and directly
19
