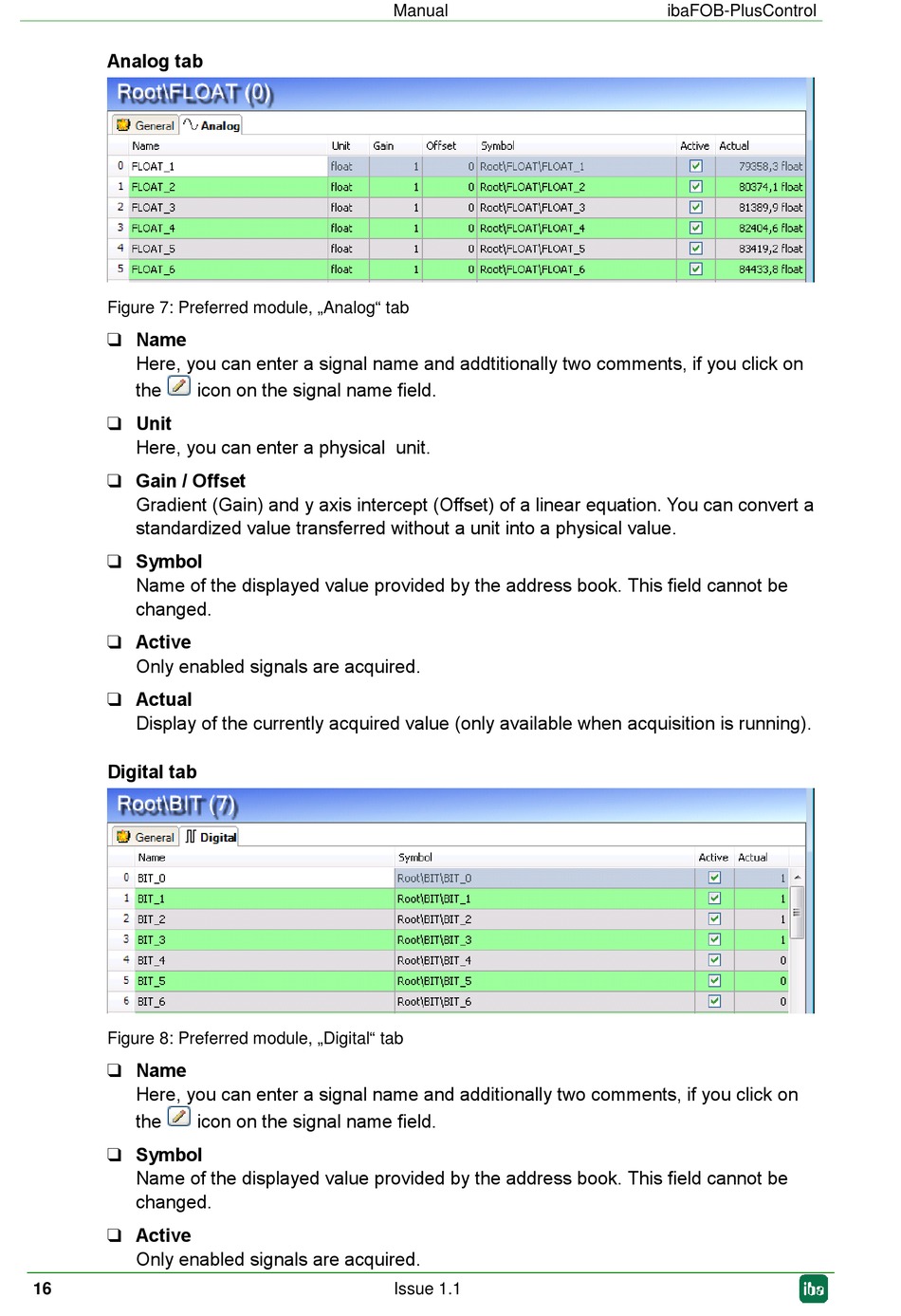

IBA ibaFOB-PlusControl Manual page 16

Analog tab
Figure 7: Preferred module, „Analog" tab
 Name
Here, you can enter a signal name and addtitionally two comments, if you click on
the icon on the signal name field.
 Unit
Here, you can enter a physical unit.
 Gain / Offset
Gradient (Gain) and y axis intercept (Offset) of a linear equation. You can convert a
standardized value transferred without a unit into a physical value.
 Symbol
Name of the displayed value provided by the address book. This field cannot be
changed.
 Active
Only enabled signals are acquired.
 Actual
Display of the currently acquired value (only available when acquisition is running).
Digital tab
Figure 8: Preferred module, „Digital" tab
 Name
Here, you can enter a signal name and additionally two comments, if you click on
the icon on the signal name field.
 Symbol
Name of the displayed value provided by the address book. This field cannot be
changed.
 Active
Only enabled signals are acquired.
