ibaFOB-PlusControl
Configuration of „preferred modules"
7.3
General tab

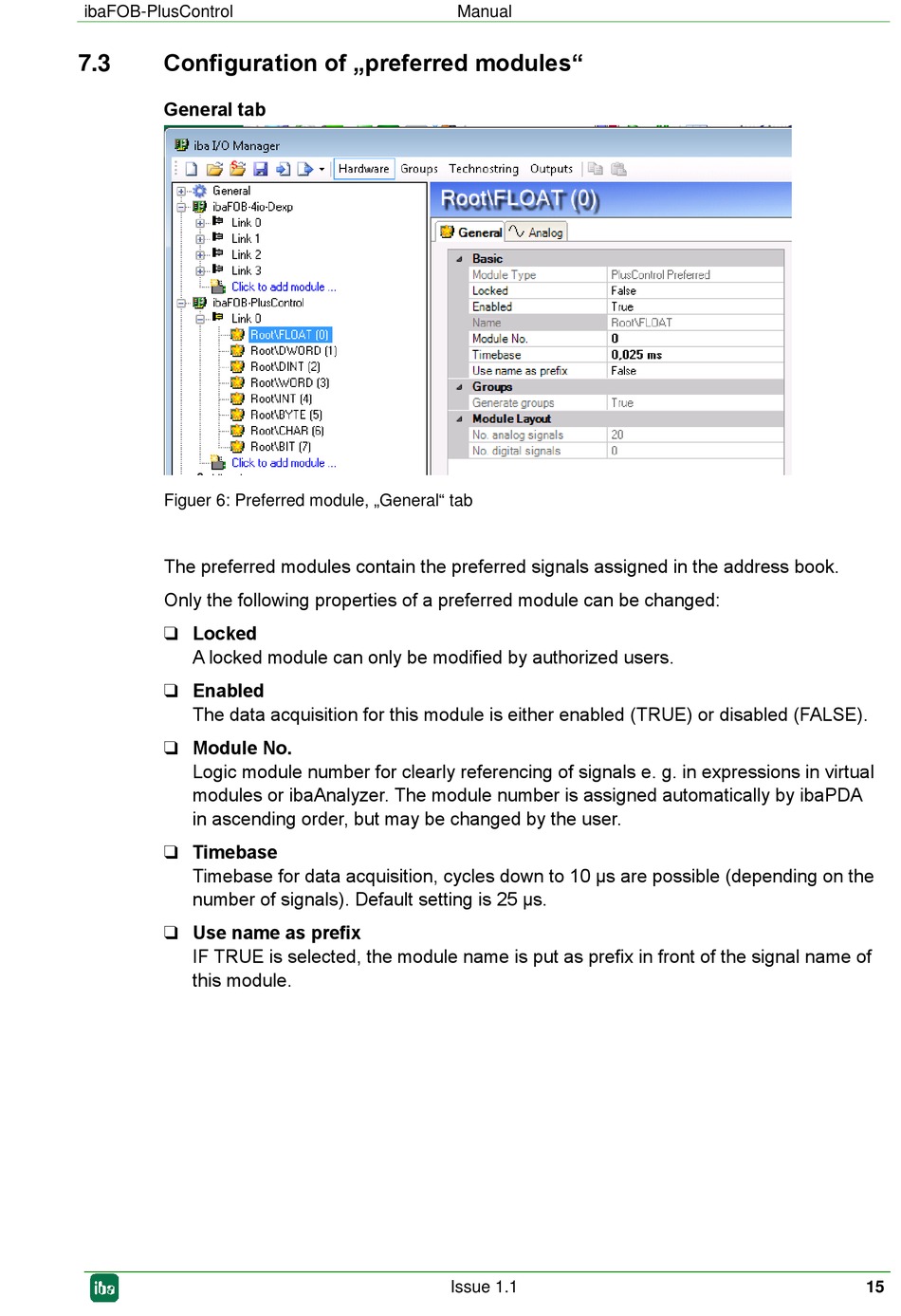

Figuer 6: Preferred module, „General" tab
The preferred modules contain the preferred signals assigned in the address book.
Only the following properties of a preferred module can be changed:
 Locked
A locked module can only be modified by authorized users.
 Enabled
The data acquisition for this module is either enabled (TRUE) or disabled (FALSE).
 Module No.
Logic module number for clearly referencing of signals e. g. in expressions in virtual
modules or ibaAnalyzer. The module number is assigned automatically by ibaPDA
in ascending order, but may be changed by the user.
 Timebase
Timebase for data acquisition, cycles down to 10 µs are possible (depending on the
number of signals). Default setting is 25 µs.
 Use name as prefix
IF TRUE is selected, the module name is put as prefix in front of the signal name of
this module.
Manual
Issue 1.1 15
