6.1.6 Entry of the determined interface / port address in
WinPCNC

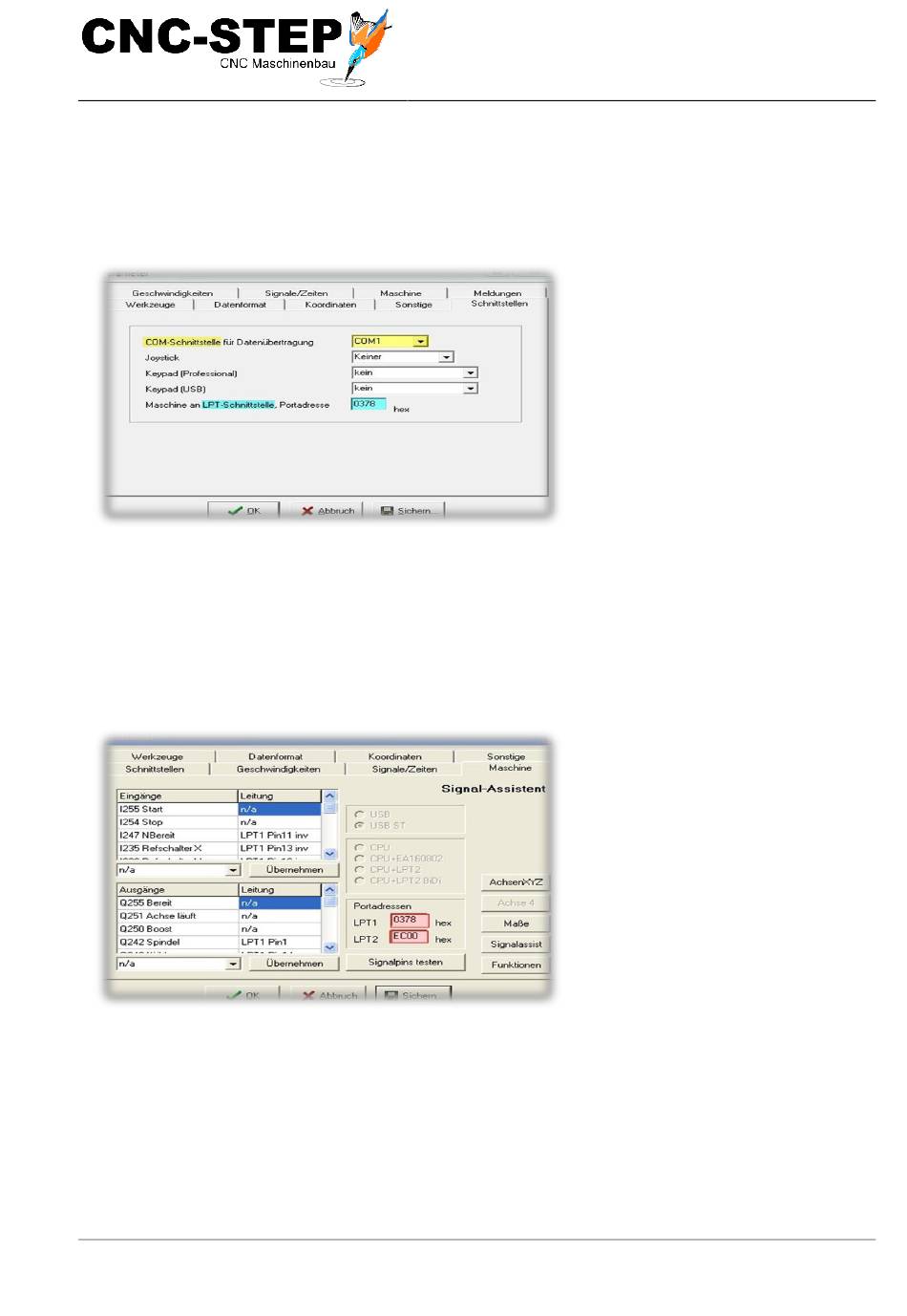

The determined values can now be entered in WinPCNC.
In the variants Light and Economy, the identified port address (blue) must be entered.
6.1.7 Entry LPT2 port (only Economy )
If you need more inputs and outputs for machine extensions, you can use the second LPT port.
This must be entered for the economy version in WinPCNC.
For the variants USB and professional this is not necessary!
The LPT1 port address you have already registered. (s. above) The LPT2 port address, you must
enter, under Parameters - machine- signal Assistant .
Caution:
After each parameter setting in WinPCNC Always press the "Save" button.
CNC-STEP e.K. ▪ Siemensstrasse 13-15 ▪ 47608 Geldern ▪ Germany
Support: +49 (0)2831/91021-50
Quick Start Guide
T-Rex Series
For professional the correct COM
port (yellow) must be selected.
